Hi everyone,

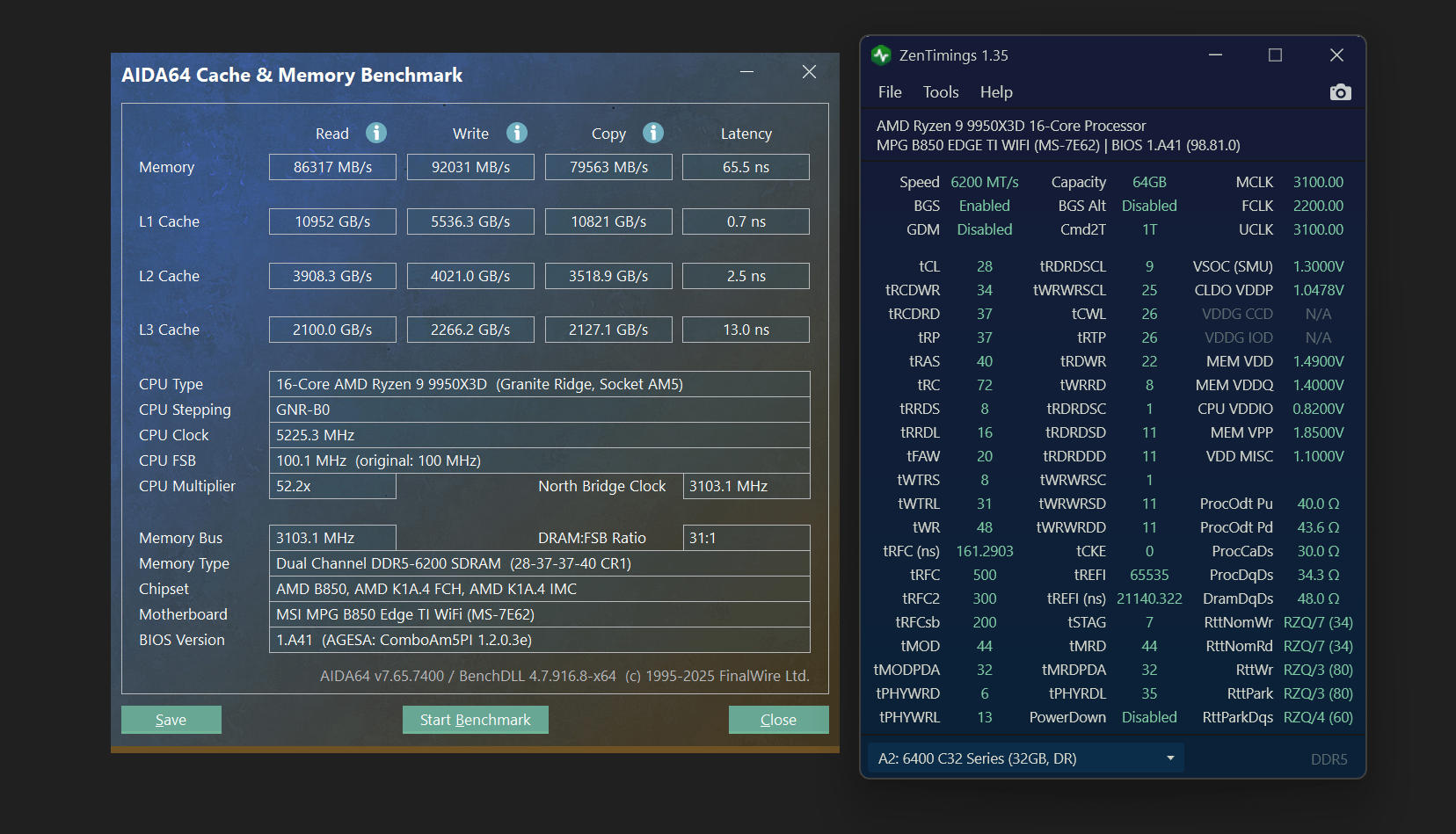

I'm looking for some help with subtimings. Unfortunately, there isn't much reference material out there, especially for 2x32GB M-die on the newer chips. Also, ZenTimings shows VSOC and VDDIO incorrectly, it's actually set to 1.22 and 1.4V.
Thanks in advance!
1 Comment
do u have legacy mode/latency killer activated ? ur aida latency is kinda to low.
try
RRDL 8
FAW 32
WTRS 4
WTRL 16
booth SCl atleast 8 better 6/5 or if ur lucky 4
RDWR 16
WRRD 2 or maybe 1
RDRDSD/DD 9
WRWRSD/DD 9
sync ur PHYRDL
try nitro 1/2/0 or atleast 1/2/1
ur RCDWR can also go 12-16
is ur vsoc capped at 1.22 at 6200? if not try to lower it. 1.15~ should be not inpossible. if it can go below 1.18 u should consider 6400 with nearly same settings. maybe higher RFC
