the error code and my temperatures ( i lowered vdd and vddq to 1.47 tho)
i always get the same error code at the same time

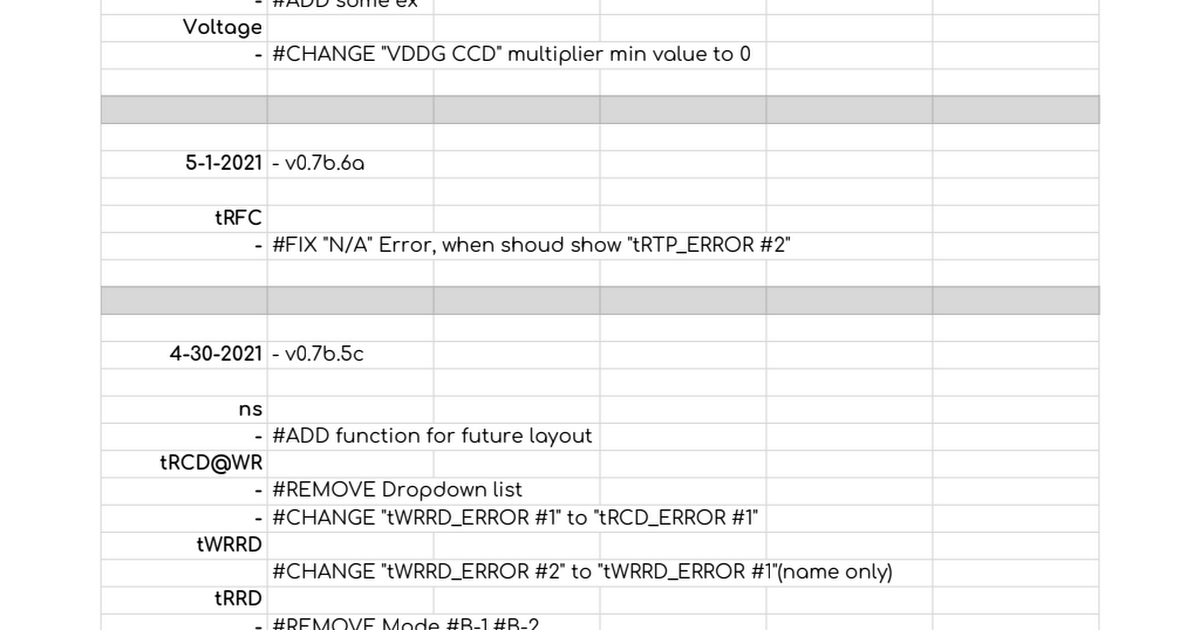

this is what this google sheet (https://docs.google.com/spreadsheets/d/1cJmhO62WHPLNKGBtsJV3BjdL-dcfJJeyhdSAoJmuzJE/htmlview#) says about the error 3:
Processor controller freq, voltage, CWL
mirrormovie and mirrormovie128, in this case, the error itself will be detected at startup Refreshstable.
(the beginning of any Simple Test)
id appreciate any help that can solve my problem
4 Comments
try 1.55vdd and vddq
try
RAS 50
RC 88
booth scl 8
vddp 0.95-1.05 start with 1.05
let ur VDD on 1.5 but go down with vddq/io to 1.4
check ur nitro settings if u worked with that. 2/3/1 is “normal” and can be tuned later.
check if ur curve is tuned if yes denable it. put pbo on auto
also make sure u have a-die. lower ur RFC to 180 ns while finding out whats the issue.
could also be ur voltage is too low (vdd) when temperature rises u need more voltage. i know that will rise temperature but it will stabilize. maybe put a fan on the sticks. 48c after 8 minutes is kinda high
Don’t set TM5 to stop after a single error, the failure pattern is important
Use 1usmus’ error diagnosis spreadsheet to help you out
Too tight tRFC is a possibility on M-die, but you might be better off setting CL30, dropping the voltage and tuning your other timings instead, RRDS and SCLs
Everything seems good, I think your cpus ram controller can’t do 6200 mhz.
