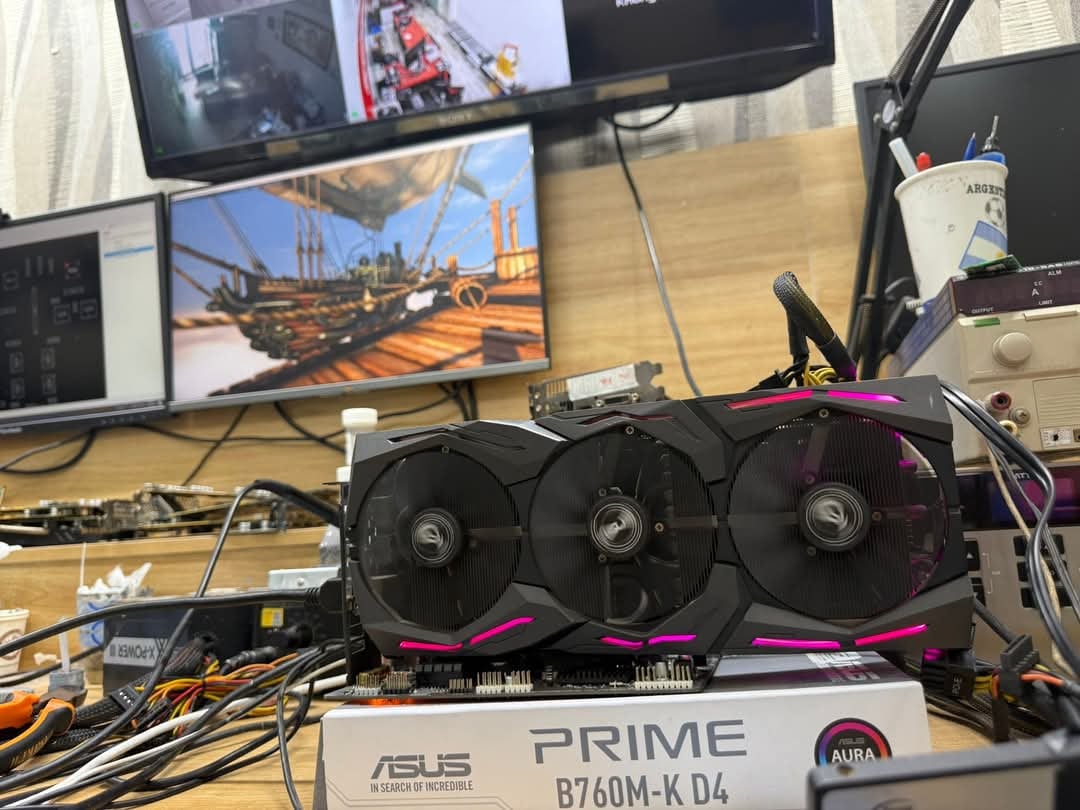

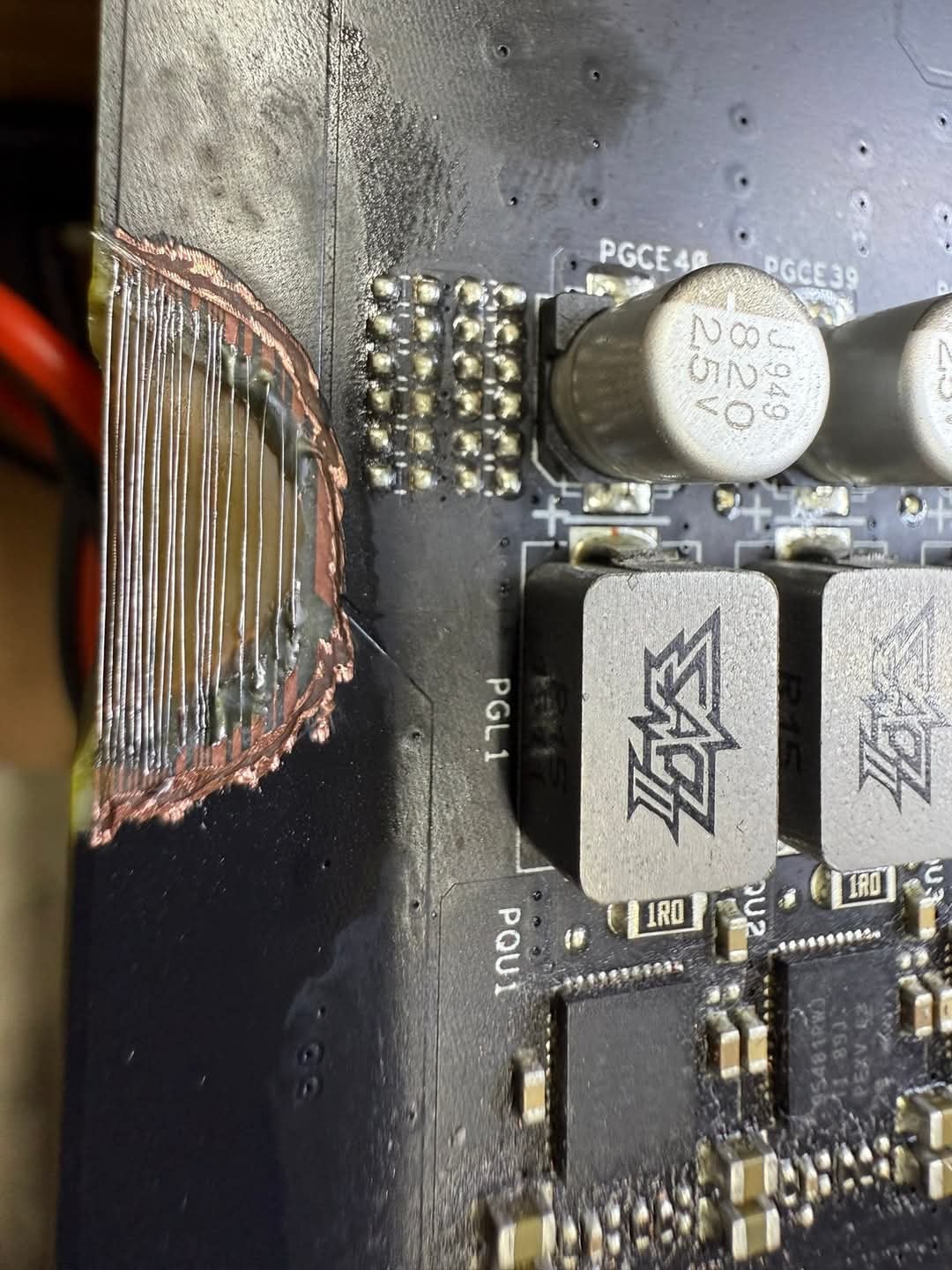

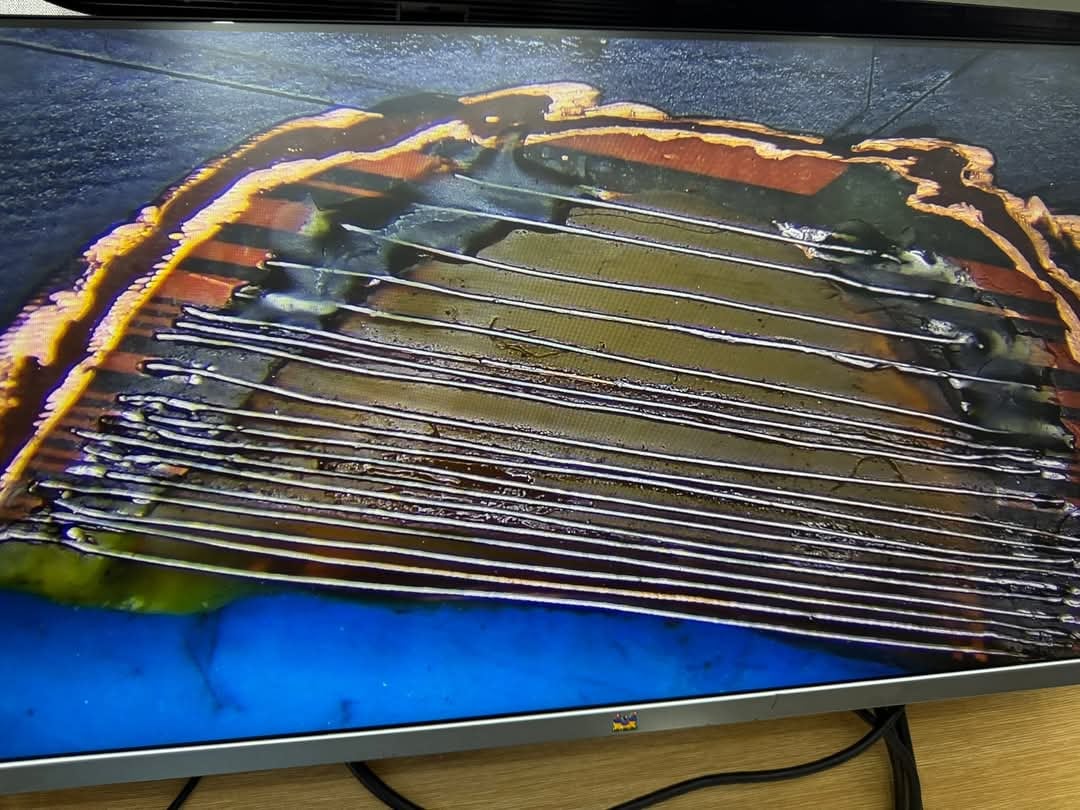

Story: This gpu was chipped, causing interference, flickering… and it took 2 hours to connect each copper wire. It looks like a harp, but luckily it still works fine.
urohpls
Lotta people here won’t understand what went into this. Been a microsoldering tech for almost a decade and that’s a motherfucker of a job to do
PixelCortex
Absolute madlad. You have my eternal respect. I would have taken one look at the broken traces, cry a little bit, and throw it in the trash.
Do you plan on reinforcing it?
Pacu99
Holy hell that’s impressive!
Ostey82
What happened to it in the first place?
KazefQAQ
Ok, 2 questions
1. What happened to the Mobo, it’s missing a whole chunk of PCB
2. How the hell did you manage to solder those traces back, this is some next level type of shit
retro-gaming-lion
As a fellow electronics repaier, I hail you!
EastLimp1693
That’s strangest ukulele I’ve seen so far
gatsu_1981
Ugly? What are you talking about? I repaired copper traces just a couple of times (screwdriver on motherboard, old story) and that’s a fucking good job.
You just created connections out of nothing.
Now put a greaseproof baking paper behind that, put a little of epoxy resin, another oleated sheet in the front and it will give structure to your job
Kalahi_md
Yeah, this guy fucks. Respect!
pepushe
A true GPU surgeon right here, holy fuck
blahdash-758
Greatest technician that’s ever lived? Is this your reddit?
qu38mm
This vs throwing it away, it’s amazing work…and who’s going to see it afterwards. Very impressive if you ask me 😛
VO-Fluff
I dont even do microsoldering myself, just watch the pros do it on youtube as I find it super interesting & even my eyes widened at the second picture. Very nice job to get it working again.
Dark_Fox_666
Bro this is clean af great job
ElectroMoe
If whatever you do for a living doesn’t work out there’s always trauma surgery as a career path option OP.
Alucard0_0420
Ugly?
That’s beautiful as heck.
Great job!
Niswear85
Epoxy that
BlazeBuilderX
you have my absolute respect, must have taken HOURS to do that, maybe seal it in something like resin or glue?
Looks better than my soldering lol. Tho this is much smaller and on flex cable. And yes this worked with no problems. Also added solder mask to prevent shorting.
MrStoneV
If you are kinda new to soldering, I take of my hat. Holy shit is that a crazy accomplishment.
Ive got skills in so many things, but this beyoooond my skill. from my experience I couldnt do that. Tell me how did you do that? Im seriously wanting to understand this, did you have a micro solderer and are you by any chance a heart or brain surgeron?
jllauser
Incredible work, but I’m going to recommend you avoid biting your motherboards again in the future.
blood_omen
Hope you reupped on your fire insurance
minion71
wow, amazing job !! The dog took a bite ???
MissionApollo7
Are you a fucking wizard?
Waffenek
Intel called, they want you to hand assemble transistors for their new 2nm process.
Munazzam
You can trying hot glue. I use it to cover naked wires and works a charm. And best part is that I can mold the hot glue into the desired shape by wetting my fingers and then molding so that it looks nice
Nabhan1999
If god gave me this level of patience and fine motor control, I’d still be called a fucking scrub in CS lobbies
krispychik3n
You have expensive taste in food.
babis8142
Bro this isn’t revival it’s necromancy
Gregory85
Necromancy is frowned upon as a revival technique, but it does work.
