# 9800X3D+Ram Seeking Undervolt/Overclock Advice #

Hey 🙂
I’m not trying to push my system to its absolute limits, but I want to ensure I’m getting the performance I paid for! 🙂

System Specs:

• Motherboard: ASUS TUF X670E Plus WiFi
• CPU: 9800X3D
• RAM: G.Skill Flare X5 32GB (2x16GB) 6000MHz CL36 1.35V (F5-6000J3636F16GX2-FX5)
• GPU: Gigabyte AORUS Elite RX 9070 XT
• Cooler: Cooler Master MasterLiquid ML240 AIO

Tuning Settings:

• PBO: +200MHz
• Curve Optimizer (Core-Specific):
  • -35 : -30: -35: -30 : -30 : -30 : -20 : -20

Benchmarks/Data:

• Cinebench R23: ~23,000 (multi-core) (Not best obviously)
• 3DMark Time Spy: https://www.3dmark.com/spy/54842964 (CPU score can be higher?)

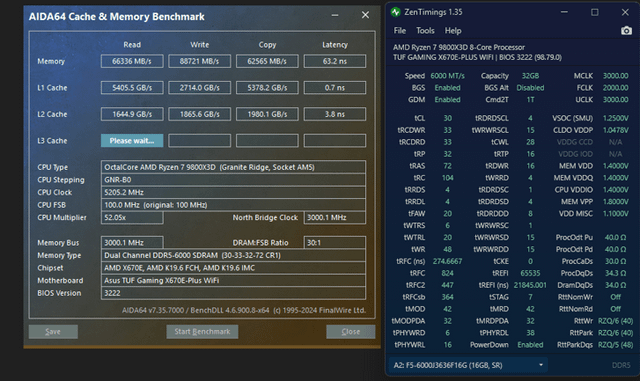

• ZenTimings and Aida Benchmark: [Attached Image]

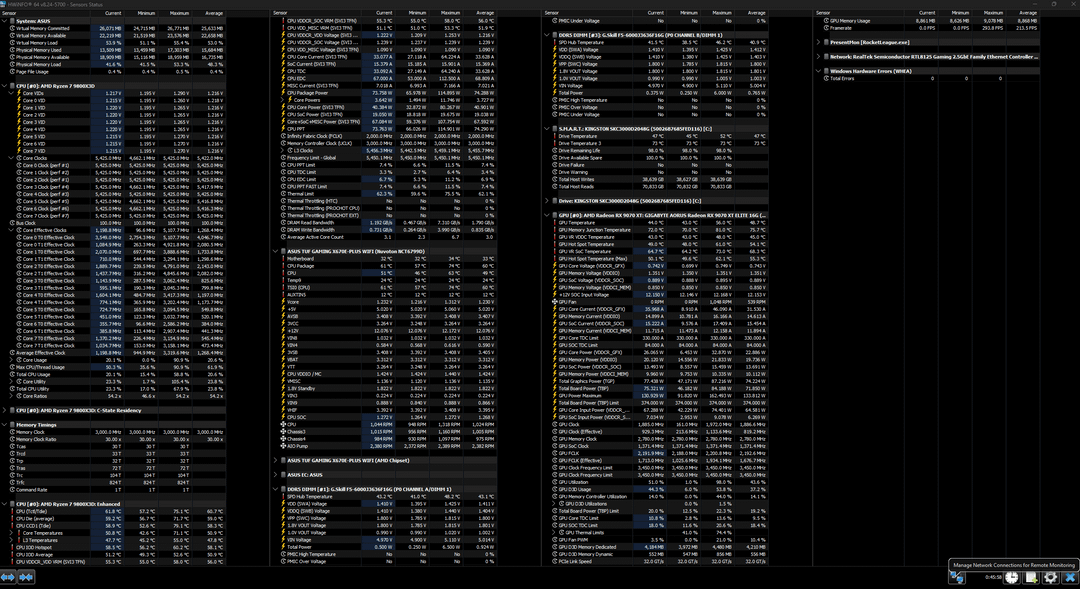

• HWiNFO64 Log: [Attached screenshot during 1-hour gaming session]

(Currently passed 8 hours of Prime95 and an hour OCCT testing-system seems fully stable)
I’m not very experienced with overclocking, to be honest, still learning process.
I have almost no knowledge about voltage adjustments, so I’m open to any suggestions for optimizing my RAM or CPU further.
Huge thanks to everyone who takes the time to review and share advice!

(Special thanks to u/EmuIndividual5885 for helping me for these results on RAM and CO settings)
