Graphics card should be in the top PCIe slot as the other person said. If it doesn’t fit because the AIO hoses, you can flip the radiator to be tubes up. It’s not as optimal as tubes down technically, but it’s still fine and your PC will be better served that way if it’s the only way the graphics card fits in the correct slot.
SparkleCharmGal
bad position for your aio (maybe you chased the orientation of the logo?), please use the upper slot or primary slot for gpu just imagine you still need to insert a 6pin for the gpu and you need to put the other pin at the bottom part for usb, pin assignment, audio and so on
clyvn
Wait, is it good if you just rotate it 180°?
Hattix
GPU is in the wrong port.
How is air getting into that case? This is *strongly* negative pressure.
Posiris610
I recommend you check your motherboard manual to see if the bottom PCI-E x16 slot is indeed a full x16 slot with not compromises. Usually there are caveats and using the top slot closer to the CPU is ideal. For this reason, I recommned flipping the radiator so the lines are on top; it’s a still a fine position.
I also recommend turning the fans on the AIO around so they are sucking air in from the front of the case. In your current pictures you have all of your fans pulling air from inside the case and blowing it all, which is going to create a vacuum of sorts.
Nifferothix
Also route these fan cables behind the case
ObiWangKeBloMe
Aio fans are backwards.
fullofclots
All that front space buy 3 more fans and push pull that aio
Brawndo_or_Water
Put your fans in the front and the other way, right now you are pushing air out, should be pulling air in.
Bright-Efficiency-65
Swap the aio and the top fans. Exhaust the aio out the top since hot air rises. Intake on the front
blufeb95
That’s the proper way to mount an AIO, you want to make sure that the CPU block always stays primed, so as long as at least some of the radiator is above the block you’re usually fine, at least on the most typical AIO designs with the pump in the block like yours. And there’s a couple reasons why you usually want to only use the top slot for the GPU, one it’s generally the only slot that will run at 16x and is connected straight to the GPU, many times secondary slots may only be electrically 4x and connected to the chipset or if they are connected to the CPU using the bottom slot automatically bifurcates the lanes between the top and lower slot reducing the unused top slot to 8x and only allowing your GPU to run at 8x in the bottom slot.
professor_simpleton
Rotate you CPU block 90 deg counter clockwise this will give you way more slack and clearance on the tubing. You logo will be sideways but who cares.
Somebody_160
Kinda funny your aio is more expensive than your gpu.
theofficialburrito
I have the same pump, make sure you flip fans on it to intake air. You want air coming into the front and out of top and back. Also GPU top goes in the slot as others have mentioned
Lala95LightingX
may i ask, why do you have a 360 aio and a ROG Strix board with a GTX 1060?
bro-guy
Flip the radiator around and put the gpu on the first slot
CodeMonkeyX
I would put the cabled on the top. Then you can put the GPU in the correct slot.
sparkybc
No up top
Competitive_Lack1845
GPU needs to come up to the closest spot to the CPU, and the Rad needs to be flipped the other way around, then you’ll be all set
dwolfe127
Can you not see that the GPU is even not plugged in? Regardless of the wrong slot? Troll post is trolling.
Zedian21
Personally I would have the tube’s at the top. If bubbles get to the bottom, they will plug up the CPU mount and then kill the motor. Big IF though.
N7LP400
It’s good but it’s not the best, also I would change the GPU position to the top slot, if the AIO tubes are in your way consider reinstall the CPU block 90 degrees to the right
25 Comments

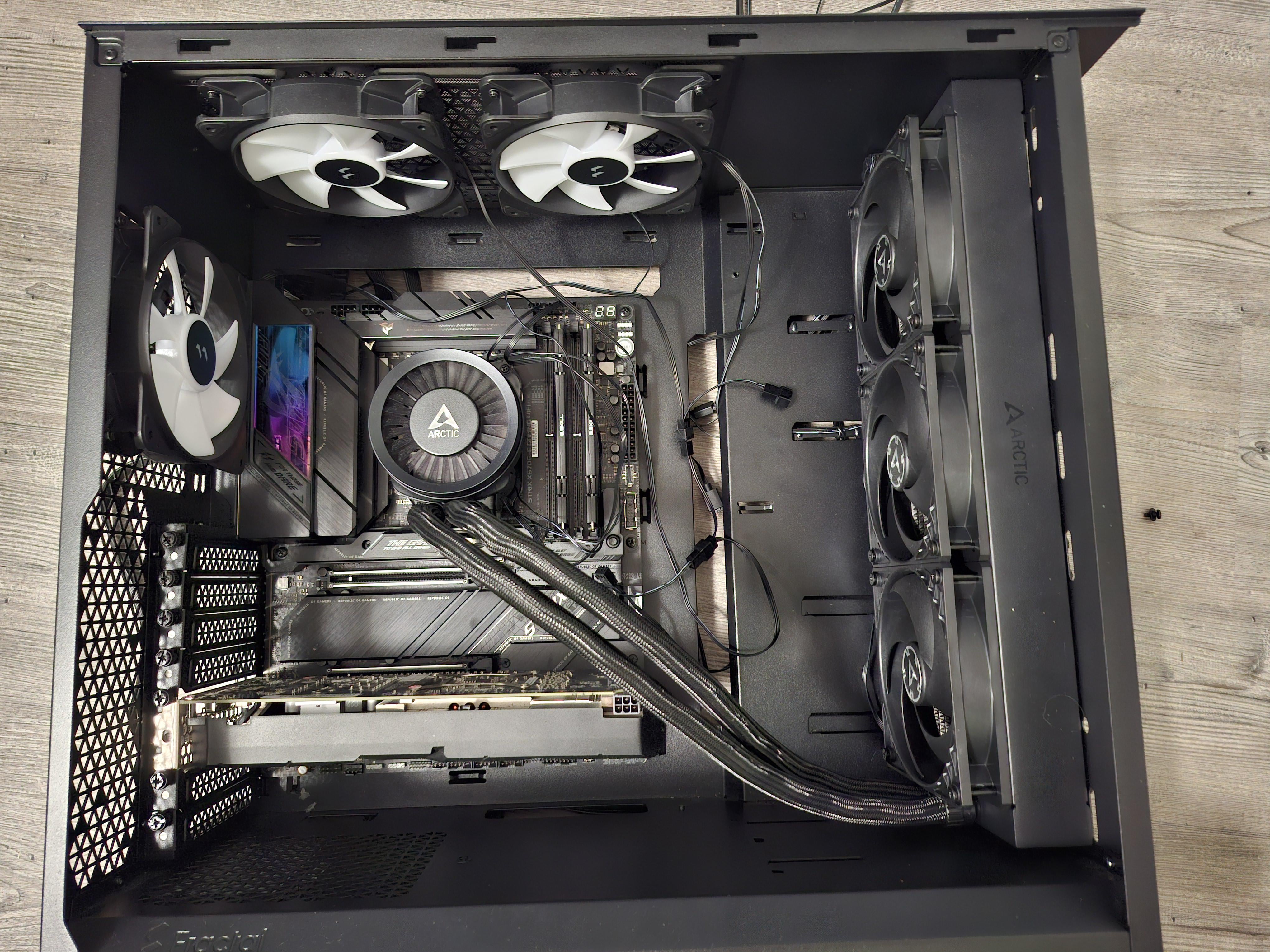

I just put the parts in my pc case after booting it outside the case, and i wanna know if this aio position is good
AIO position is fine, GPU position is BAD
GPU needs to be in the primary PCIe slot (top slot)
https://preview.redd.it/q2j1tudgyeqd1.jpeg?width=320&format=pjpg&auto=webp&s=7cf6f7680e2d1fc9b19ba7e25a58fad49a626775
Graphics card should be in the top PCIe slot as the other person said. If it doesn’t fit because the AIO hoses, you can flip the radiator to be tubes up. It’s not as optimal as tubes down technically, but it’s still fine and your PC will be better served that way if it’s the only way the graphics card fits in the correct slot.
bad position for your aio (maybe you chased the orientation of the logo?), please use the upper slot or primary slot for gpu just imagine you still need to insert a 6pin for the gpu and you need to put the other pin at the bottom part for usb, pin assignment, audio and so on
Wait, is it good if you just rotate it 180°?
GPU is in the wrong port.
How is air getting into that case? This is *strongly* negative pressure.
I recommend you check your motherboard manual to see if the bottom PCI-E x16 slot is indeed a full x16 slot with not compromises. Usually there are caveats and using the top slot closer to the CPU is ideal. For this reason, I recommned flipping the radiator so the lines are on top; it’s a still a fine position.
I also recommend turning the fans on the AIO around so they are sucking air in from the front of the case. In your current pictures you have all of your fans pulling air from inside the case and blowing it all, which is going to create a vacuum of sorts.
Also route these fan cables behind the case
Aio fans are backwards.
All that front space buy 3 more fans and push pull that aio
Put your fans in the front and the other way, right now you are pushing air out, should be pulling air in.
Swap the aio and the top fans. Exhaust the aio out the top since hot air rises. Intake on the front
That’s the proper way to mount an AIO, you want to make sure that the CPU block always stays primed, so as long as at least some of the radiator is above the block you’re usually fine, at least on the most typical AIO designs with the pump in the block like yours. And there’s a couple reasons why you usually want to only use the top slot for the GPU, one it’s generally the only slot that will run at 16x and is connected straight to the GPU, many times secondary slots may only be electrically 4x and connected to the chipset or if they are connected to the CPU using the bottom slot automatically bifurcates the lanes between the top and lower slot reducing the unused top slot to 8x and only allowing your GPU to run at 8x in the bottom slot.
Rotate you CPU block 90 deg counter clockwise this will give you way more slack and clearance on the tubing. You logo will be sideways but who cares.
Kinda funny your aio is more expensive than your gpu.
I have the same pump, make sure you flip fans on it to intake air. You want air coming into the front and out of top and back. Also GPU top goes in the slot as others have mentioned
may i ask, why do you have a 360 aio and a ROG Strix board with a GTX 1060?
Flip the radiator around and put the gpu on the first slot
I would put the cabled on the top. Then you can put the GPU in the correct slot.
No up top
GPU needs to come up to the closest spot to the CPU, and the Rad needs to be flipped the other way around, then you’ll be all set
Can you not see that the GPU is even not plugged in? Regardless of the wrong slot? Troll post is trolling.
Personally I would have the tube’s at the top. If bubbles get to the bottom, they will plug up the CPU mount and then kill the motor. Big IF though.
It’s good but it’s not the best, also I would change the GPU position to the top slot, if the AIO tubes are in your way consider reinstall the CPU block 90 degrees to the right
