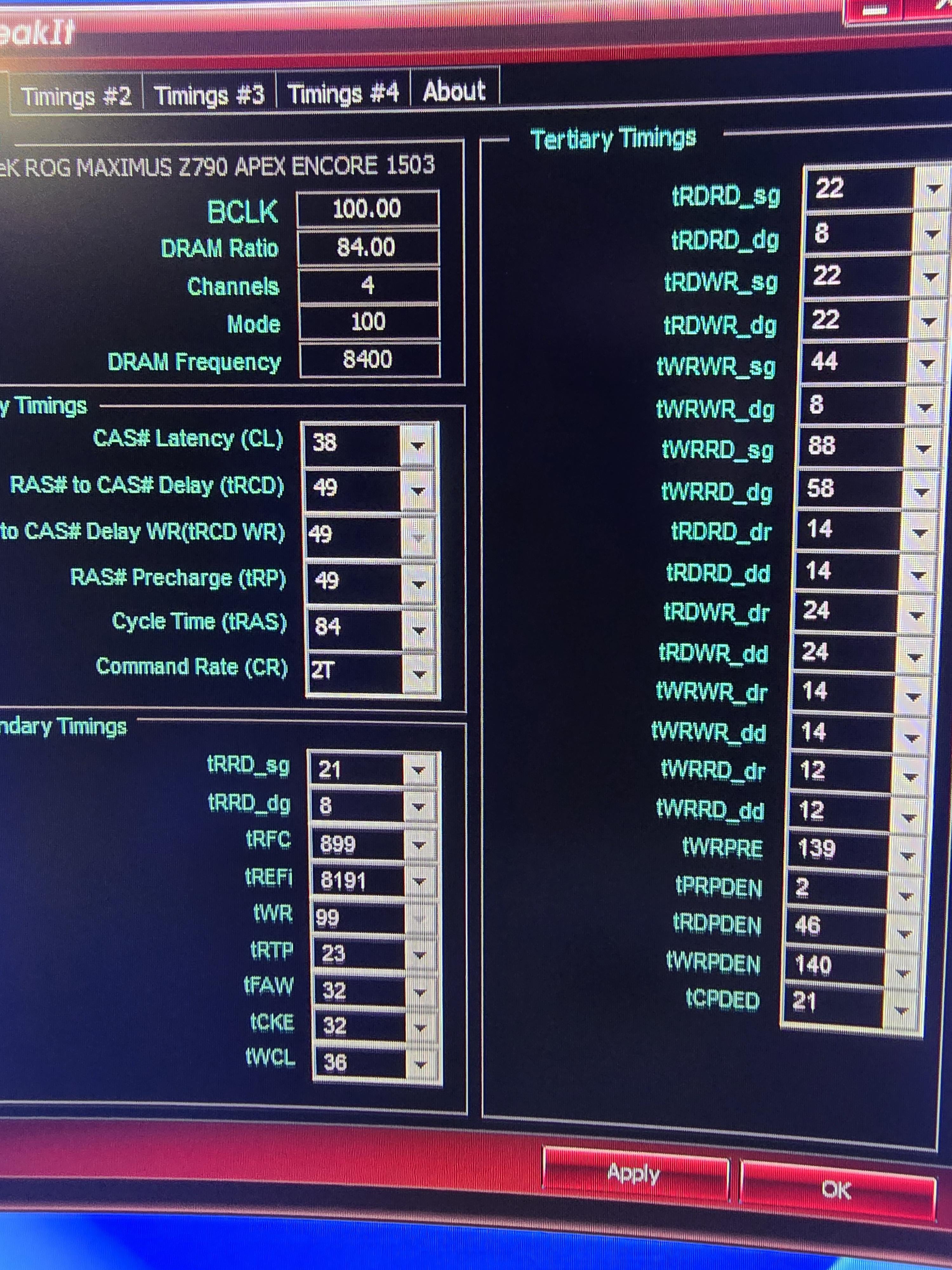

Okay, I've got DDR5 24×2 up to 8400 stable so far at the timings in the screenshot, will pass ycruncher vt3, tm5 and karhu, I've dialed in the voltages needed for stable 8400, way too much but I'm on water cooled RAM, now I'm working on timings, this is a newer M-Die 3GB module sticks TeamGroup kit. What timings can I tweak the easiest and try and get lower besides trfc and trefi?
2 Comments
whats your CPU overclock at ? also can you share voltages?
Should be easy timings to do for 3GB M-Die:
– tCL can do 36 if voltage is high enough (~1.55v)
– tRCD WR can probably go to 20 or lower
– tRAS can go to 40 or lower (M-Die doesn’t like too low tRC)
– tRRD_sg to 12
– tRRD_dg to 8
– tRFC can go to 750 or lower
– tREFI can easily go to 131k with water cooled
– tWR can go to 20 or lower depending on tWCL (will also push tWRPRE and tWRPDEN way lower)
– tRTP to 12
– tWCL can go to mid 20s
– tWRWR_sg should be 16
– tRDRD_sg should be 16
