installed ASUS EZ selector card. By default, the card
is set for a single graphics card. To use two graphics
cards on this motherboard, you must first set the
selector card to Dual Video Cards”
Vegetable_Safety
Man, been a HOT minute since I’ve seen someone use a zalman cooler
[deleted]
To upgrade memory of your CPU cooler
Year_Popular

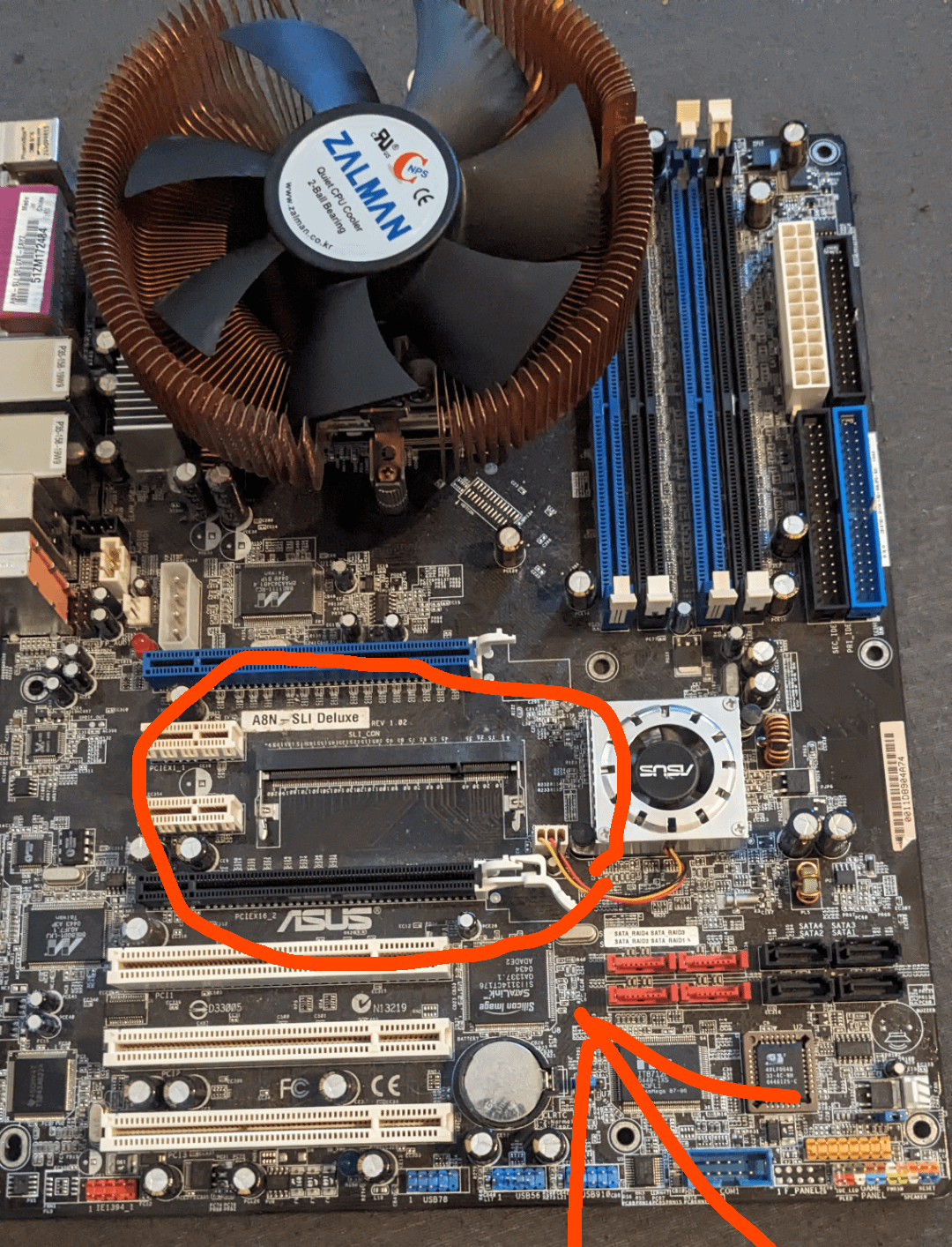

I read the title as “why does my motherboard have a sodium slot” I’m like oh why does it I’ve never heard of that before
Turbulent_Echidna423
Zalman> Thermaltake
Nika299p
lol, that’s an sli switch, without it your motherboard won’t work, that’s how sli was done in 2004
ilikebarbiedolls32
How old is this thing if it has PCI slots
qam4096
As per others there’s a PCIE card that should slot in there which physically changes the paths from a single 16x to dual 8x/8x depending on which side is inserted.
iamgarffi
Love how this Zalman casually overlaps with dimms.
I guess low profile memory for you.
TinkeNL
Zalmann cooler, old-ass Molex connector, IDE connections, Floppy disk connector. Yeah that’s some ancient history right there!
Daiesthai
That sodimm slot is actually to enable SLI on that motherboard. Note the SLI labelling.
JoeyDee86
It’s where you can clip paper towels so you can more easily soak up the blood after you inevitably cut yourself on a sharp copper Zalman cooler lol
Southern_Country_787
Salt.
aurizz84
Anyone ever used E-Sata? I never found use for that port in 25 years…
PROX_SCAM
you have IDE slots, it’s old…
FoodeatingParsnip
had an msi sli k8n diamond myself. i had such high hopes for Sli.
imperialfragments
There is a switching card that belongs there that designates running one video card or running 2 cards in SLI mode. Not sure this board will work without the SLI switching card
diesel5543
Ngl I read sodimm as sodium and got confused.
DiabloG1
As others have said this is to select between x8 x8 and x16 x1 for the pcie slots.
In other news, that looks like the original fan for the northbridge, these often failed.
My A8N-SLi Deluxe will turn 20 next year. Upgraded to vr running at almost the top end of what it could at the time, with 4GB 400MHz DDR memory, 120GB SSD, (replaced the 120GB HDD) 4400×2 athlon, 10Gb networking (absolutely pointless, poor CPU can’t keep up, and an Nvidia 1030 GT (about the worst GPU that’s modern – originally had two 7800GTXs, but win 10 doesn’t have sli drivers this old.
Top tip, if you ever want to experience CPU bottlenecks, this is worse than an atom powered stick PC.
Little-Equinox
That’s not a SO-DIMM, that’s a slot for stuff like PCIe cards for SSDs just to give an example, Asus use to do something similar with RAM slot look-alike, where they put in a riser so you could have like 2 SSD’s in 1 slot.
Milna_M
It is not sodim slot.
It is for ASUS EZ selector card connector (144-pin SLI_CON).
This connector is for the ASUS proprietary ASUS EZ selector card that
allows you to set the SLI mode to either Single Video card or Dual Video cards.
halrulez
Here is a link to the support page for the motherboard. It has the manual.
31 Comments
Probably in case cpu cooler gets in the way for desktop memory.
It doesn’t. That is a slot for a SLI connector.
It’s to tell your motherboard whether it should run the PCI-e lanes at x8/x8 or x16.
[https://www.anandtech.com/show/1552/4](https://www.anandtech.com/show/1552/4)
It’s an SLI connector like the other poster mentioned.
It’s also from 05, like it might be time for an upgrade.
[https://dlcdnets.asus.com/pub/ASUS/mb/socket939/A8N-SLI/e2068_a8n-sli.pdf?model=A8N-SLI](https://dlcdnets.asus.com/pub/ASUS/mb/socket939/A8N-SLI/e2068_a8n-sli.pdf?model=A8N-SLI)
“Your motherboard package comes with a pre-
installed ASUS EZ selector card. By default, the card
is set for a single graphics card. To use two graphics
cards on this motherboard, you must first set the
selector card to Dual Video Cards”
Man, been a HOT minute since I’ve seen someone use a zalman cooler
To upgrade memory of your CPU cooler
I read the title as “why does my motherboard have a sodium slot” I’m like oh why does it I’ve never heard of that before
Zalman> Thermaltake
lol, that’s an sli switch, without it your motherboard won’t work, that’s how sli was done in 2004
How old is this thing if it has PCI slots
As per others there’s a PCIE card that should slot in there which physically changes the paths from a single 16x to dual 8x/8x depending on which side is inserted.
Love how this Zalman casually overlaps with dimms.
I guess low profile memory for you.
Zalmann cooler, old-ass Molex connector, IDE connections, Floppy disk connector. Yeah that’s some ancient history right there!
That sodimm slot is actually to enable SLI on that motherboard. Note the SLI labelling.
It’s where you can clip paper towels so you can more easily soak up the blood after you inevitably cut yourself on a sharp copper Zalman cooler lol
Salt.
Anyone ever used E-Sata? I never found use for that port in 25 years…
you have IDE slots, it’s old…
had an msi sli k8n diamond myself. i had such high hopes for Sli.
There is a switching card that belongs there that designates running one video card or running 2 cards in SLI mode. Not sure this board will work without the SLI switching card
Ngl I read sodimm as sodium and got confused.
As others have said this is to select between x8 x8 and x16 x1 for the pcie slots.
In other news, that looks like the original fan for the northbridge, these often failed.
My A8N-SLi Deluxe will turn 20 next year. Upgraded to vr running at almost the top end of what it could at the time, with 4GB 400MHz DDR memory, 120GB SSD, (replaced the 120GB HDD) 4400×2 athlon, 10Gb networking (absolutely pointless, poor CPU can’t keep up, and an Nvidia 1030 GT (about the worst GPU that’s modern – originally had two 7800GTXs, but win 10 doesn’t have sli drivers this old.
Top tip, if you ever want to experience CPU bottlenecks, this is worse than an atom powered stick PC.
That’s not a SO-DIMM, that’s a slot for stuff like PCIe cards for SSDs just to give an example, Asus use to do something similar with RAM slot look-alike, where they put in a riser so you could have like 2 SSD’s in 1 slot.
It is not sodim slot.
It is for ASUS EZ selector card connector (144-pin SLI_CON).
This connector is for the ASUS proprietary ASUS EZ selector card that
allows you to set the SLI mode to either Single Video card or Dual Video cards.
Here is a link to the support page for the motherboard. It has the manual.
[A8N-SLI Deluxe – Support (asus.com)](https://www.asus.com/us/supportonly/a8n-sli%20deluxe/helpdesk_manual/)
Damn, that motherboard is loaded… 8 SATA, 2 IDE, 2 Ethernet, up to 2x FireWire ports, optical audio output, up to 10x USB ports.
Idk the lighting is SODIMM I cannot see.
Nice cooler, bro!
https://preview.redd.it/zdmbm3wqgwgd1.png?width=1080&format=pjpg&auto=webp&s=fcfa33a41ed842f70643d585f099e075a7a83a74
That zalman flower cooler is old skool cool!
