Hello everyone,
I'm experiencing stability issues with my PC when it has 128GB of RAM installed. I know the system is capable of handling 4x32GB at 4000MHz, but I'm concerned there might be an issue with the voltages. The system runs fine initially, but after 2-3 days, it crashes, freezes, and fails to post. Eventually, it does post after some time.

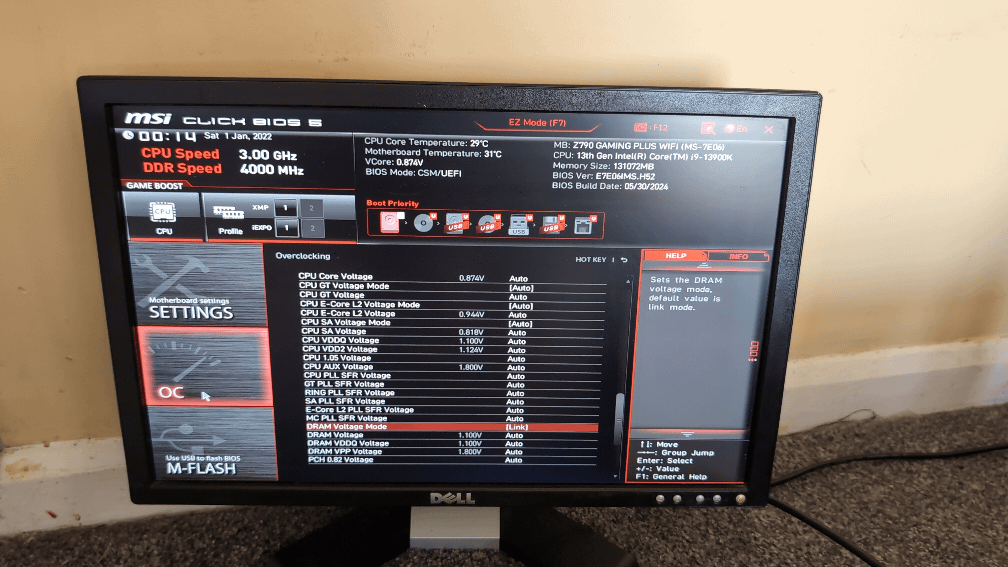

Here are the current voltage settings. They seem too low compared to other i9 13th Gen configurations I've seen. Could this be the cause of the instability? Any advice or recommendations would be greatly appreciated.
Thank you!
2 Comments
Yes your ram voltages seem low , most ddr4 run like 1.35v not 1.1v
Try to take out 2 sticks of RAM or try and lower the frequency to 3600 or 3200 MHz. See if it works.
Your current setup is hard to run for the CPU because you are running quad rank memory and that lowers the max stable frequency
