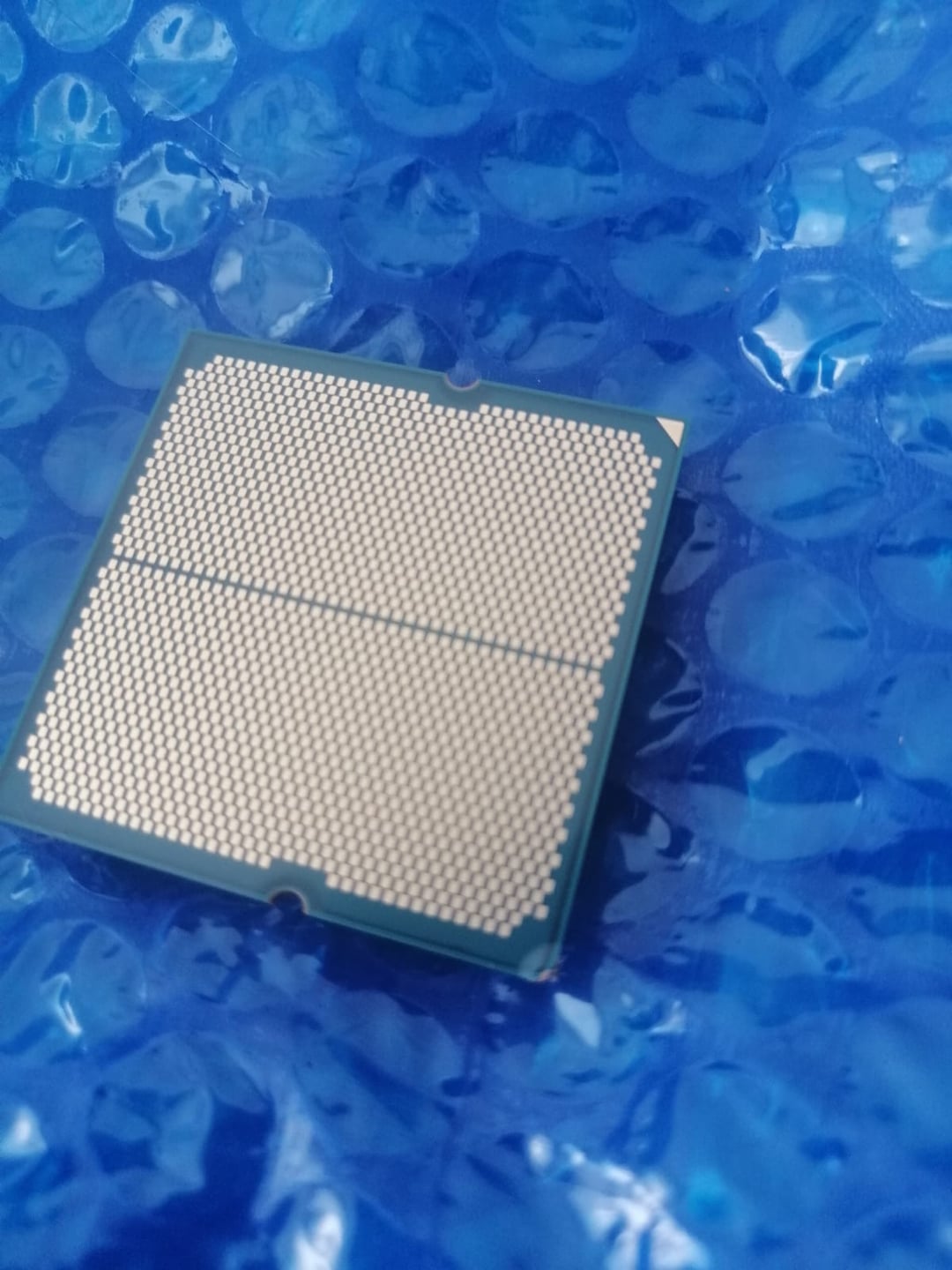

Honestly, it’s probably fine, it looks like it’s just the edge of the PCB is damaged. Also thank god you covered up the serial number, I almost got your social security number and address from that.
ToxicEvHater
Did you really cover the number on a CPU?
[deleted]
[removed]
liaminwales
Good chance it’s toast, sorry OP.
Have to ask what happened?
Richard_Howe
Where did all the pins go?
iAmGats
It looks minor, I think it’s fine. Try plugging it on a motherboard and test it.
No_Duck108
it should be fine its just a noncoductive part of the pcb thats messed up. The important parts are the pads, the resistors, and the die itself which is under the ihs all of those look fine.
Djenterson
Contacts look good, and ya know… it’s a square so.
Shove it in, should be fine.
Impossible-Sand-8265
Can you explain RMA to me?
bootes_droid
Is this one of those Ali specials I’ve been hearing about
stogetha
That QR code will have all the part info (sn,mn, etc) on it just a heads up
Evil_Rogers
I think the only possible risk would be a pcb layer that was used as a power plane shorting to a gnd plane on another layer. The light green is where the planes would have probably not been so there isn’t much damage into the dark green and visually it doesn’t look like it would have caused a short.
Biscuits4u2
Does it work? Looks ok to me.
Scizmz
Ok, so here’s my concern when I look at it. It appears that the corner was crushed. Just as another person said, the potential of a shorted out PCB layer for starters, then there’s the issue of laying it flat and making contact with all the pins. Each corner of this should lay flush in order for the pins to contact all the pads. And that bottom side isn’t flat and flush. I would in all honesty consider looking at a way of removing the damaged corner of it before plugging it in if they don’t RMA it. And I don’t mean like sand paper, I’d be looking at calling mfgs and asking how they actually cut boards like that without damaging the pcb layers. But then I’m an overly cautious type when screwing around with stuff like this.
Traditional_End_7917
*Covers manufacturing information so someone can’t RMA it*
*Leaves the DM code right next to it completely uncovered that takes you to the exact information that’s covered*
“Okay, all done. Now no one will ever get my info!”
