* -30 curve on all but the two best cores (-25) * +200mhz boost * PPT: 125W * TDC: 100A * EDC: 120A * Scalar OFF * 4,650mhz on Cinebench Multicore * 4,800mhz on OCCT large (SOC limited), 4,400mhz on OCCT small * 79.5ºC max at full load
I could increase PPT and get better values but I’m confortable with max 80ºC in my system.
1 Comment
My PBO Settings:
* -30 curve on all but the two best cores (-25)
* +200mhz boost
* PPT: 125W
* TDC: 100A
* EDC: 120A
* Scalar OFF

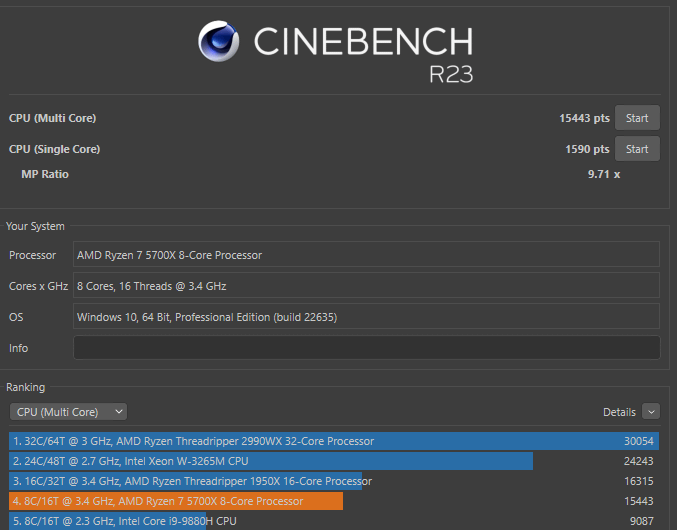

* 4,650mhz on Cinebench Multicore
* 4,800mhz on OCCT large (SOC limited), 4,400mhz on OCCT small
* 79.5ºC max at full load
I could increase PPT and get better values but I’m confortable with max 80ºC in my system.
