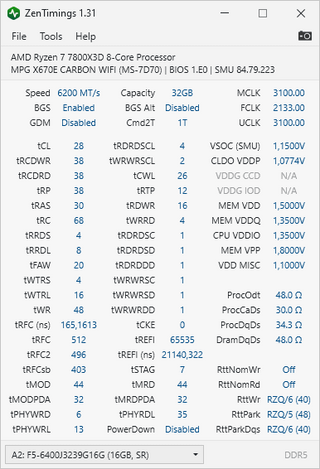

Hello everyone, please help me to improve my latency much more. Any income is welcome and really appreciated.
VSOC : 1.15v
VDD : 1,5v (can go lower to 1,48)
VDDQ : 1,35v
VDDIO: 1,35v
VDDP: 1,080v ?? Please help me improve this
VDDP CCD : Auto ( 1v)
VDDP IOD : Auto ( 1v)
Test has been done so far:
Testmem5
Karhu
OCCT
1 Comment
Looks pretty good, your trfc is pretty loose if that’s an a die kit. If it’s m die your trcd could go one tick lower probably. Also your Vddp should at least be .1 lower than your soc voltage so either raise your soc slightly or lower your Vddp. Do you get a tphydrl mismatch with gear down disabled? Can your cpu run 2200 fclk? If not I’d lower it to 2067 to keep the 1/3 ratio for a slight latency boost. Hope this helps.
