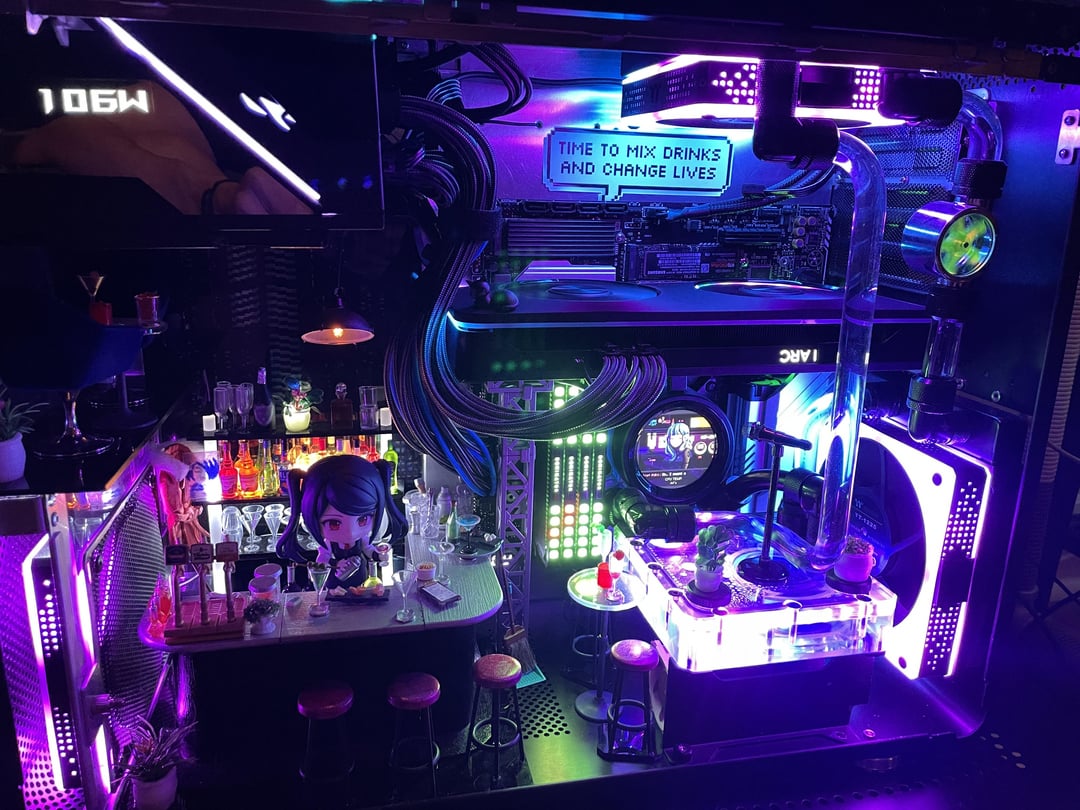

**PC:**CPU : Intel I9 14900k
GPU: Intel Arc A770 16gb
Ram: Corsair Dominator 64gb 5600
Mobo: Maxsun Terminator Z790 D5 wifi
Hard drives M.2: Samsung 990 pro 2tb, Samsung 970 evo plus 1tb, CT 1tb, Adata 500gb
PSU: ROG Thor 850 P2
Cables: [Cablemod.com](http://Cablemod.com) custom shortened and sleeved
Water loop distro : EKWB FLT 120 reservoir + D5 pump
Water loop cpu block: ThermalTake Pacific Mx2 Ultra
Water loop radiators: Alphacool HPE 20 x 2
Water loop hardware: 15 Alphacool, 3 EKWB, 2 Alphacool soft, 2 granzon
Water loop tubes: EKWB Acrylic tube 14mm, Alphacool 13/10 soft
Air Cooling : ThermalTake Toughfan 120mm x 3 + Controller
Air Cooling : Noctua 40mm pwm server fan x 2 (non visible)
Additional RGB Control : Coolermaster controller**Case:**Lian Li PC V600, left side mount, released in 2006, I acquired it in 2015 from PC Recycle in sodo Seattle.I had to track down a new foot, one had been missing since I acquired the case (ebay)
**Mods:** **These are the case mods I did personally**Cut a hole for the cpu mounts in the Motherboard mount plate as this case was designed for older hardware Cut two 120mm blowholes and added aluminum covers (Dremel)Cut Front and rear windows into side panels (Dremel Max)
Moved PSU from vertical placement in the lower right side of the case in front of the CPU to horizontal placement in the top left in old drive bays. The PSU bracket had to be cut to show the OLED on the side. Modded the side panel rail slide to accommodate the PSU, I used the original aluminum stand the psu was on, cut in half and epoxied with JB weld. Changed and moved Power/ Reset switch to the back of the case, shortened and spliced the cableI cut and bent my own 14mm acrylic tubes (hobby miter, heat gun). Cut and made two way mirror for the front panelPlastic “truss” is both functional and aesthetic. It came from a Gunpla accessory kit and has two cables passing through it and it acts as the GPU support. I could only get red and had to paint it.Notice that some logos are missing/ covered, I dislike having a case as an advertisement. The Rog eye on the PSU is mostly covered but iykyk, most of the word “Intel” on the ARC GPU, Two of the Thermaltake logos on the fan edges, the Paint on the Thermaltake Mx2 Ultra and Maxsun terminator heatsink. (I will eventually cover the visible SSD with a heat sink, cover the fan info on the rear and work a cover for the word “dominator”). the one logo explicitly unchanged is the LianLi case badge, if I think of a perfect replacement, maybe then.**Mod I did not do:**I did NOT shorten and sleeve my own cables, I used [cable-mod.com](http://cable-mod.com). I am not confident in my ability to do this. **BAR:”Bar Tiny” Re-ment sets from Japan, 17 sets involved**. I customized the color of the bar and chairs and shortened one table for the mezzanine. The whole bar, minus barback- is on a removable 7 inch piece of black acrylic for cleaning.**Jill Stingray Nendoroid**
Jils Cat, it sleeps on the GPUJill Stool: Jill is glued to a cute doll stool to see over the barJill Accessories non-Nendoroid: cellphone, purse, coat (ebay)**Dorothy Haze Nendoroid**will be added on release.**Bar Back:** **I made this myself**Black acrylic sheet, and frosted acrylic rods.
Doll Light power kit: 8 Led lights, 4 incandescent lightsUSB Doll light power strip
**Other Bar Accessories:** Overhead Hanging farmhouse lighttrash, mop, broom, pan, mop bucket, 2 blue fuzzy chairs
Miniature plantsMiniature MicrophoneMini bottle Dom Perignon, an xmas gift from my friend nemo, it’s on the top shelf
