I was about to comment the office meme: they are the same pictures.

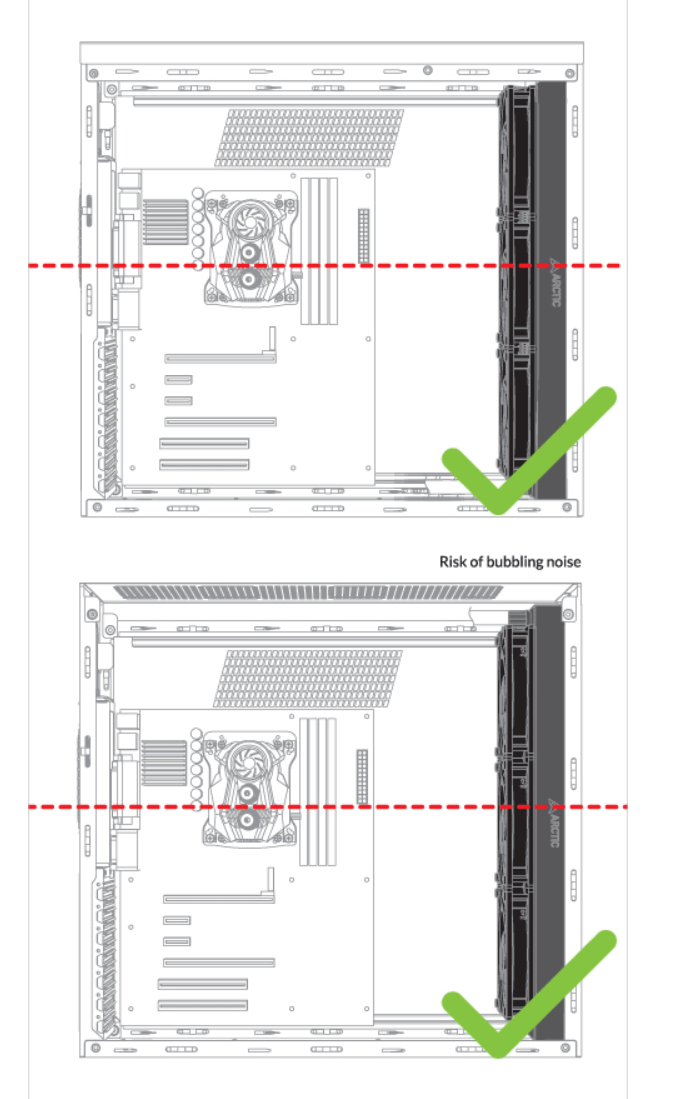

but then I gave it a second look and noticed that it’s about the the radiator orientation and if the tubes come out the top or bottom.
that makes sense because there is a little bit of air in a aio and with the tubes at the bottom, the air will just stay at the top of the radiator, therefore no bubbling noise.
Gamer nexus made a video about it, with the result: that the pump shouldn’t be the highest part of a loop, because air can damage the pump or at least make it louder.
go4itreddit
They are not the same picture. On the second picture it shows on top of the radiator the nozzle. If it with tubes up it’s going to make a “bubbling noise”.
b00c
Never allow bubbles to get into pipes. Bubbles will develop after certain time even in non-refillable sealed kit. Bubbles stay on top. If your output from radiator is on top, bubbles will get sucked into the AIO pump. This will cause noise at first, decreased performance later, and eventually damage to the pump.
I stopped pointing that on some of the builds posted here because I got downvoted a lot. It appears teenage boys with daddy’s budget can’t stand criticism.
TeeJizzm
It would be a lot easter to tell the difference if the massive green tick wasn’t in the way.
zfreakazoidz
I have the same warning for people if they want to give me beans. Risk of bubbling noise and winds blowing out that harm people.
Drakoneous
Their checkmark on the bottom is covering up the part they want you to see. It would have helped if they included the tubing in the illustration.
Own_Perspective_2206
I couldnt find the difference so i check comments
FreeNet_Coyote
In bottom picture you see tubing fitting at the top
b05501
The hoses in the north postion can cause loss of cooling and noise. All coolers have a small amount of air in them.
pIushh
✅
Alamasy
Tubes should be at the bottom, follow the manual, ignore reddit.
The one thing about Arctic that I can complain about are their crappy manuals.
Own_Apricot_9880
Tge red line is where you can fold your Mobo for a more compact design.
MikeNizzle82
Radiator pipes go at the bottom my dude.
AdorableOwl4353
Risk of bubbling nose
kingy10005
as long as the radiator is higher than the pump your fine. if you mounted the radiator lower than the pump then air constantly goes into the pump and can cause more wear eventually early failure.
cookiesnooper
The water block has to be at that level regardless of whether you want water hoses to run upwards or downward. Otherwise, you might end up with air in the water block.
CryptikTwo
Place the rad with the ports at the bottom of the case to prevent gurgling…
wbaans
Thank manual was terrible. Just installed on a month ago.
