Ryzen 5 3600: All Core 4425MHz 1.2750v Override
Ballistix: 3666MHz 1767MHz FCLK CL14-19-14-14-36 1.460v DRAM / 1.1v SoC Voltage

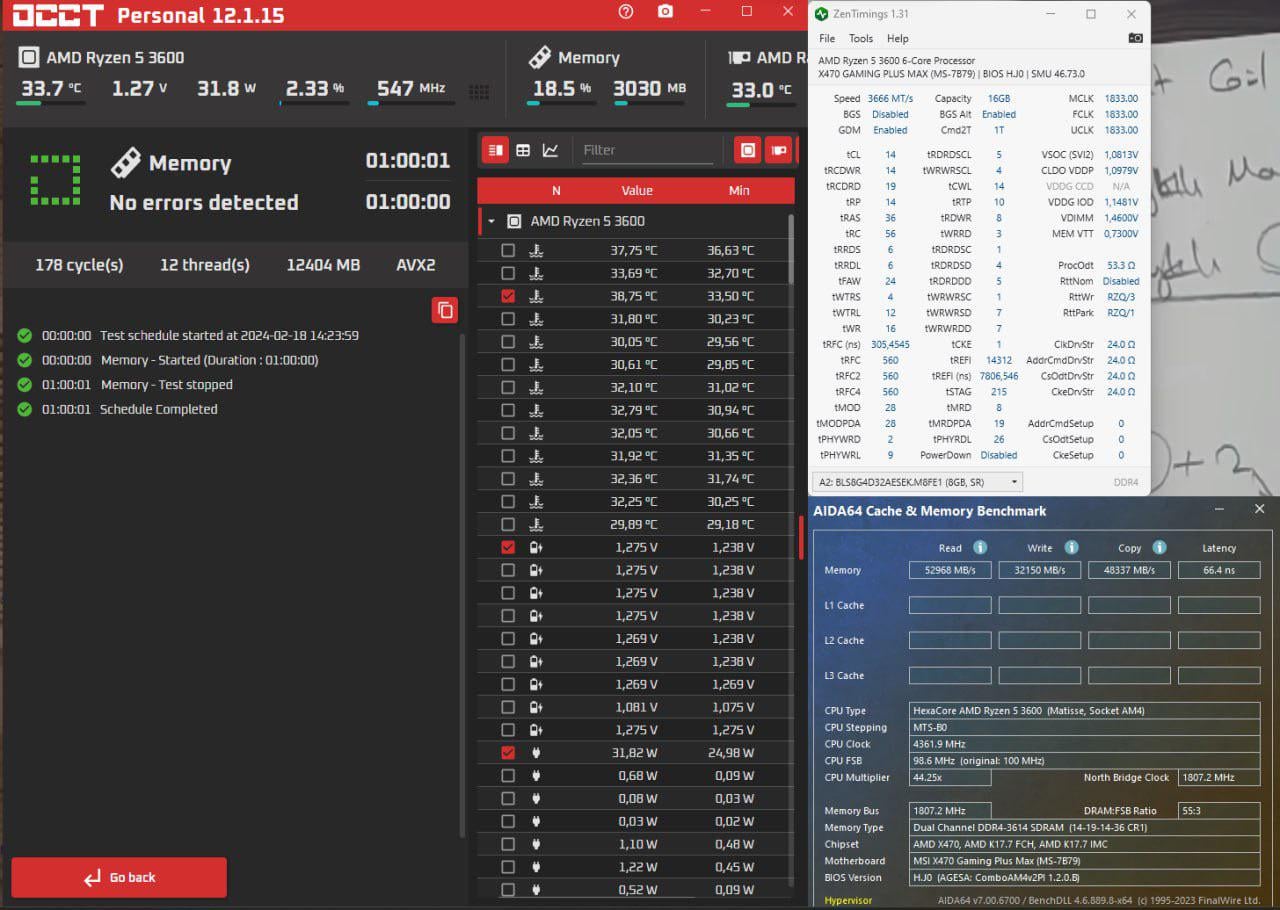

OCCT 1 hour AVX2 memory test and TM5 anta777 Extreme 1 hour test
Ryzen 5 3600: All Core 4425MHz 1.2750v Override
Ballistix: 3666MHz 1767MHz FCLK CL14-19-14-14-36 1.460v DRAM / 1.1v SoC Voltage
OCCT 1 hour AVX2 memory test and TM5 anta777 Extreme 1 hour test
3 Comments
1833MHz FCLK*
Well this doesn’t look like micron E die to me but if it is it should at least do tRFC 280ns.
tRCDWR should do 8
tRC = tRP + tRAS (any less and this timings is ignored so just set it to 29)
tRRDS 4
tWTRL should do 8
SCLs should only be 4/4 or 2/2
tWRWRSD 6
tRDRDDD/tWRWRDD: only applies when using 4 sticks. Set to 1 / 1 for two stick configurations.
Hope this helps
Golden sample?
RAM wise, plenty of 3600 and 3600X were doing 3733 and 3800 MT/s back in my days of owning this chip.
Mine did 3733C14 with bdie.
