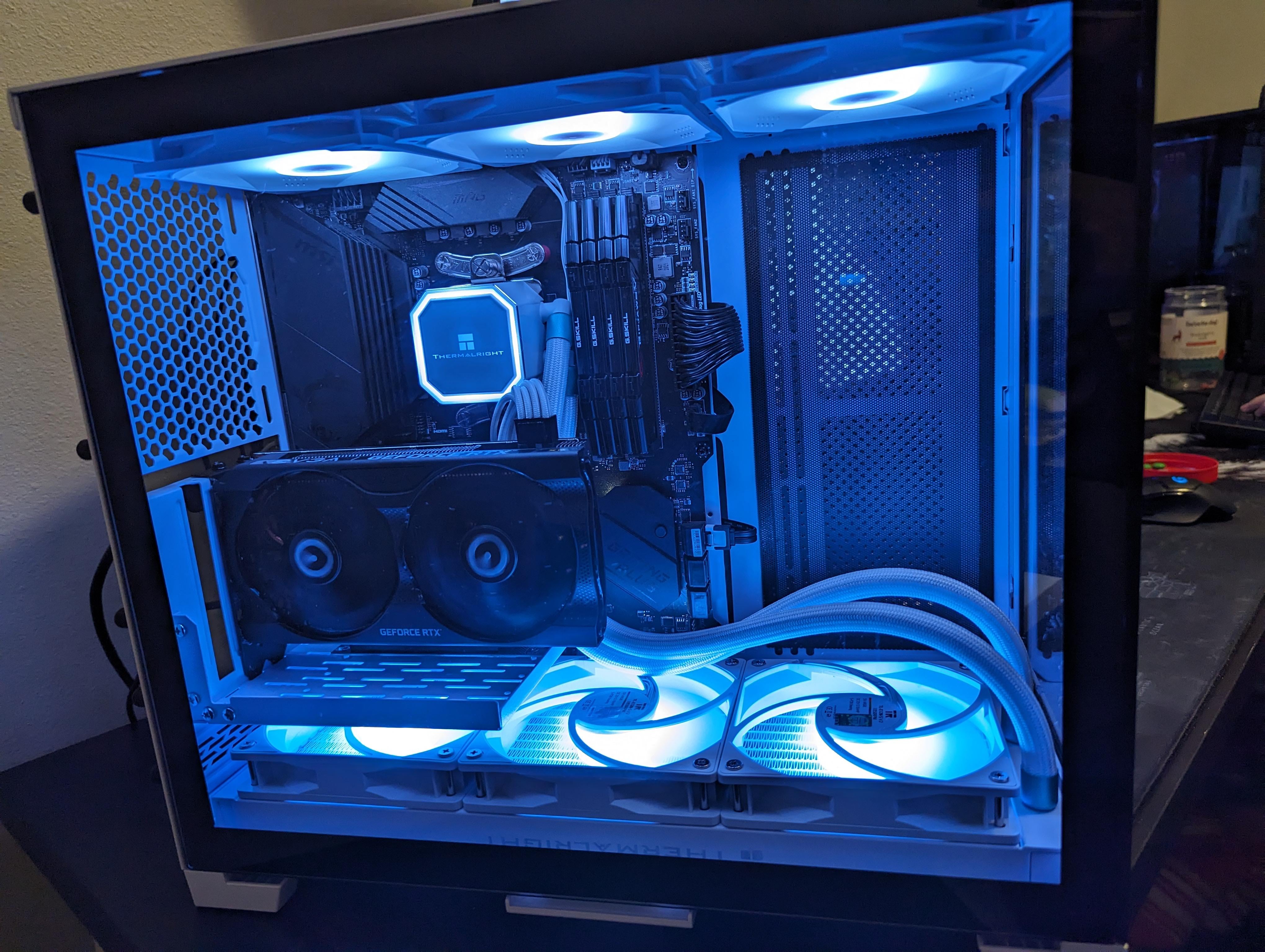

I bought a 360 AIO with the intention of mounting the radiator at the top of the case. Unfortunately the RAM and Motherboard heatsinks interfere. The smart thing to do would have been to use an air cooler, but that interferes with the vertical GPU mount. Form over function everyone.
36 Comments
While i understand you have no choice, this is the worst possible way of setting up your AIO. And will most likely affect the longevity of your AIO pump. Possibly even break it quite fast.
~~I strongly suggest you return the AIO, take that vertical mount out, and put a good air cooler in.~~
~~EDIT: whopsies, didn’t notice the sidepanel cooler / fan slot~~ [~~Greasy_donerkebab~~](https://www.reddit.com/user/Greasy_donerkebab/) ~~suggested of using. That is the best course of action if air cooler is not an option.~~
EDIT2: Apparently there is even a better solution as described by [mizka900](https://www.reddit.com/user/mizka900/) that we didn’t know about when the post was originally made by OP 12 hours ago. *”Lian li already has the solution for this exact case when its used in ATX config* [*https://lian-li.com/product/rb-001/*](https://lian-li.com/product/rb-001/) *That is the real way to mount the rad to the ceiling.”*
Rip aio.
Just get a 240 aio and mount it vertically just to the right of the motherboard.
There are plates to dislocate the rad in the top to still have it mount in the top
I found some offsets on etsy.
There should be some by EK aswell
But 240 aio is a valid alternative.
Edit:
__Thanks to u/LyKosa91 for reminding us [here](https://www.reddit.com/r/pcmasterrace/s/Vf20Cgfvtj) of the Lian Li Bracket RB-001__
> _Lian li make their own offset brackets, I use them in my 011 mini. They’re called RB-001_
Just get a bigger case
Just flip the case
Well that pump is dead.
Now we need all the peeps with “WRONG AIO MOUNT!”, not on threads where it’s properly mounted. Where are they all ?
Also the smart thing to do would have been to measure first.
Or just mount the GPU horizontally? The GPU doesn’t look anything particularly fancy, so why prioritise showing it off?
Alternatively, couldn’t you just get a 240mm AIO and mount it next to the motherboard, if that’s where the intake is (hard to tell)?
Is this an O11 mini? If so, you can still mount the 360 up top, but it requires additional offset mounting brackets. I ordered mine off of aliexpress or you can find 3rd party ones on ebay/etsy.
This is a bad idea
Mount that bitch to the outside of the top lol.
This is the one way that‘s actually bad…
Vertically?
You literally have a space to use a smaller AIO on the side yet you were dumb enough to use it on bottom where that AIO will be lucky if it survives 2 years
Just flip the pc upside down and you’ll be fine.
form over function i guess 🤷♂️
Very bad idea
I really don’t get the “vertical GPU” thing.
>AIO mounting guarantees pump death
>GPU sucking on preheated cpu air
>no additional intake fans
This isn’t even suboptimal, its just bad and wrong. A 280/240 cooler could fit on the side panel, letting you blast the gpu with fresh intake, you could probably make the 360 fit on the top, there are definitely 3rd party plates that solve this issue. Cheaper than a dead AIO.
At this point sit the pc on it’s face, the configuation would make more sense at least.
Why he look like 🤨
https://preview.redd.it/oflfnarz6hbc1.png?width=726&format=png&auto=webp&s=c4638deb18107a1f75076d303421966433355733
I don’t think I fully understand the gravity of the concerns here …
Going to discover what cavitation is sooner than later
And the aio going:
glug! glug! glug! glug! glug!
At that point, I would just have the AIO unattached and vertically leaning on the side panel or something. Anything but that.
NGL, i’m way more annoyed by the low end GPU in a build where the case and AiO probably cost more.
I don’t think it will…
Oh, nevermind, good job, young boy. good job.
That’s a nice air pump you have there…
AAAAAAND it’s gone.
Can you remove the front top fan and move the aio to that side insert?
Why can’t you side mount it?
https://preview.redd.it/vgn3k5it7ibc1.png?width=1080&format=pjpg&auto=webp&s=13c557b68209e5f08abb823c71b63fc6e7a3b0a9
It doesn’t fit there? That’s a bummer to use an aio like that
dead pump in a few months
You can “own them” all you want but have fun buying a new cooler *significantly* sooner
More like AIO pumps hate this one trick.
The vertical GPU mount looks terrible and in this configuration is causing actual problems. Not only is it burning the AIO but the GPU mount is also blocking the AIO and the GPU airflow.
This might be the worst build posted in a while 🙂
Ok but where is the psu?
High point should not be the pump. It will kill itself pumping bubbles.
