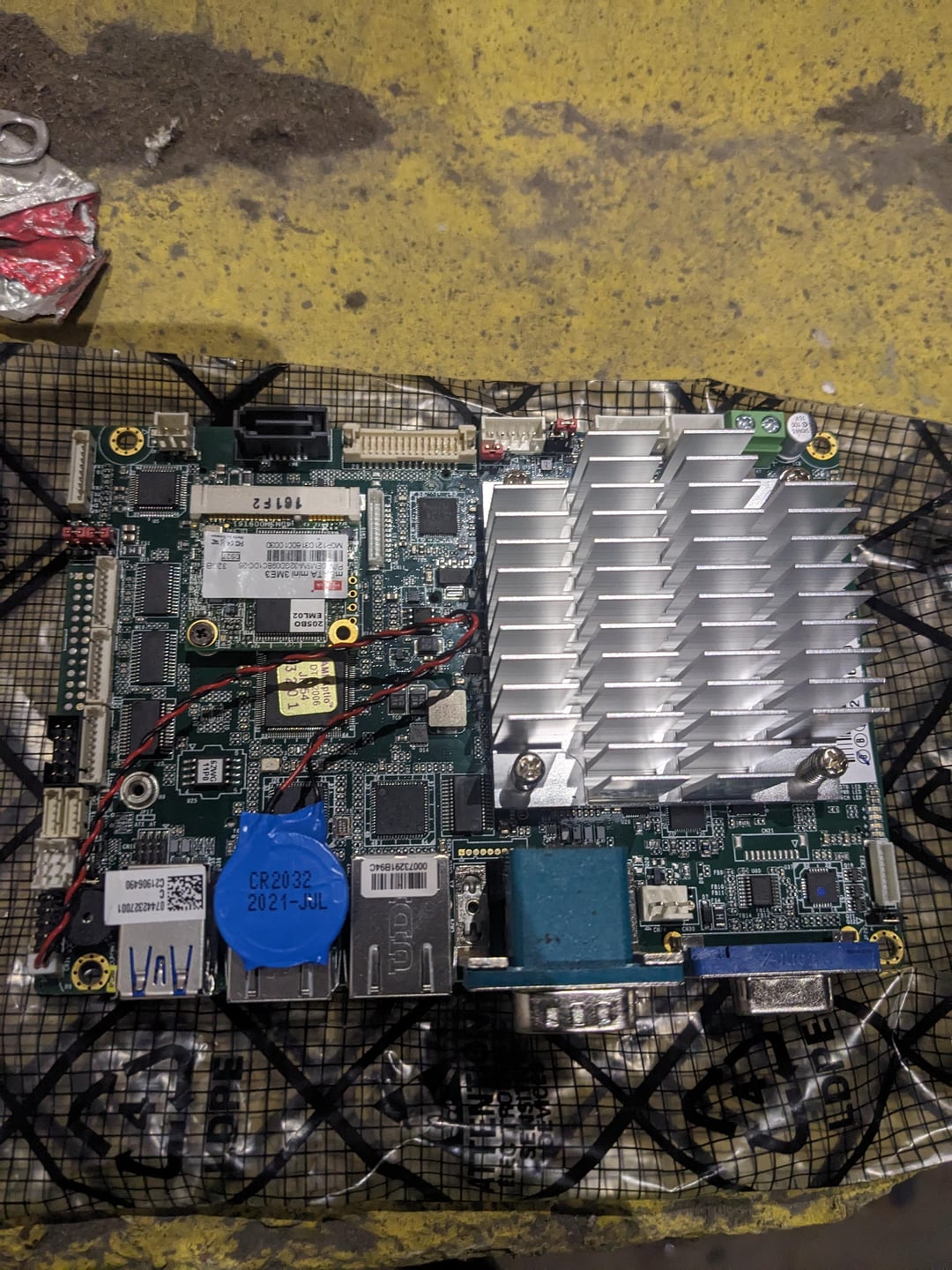

Does Any know what type of board this is & Different ports I only recognize SATA m.2 and the Ram. I found this at work in the trash.
Does Any know what type of board this is & Different ports I only recognize SATA m.2 and the Ram. I found this at work in the trash.
2 Comments
Hello Aquaruis777, and thank you for your submission to Gaming PC! If you are new please check out our rules over at the wiki [here](https://www.reddit.com/r/gamingpc/wiki/rules)!
We have recently added the useful feature of Title Flair! You can set this manually by clicking Flair under your post once you have submitted your post, but if you missed it in the rules there is a much better way that will automatically flair your post!
To do this simply add what your post is about in brackets before your title. For example for a Build Log you can type [Build Log] before your post so that it looks like this; [Build Log]My new awesome build!, and the bot will automatically set your flair to Build Log! This works for Build Log, Build Showcase, News, Hardware News, Hardware Release, Discussion, and Miscellaneous!
Also remember that this is a place for discussing and sharing our love of Gaming Computers! This is NOT the place for help building or determining what parts you should buy, that is better suited for /r/buildapc. Troubleshooting questions should be directed to /r/techsupport. Thank you again!
*I am a bot, and this action was performed automatically. Please [contact the moderators of this subreddit](/message/compose/?to=/r/gamingpc) if you have any questions or concerns.*
Basically, it looks like an embedded board, the extra connectors are usually to connect stuff like displays directly to the board or additional sensors, serial com ports, – that white port on top edge marked “29” in the bottom left pin (picture 1) is an LVDS port if I am not mistaken, used to connect a monitor to it.
Given that it has an LVDS port, there will be a couple of supporting ports too there for backlight control for an LCD screen – powers the invertor on a display.
On the bottom picture, there is a mini PCIE slot and appears to be a SIM card slot under it too.
Green port on the top right (picture 1) is probably the power feed.
The bank of 3 white connectors that are identical (left side, picture 1) potentially could be additional com/serial ports – the little IC directly behind them looks awfully like a board I used to have for running a software firewall
You usually find similar boards in things like digital display signage or other embedded systems or industrial settings.
The model number – hannstar k mv-4 94v-0 turns up a lot of results, but doesn’t seem to relate to just one motherboard based on the images I see in Google. For example – [https://www.radwell.co.uk/Buy/HANNSTAR/HANNSTAR/K-MV-4-94V-0?redirect=true](https://www.radwell.co.uk/Buy/HANNSTAR/HANNSTAR/K-MV-4-94V-0?redirect=true) looks nothing like it!
