Trying to run a human configuration that can work fine.
Set up MPT for 312W max power (+15% in adrenalin) with a 1.1v cap. 2250MHz works at 1.1v, apparently. Maybe with better bins you can run 2600, I don’t know.
Also set Fclk to 2000 MHz and SoC to 1400 MHz (@1050mV instead of 1150mV stock).
Reduced the voltage on the gddr6 Samsung VRAM to 1.25, because…it kind of works (at 2060MHz though). I lose about 50-70MHz on the memory because of the undervolt. Whatever.
Also lowered the VDDCI voltage because it works.
The hard voltage cap of 1.1v in MPT (from the stock 1.15v) makes the Adrenalin voltage go from 1070mV to 1020mV (basically the same -50mV).
2550MHz Max freq with …any min freq you’d like to set.

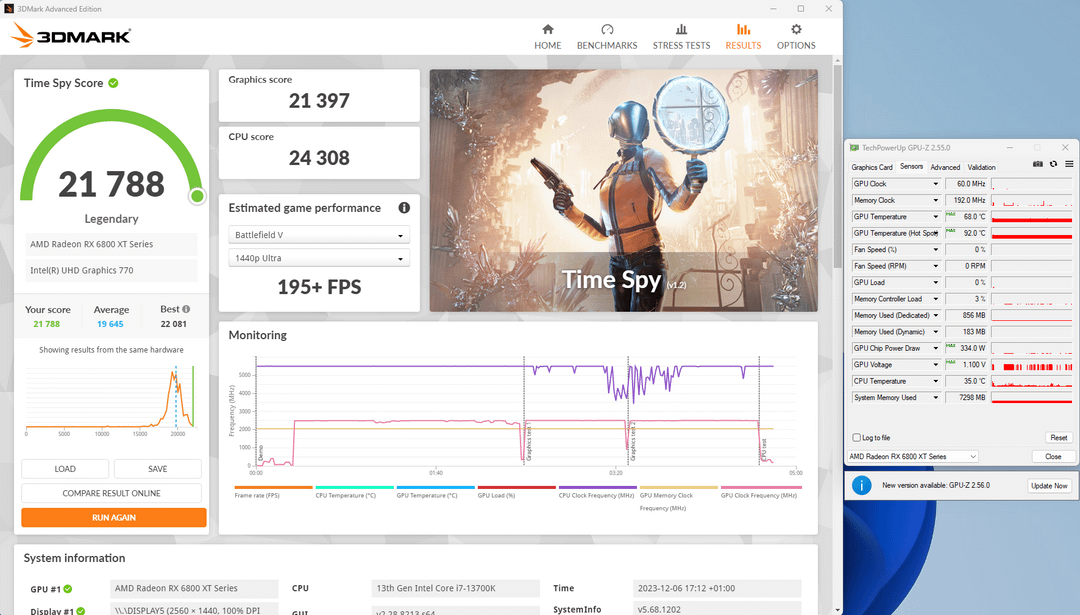

You can see temps and power consumption in the main screenshot.
I guess you could take a different MPT approach but I find this one to be kind of efficient and within specs: the card is on air cooler, not repasted 😊👋
1 Comment
No point in undervolting the memory honestly, just a higher risk of instability. My fclk does 2120mhz, I don’t adjust the soc frequency, and limit voltage to 1.125v. This allows me to do 2650max at undervolt 1050mv and 2120 fast memory at 345w for about 22k points
