So this has been roughly 3 weeks of tuning, I’m throwing in the towel. I had a screenshot of R23 scores too, but accidentally saved the R15 scores over them when taking screenshots. R23 scores were 11900 and and 1600.
It’ll hold 4.85GHz single core under load and 4.6-4.65GHz multicore under load. While web browsing or playing light games, it’ll occasionally blip every core to 5GHz and that’s good enough for me lol. Pretty certain this is just a downclocked 5600X and a good one at that.
PBO settings are +550 clock (ASUS B450 TUF board allows for it still), PPT, TDC, and EDC are at 200 and CO numbers in order are: 30, 7, 10, 17, 30, and 27.

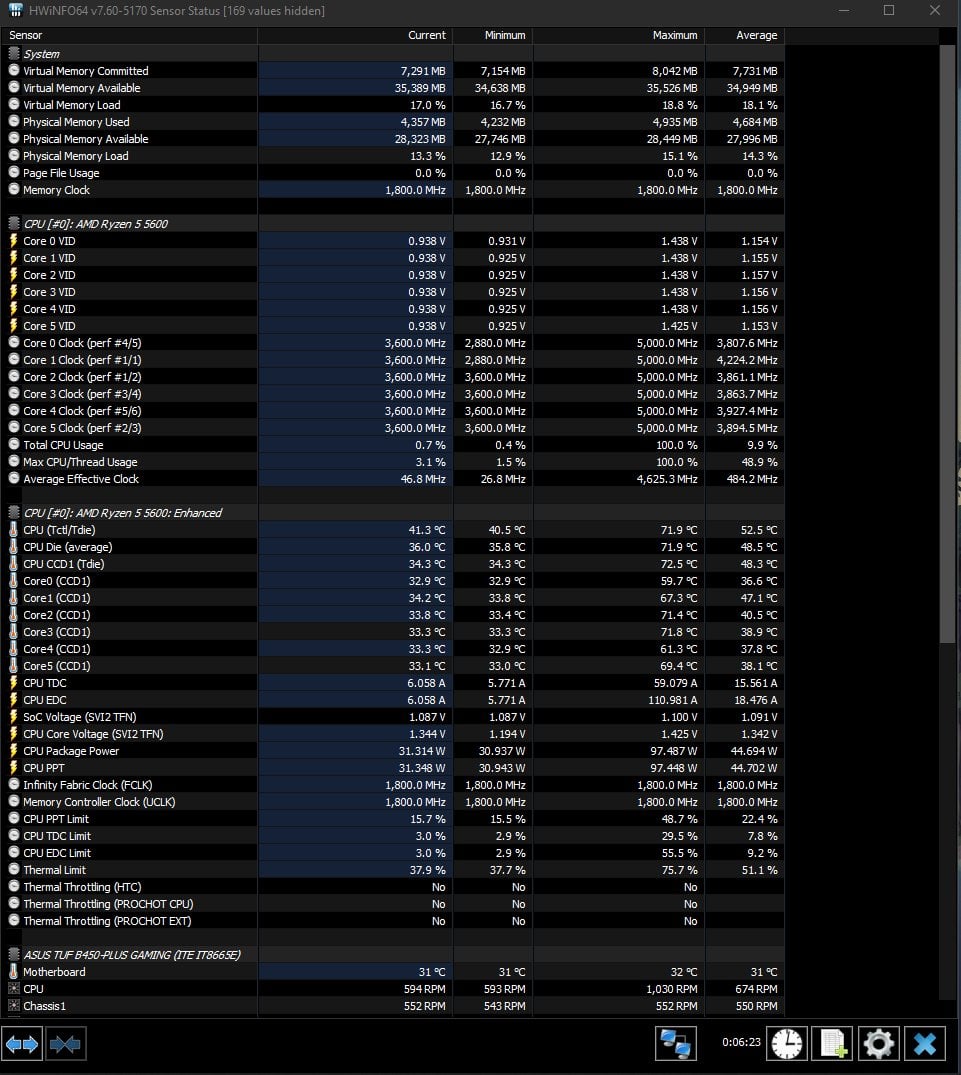

[R15 scores and HWInfo](https://imgur.com/a/AKKq59q)
Testing has been a mix of 16 hour sessions of Y-cruncher, OCCT Large and Small AVX for a few hours after work, no crashes at all. I think the chip still has headroom, tbh. Scythe Fuma 2 for the cooler.
2 Comments
All the 5600’s are just downclocked 5600x’s
Looks like your clock stretching pretty bad. Maximum clock is 5000 MHz, maximum effective clock is 4625.
What BIOs are you on to allow +550 clock, even if it’s not being used?
