DR2x16gb 3733 16,16,16,30(its b die, the IMC doesnt like sub 15 timings)
rog b450i (riding that struggle bus up that hill)
artic freezer 2 280(lapped)
300 200 0 in PBO
10x scalar
25mhz extra boost
vcore offset +.064
-28 all core CO
Fmax enhancer
Im using an asus OC switch called fmax enhancer, very rudimentary early version of CO coupled with the EDC bug.
Fmax enhancer causes ccd2 to clock stretch but boosted cinebench scores, so a positive vcore offset was added until observed clock stretching in r23 had stopped.

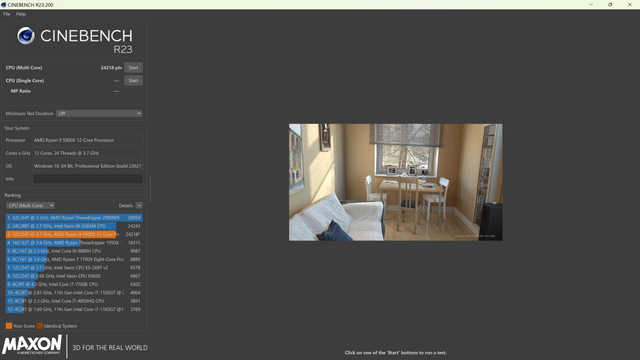

Run -25 on CO 24/7, cheated a little and used -28 here to try and get that xenon score.
vcore in gaming and idle is pretty tame, skatterbench found in testing that the PBO2 algorithym will basically end up in roughly the same area of voltage on the v/f curve with positive vcore offsets, but that the curve itself shifts with vcore offsets. With the positive offset vcore moved slightly but about half the asked for amount, so about 30mV extra of voltage.
1 Comment
b0 5900x(lapped IHS)
DR2x16gb 3733 16,16,16,30(its b die, the IMC doesnt like sub 15 timings)
rog b450i (riding that struggle bus up that hill)
artic freezer 2 280(lapped)
300 200 0 in PBO
10x scalar
25mhz extra boost
vcore offset +.064
-28 all core CO
Fmax enhancer
Im using an asus OC switch called fmax enhancer, very rudimentary early version of CO coupled with the EDC bug.
Fmax enhancer causes ccd2 to clock stretch but boosted cinebench scores, so a positive vcore offset was added until observed clock stretching in r23 had stopped.
Run -25 on CO 24/7, cheated a little and used -28 here to try and get that xenon score.
vcore in gaming and idle is pretty tame, skatterbench found in testing that the PBO2 algorithym will basically end up in roughly the same area of voltage on the v/f curve with positive vcore offsets, but that the curve itself shifts with vcore offsets. With the positive offset vcore moved slightly but about half the asked for amount, so about 30mV extra of voltage.
