Hello guys I’m tuning my Ram now
And I want set everything to be stable correctly and smooth
My set up
7800x3d
B650 eagle ax rev 1.1 BIOS F40
6000mhz cl30 2×16 GB Hynix single rank
30/38/38/96 EXPO 1.35v
4060 eagle oc
Vddg both 0.95 (auto)
Vddp 1.05
Misc 1.1
Vpp 1.81
Nitro 1/3/1 8x/8x
Pbo -15 scalar x1
Couple of strange things happen:

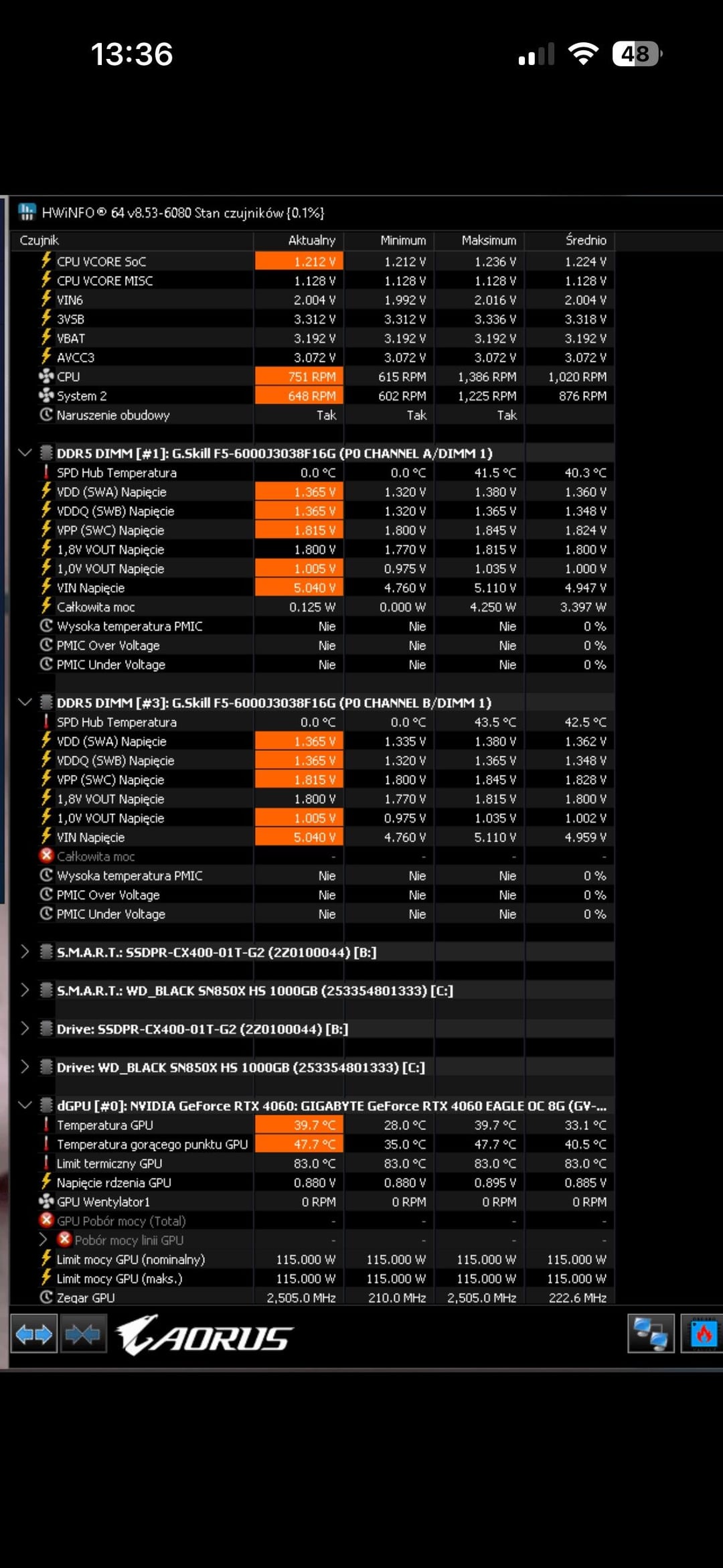

– I’m missing vddio voltage from hwinfo
– soc voltage strange behaviour
1.2 soc typed in bios
Pc health tab showing ~1.23
Zentimings 1.19
Hwinfo Soc 1.23
Hwinfo vcddr soc 1.19
Dropping twtrl from 30 to 24 and games not smooth anymore (no error 5h t5m)
TRRD S/L
8/8/32 mouse feels heavy less fps but no errors
8/8/12 mouse feel okay fps also
Phydrl timings gdm ON 34/36
Only way to match them is to put gdm off
What should be vddio voltage?
Its hard to set it correctly as I dont have any sensor to look at and dont know if my mobo will also overshoot it like soc (0.03) or it will be exact same as I insert
When I first build this pc for test I tried 1.4 VDDIO/VDD/vddq it booted but mouse was lagging as hell and pc crashed
My auto SCL 4/4
Cpu is stable at -15 and -20 but I’m using -15 for peace of mind

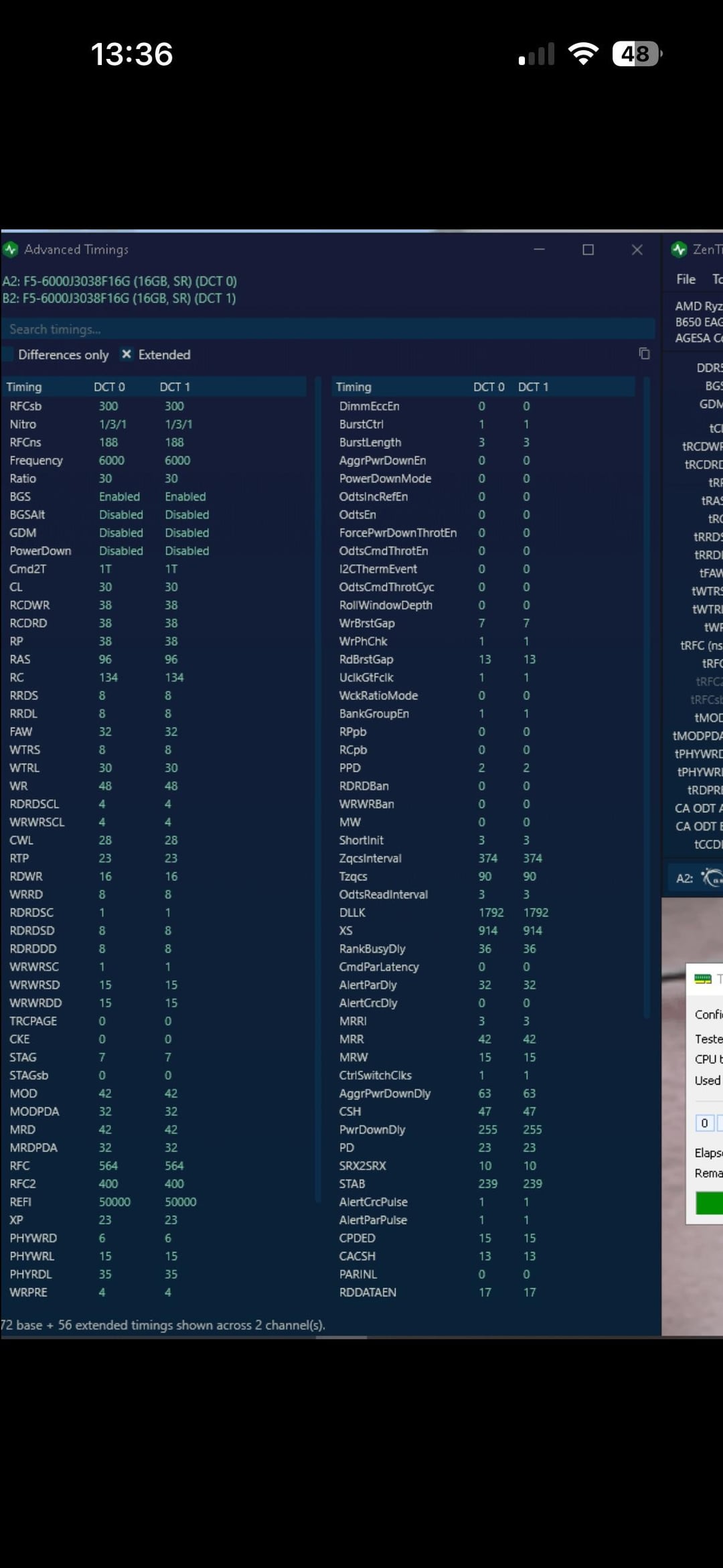

My timings ect on photo
With final tune no errors Tm5 anta777 Ryzen3d 5h
Temperature of modules max 43.5 under stress
I have fan 120mm over my ram modules
I don’t have problem with fps but my games even with 300+ fps and 260+ 0.1% low feels not smooth as should be
Latencymoon showing amazing system latency
I have win 10 ltsc
Chipset drivers up to date
Power plan balanced
Vddio 1.35 in bios
Vdd 1.37 in bios as it show stable 1.35 in bios
Vddq 1.35
Power down disabled
MCR disabled
DDR training runtime reduction disabled
Robust training enabled
Nitro 1/3/1 8x/8x
When I have system notification sound sometimes I hear like micro cracking but it’s very rare
I tried to put just for quick test It booted
15min tm5 anta777 Ryzen 3D with no error but I didn’t test more and backed to 1.19 in bios (1.22 hwinfo soc ) 1.19 hw info vddcr soc
