Hello. I'm new to overclocking or undervolting an AM5 Cpu
My Current Setup:
X870E Aorus Elite
Ryzen 7 9850X3D
ASUS PRIME LC360 AIO
ROG STRIX 5070Ti

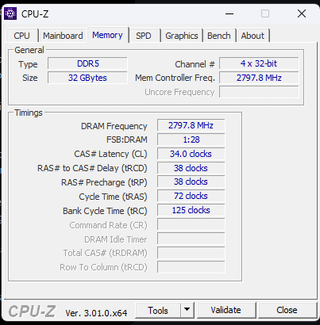

HyperX Fury DDR5 32GB DDR5 5600Mhz CL34-38-38-38-72
What i set in bios so far is the following:
CPU:
– X3D Turbo Mode: OFF
– PBO Enhancement Preset: 80 Level 2
– Curve Optimizer (CO): -25 (All Cores, Negative)
– CPU Boost Clock Override (Fmax Boost): +200 MHz
– CPU Vcore Loadline Calibration (LLC): Auto / Standard
RAM:
UCLK DIV1 Mode: UCLK = MEMCLK
Infinity Fabric Frequency (FCLK): 2100 MHz
DDR_VDD Voltage: 1.350V
DDR_VDDQ Voltage: 1.350V
tREF (Refresh Window): 50,000
Any help would be appreciated.
