Good morning/afternoon/evening all,
9850x3d sample #2 @ 8500 C32 over 40 hours total

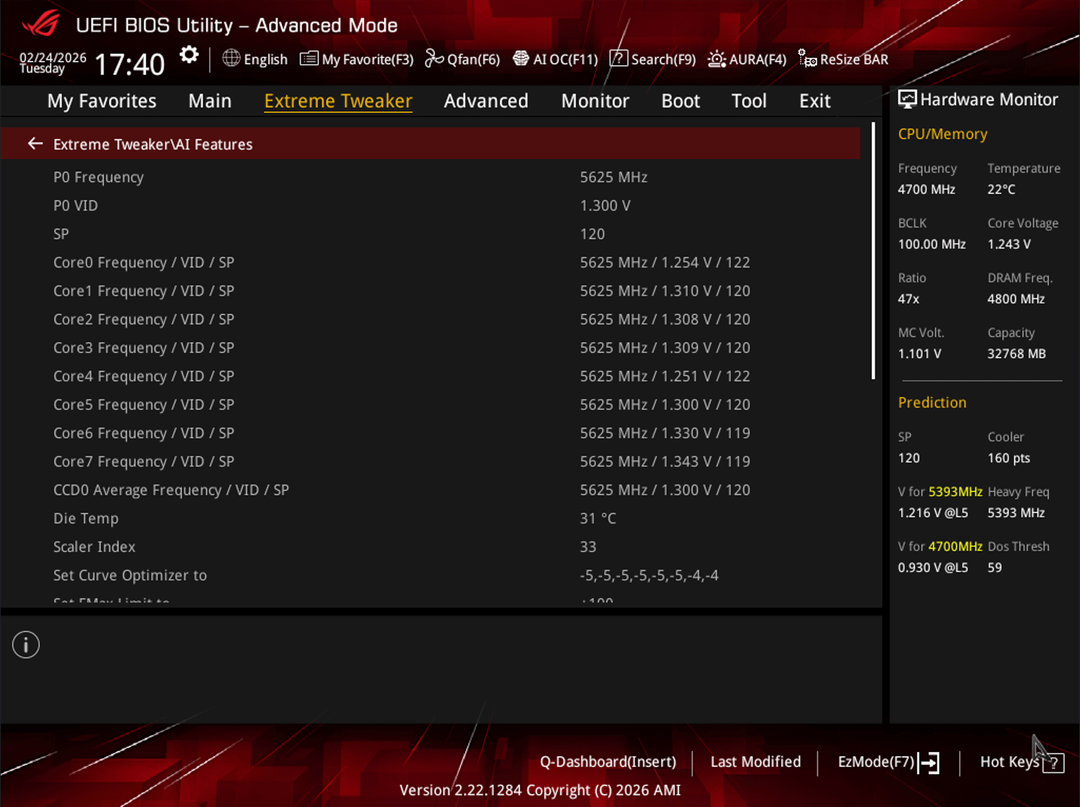

Still had same SP120, all cores 5.625
Refresh Mode: Mixed
i began testing my usual way working my way up 1-1 mode and the way i do my tests is setting vsoc to 1.15 and using it if possible through each MT/s, and reached 6600 and ran a few tests, 6600 seamed very easy compared to what i'm used to, so i thought to myself ill try boot 6800 1-1 with 1.28Vsoc, low and behold it didn't even think about it, few seconds it booted with bios on auto and just Nitro set.
Done a few tests @ 6600 and seemed to pass on only 1.22Vsoc, but needs more work and time spent, soo moved on to 2-1 mode, set 8600 C32 and my timings, DFE enabled and left rest on auto, 8600 booted and ran TM5 for an hour before i got ERROR 0, iv'e never really worked with 8600 so wasn't sure on how much VDD i'd need but just moved the same profile down to 8500 and started again. but before…

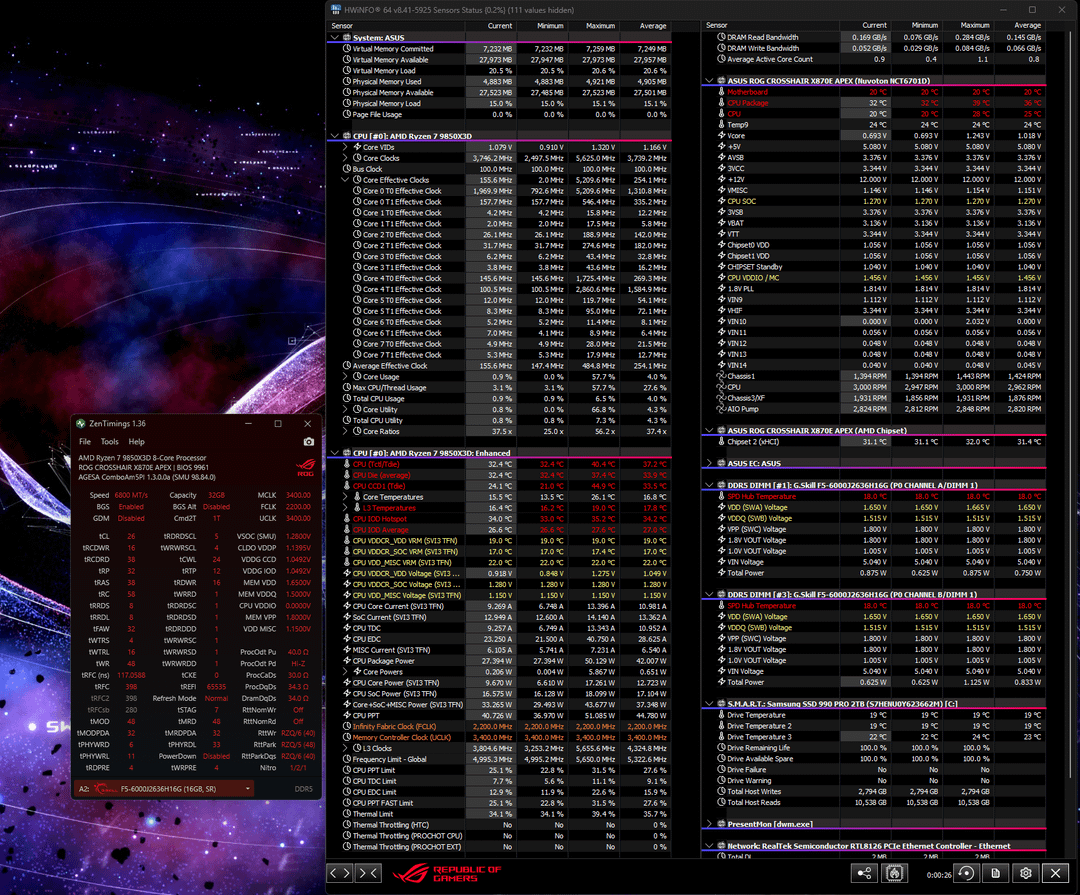

Here is the 6600 screenshot

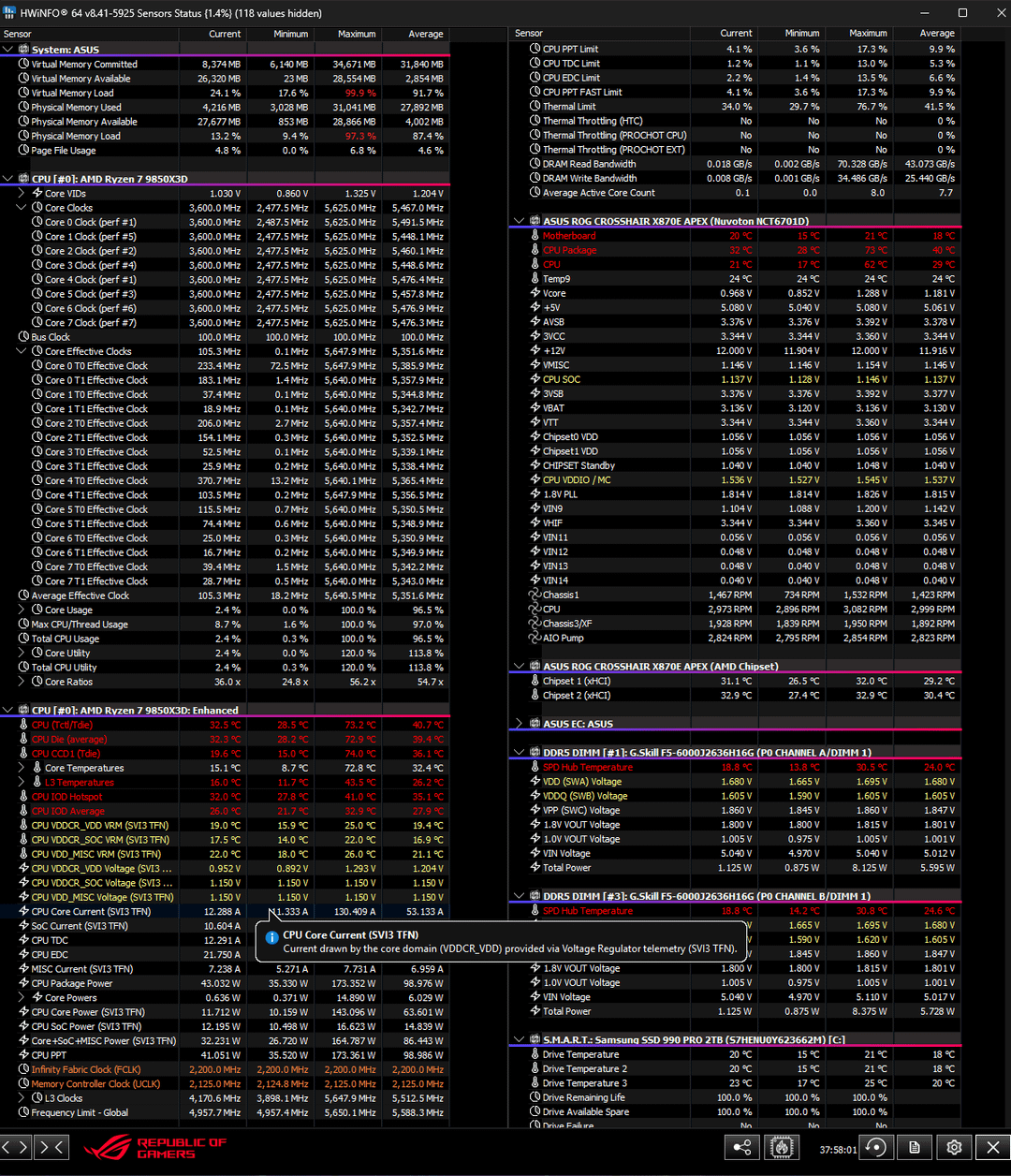

Back to 8500, end Results over 40 hours testing
VDD 1.68v
VDDQ 1.6v
VDDIO 1.53v (needed or wouldn't pass Ram Test Pro)
VDDP 1.16v
Misc 1.15v
DFE enabled
PBO enabled set motherboard and stock 5625
apart from the usual bios changes the rest is on auto

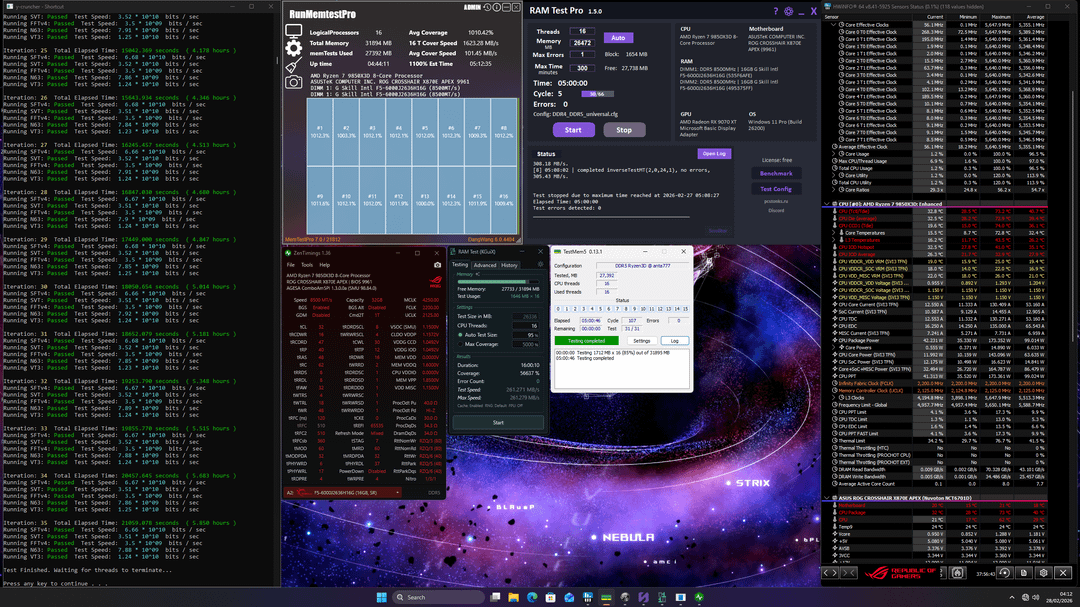

5 hours TM5 Rysen3D
4 hours 40 mins, 1000% coverage HCI
5 hours Ram Test Pro
16 hours Karhu, over 55000%
6 hours Y-cruncher

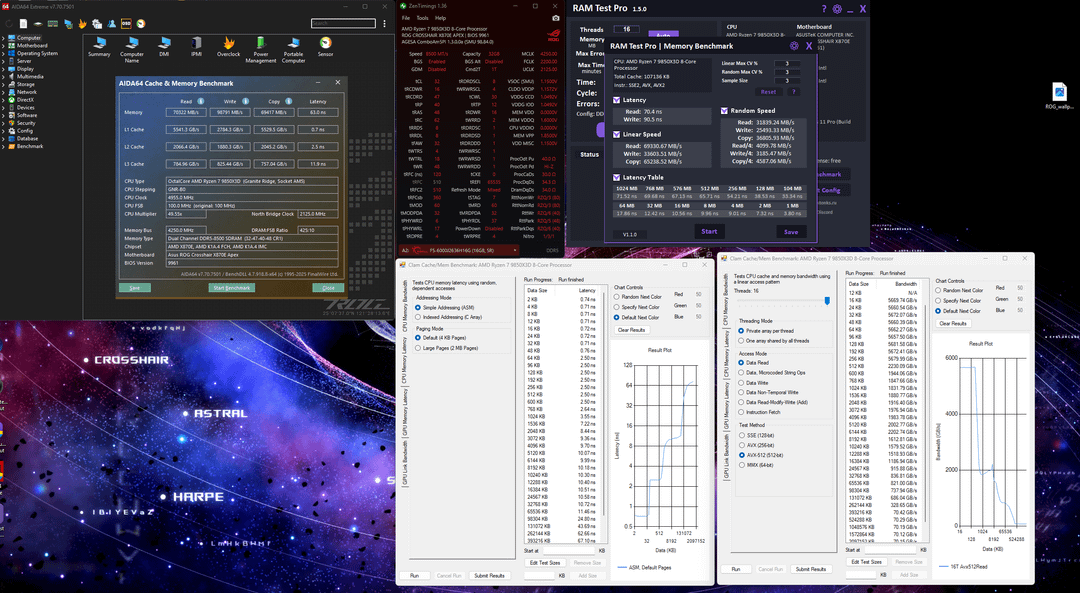

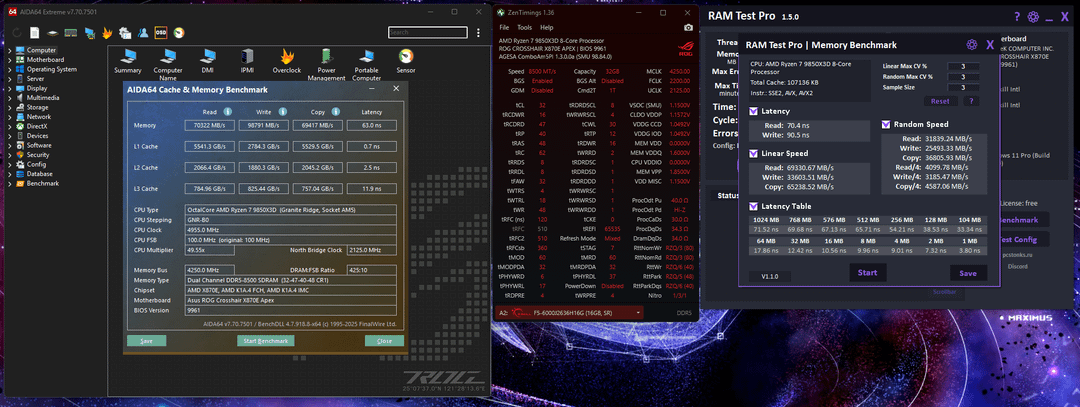

some Aida and RTP results

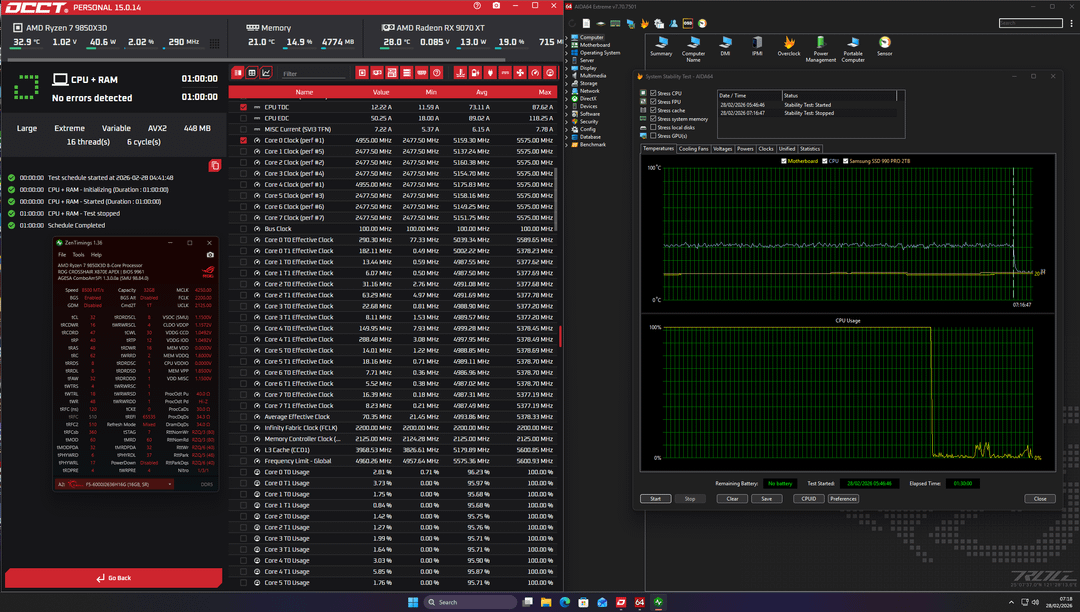

once these all finished this morning, i then ran OCCT CPU&RAM combined test and AIDA64 just for good measure
OCCT 1 hour
AIda64 stress test 90 mins
