Motherboard is the ASUS X670E-I.
Ryzen 7950X3D Settings:
PBO – Enabled
PBO Scalar – x2
Boost Override – +100MHz
Curve Optimizer – CCD0 -20, CCD1 -30
LLC – Level 4
Medium Load Boostit – Enabled
CPU Current Capability – 140%
SOC Current Capability – 140%
* Power Phase Control – Optimized
Spread Spectrum – Disabled
VRM Spread Spectrum – Disabled
X3D Core Flex – Disabled
TEAMGROUP T-Create Expert Settings:

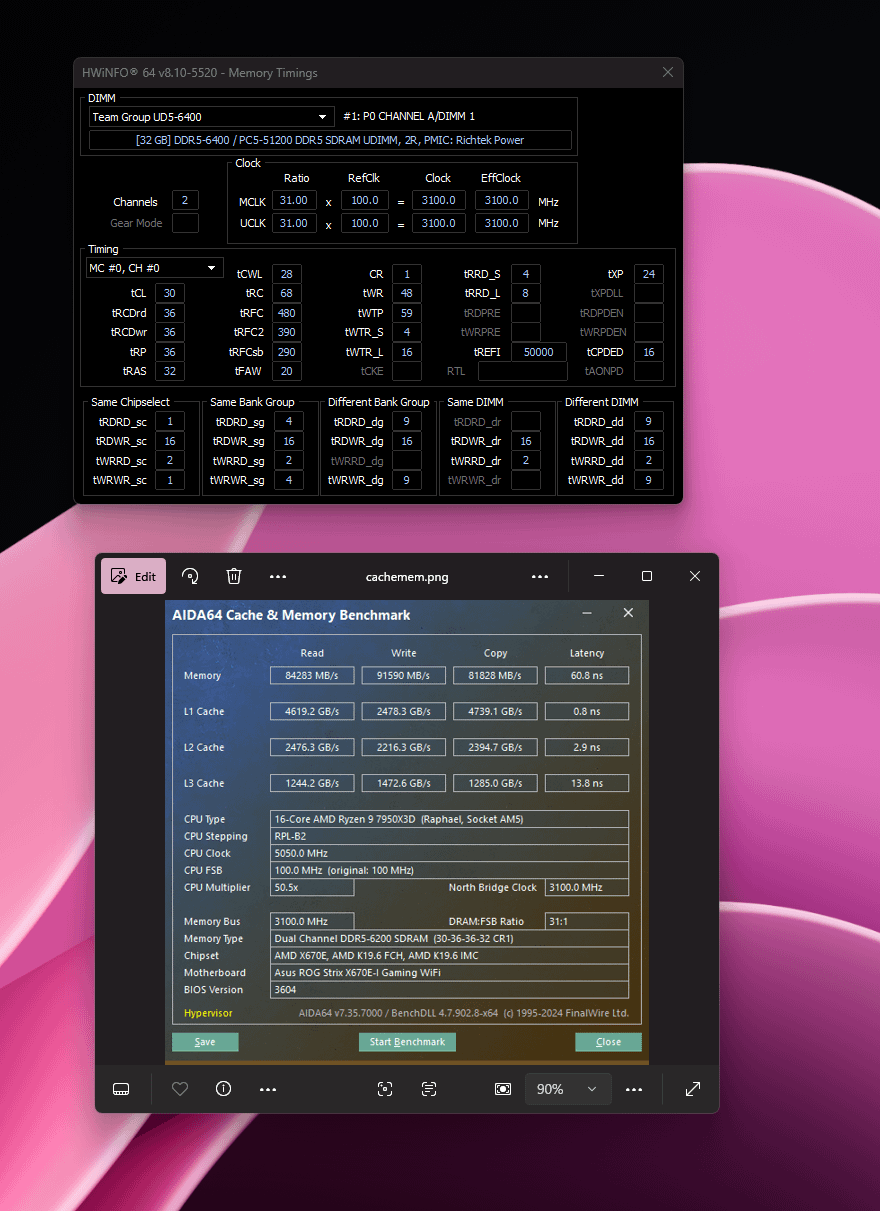

Timings – See Above
UCLK Divisor – 1:1
FCLK – 2167MHz
Power Down Mode – Enabled
Memory Context Restore – Enabled
