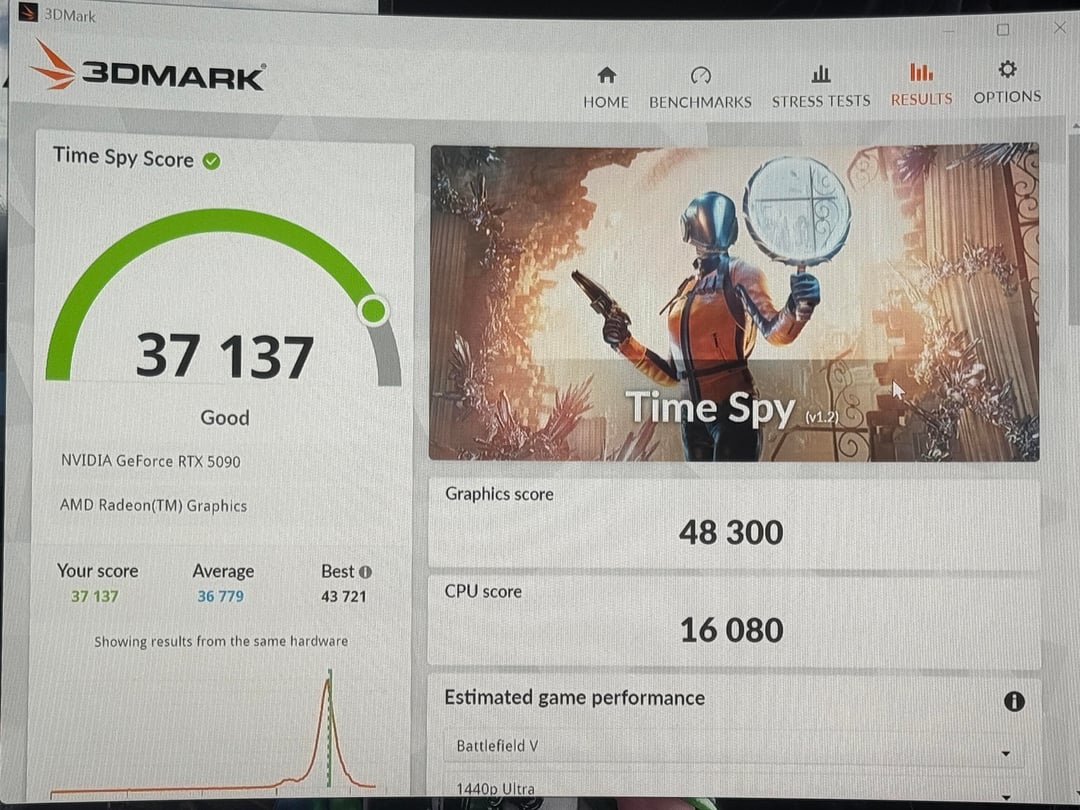

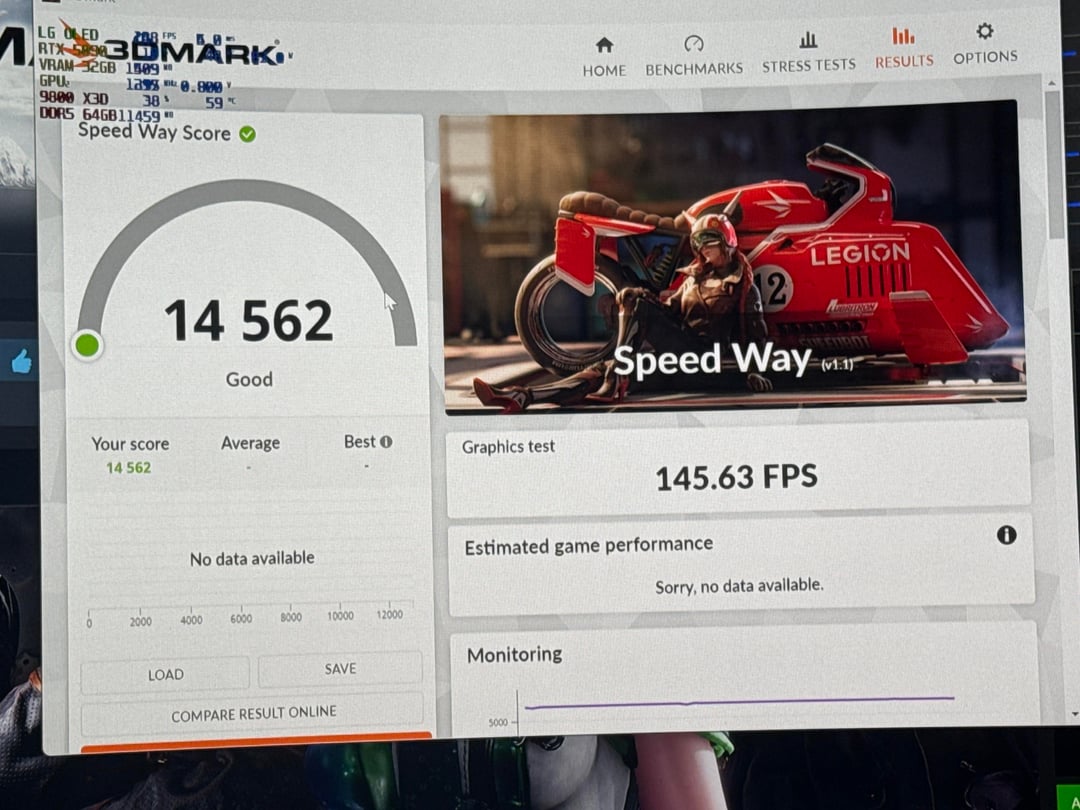

New build, 9800 X3D and 5090, under volt and overclock, 3-D mark benchmarks. 70 W power savings
I had a new build done by my local gaming PC shop and I wanted to share to get feedback. All I was going to do was upgrade to the 5090 but I got carried away and ended up doing a whole new build. I am curious what you would do differently. I use it to play AAA games at 3440:1440 with full ray tracing if available, max graphic settings, rarely with frame generation.
My goal with the GPU under volt was to save power and reduce risk to the power cable. I was not able to under volt and keep the same performance so I had to accept a slight loss in performance to get the decreased wattage. It’s about a 4.5% loss in frame rate. I went through a lot of testing with the curve in MSI after burner, but just couldn’t get the same performance. I’m guessing that I don’t have a well binned GPU.
I also use it for VR Sim racing with a quest 3, but I’m hoping that at some point I can get a higher quality display port headset when they become available in my country (Big screen, Pimax)
CPU 9800X3D +200mhz -20 all core
ASUS PRIME X670E-PRO WIFI CSM
KLEVV CRAS V RGB DDR5 Gaming OC 6000Mhz 64GB
SSD 1 M.2 CRUCIAL T700 2280 2TB PCIe 5.0 x4 NVMe 12400MBps/11800MBps
SSD 2 M.2 MSI SPATIUM M450 1 TB PCle 4/NVMe M.2 2280 R/W 3600/3000MB/s
SSD 3 M.2 WD BLACK SN850 1TB 2280 NVMe HEATSINK 5300MB/s/7000MB/s
SSD 4 M.2 SAMSUNG 1TB PCIe 4.0 NVMe 2280
INNO3D GEFORCE RTX 5090 ICHILL X3 OC 32GB GDDR7 under volt and +500 MHz VRAM
POWER THERMALTAKE TOUGHPOWER GT 1200W 80+ GOLD

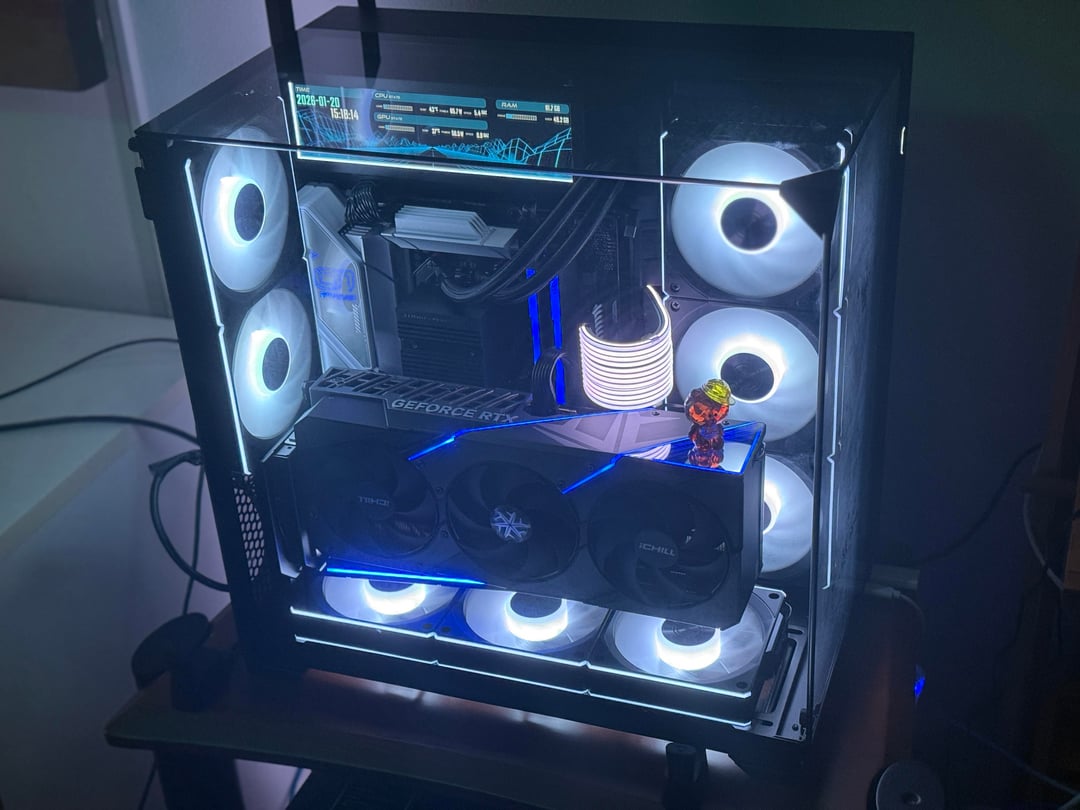

CASE LIAN-LI O11 VISION COMPAT
FAN LIAN-LI UNI FAN CL WIRELESS 120 ARGB (3 FAN)
FAN LIAN-LI UNI FAN CL WIRELESS 120 ARGB (1 FAN)
FAN LIAN-LI UNI FAN CL WIRELESS 120 ARGB REVERSE (3 FAN)
ACC LIAN-LI 8.8 UNIVERSAL 8.8” IPS LCD SM088
ACC LIAN-LI RGB STRIMER PLUS V2 24-PIN
ACC LIAN-LI MULTI-DIRECTIONAL VERTICAL GPU BRACKET VG4X4 GEN 5 RISER ARGB
ACC USB 9 PIN HUB OCYPUS DELTA EU04
COOLING THERMALRIGHT TROFEO VISION 360 ARGB IPS LCD
UPS ZIRCON PI 2000VA/1400W Pure Sine Wave

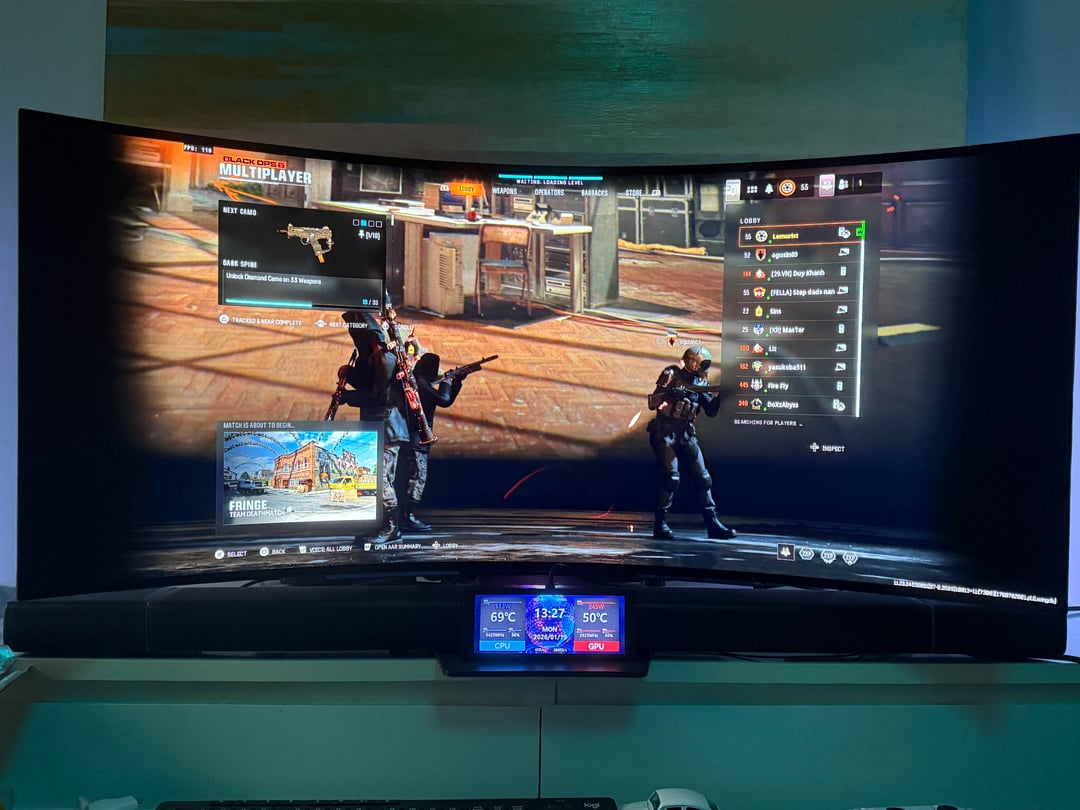

MONITOR LG ultra gear 45 inch OLED 240 Hz 800: R Ultra Wide
KEYBOARD Logitech G515 lightspeed
MOUSE Razer Basilisk V3X
HEADSET Logitech pro X2 light speed
