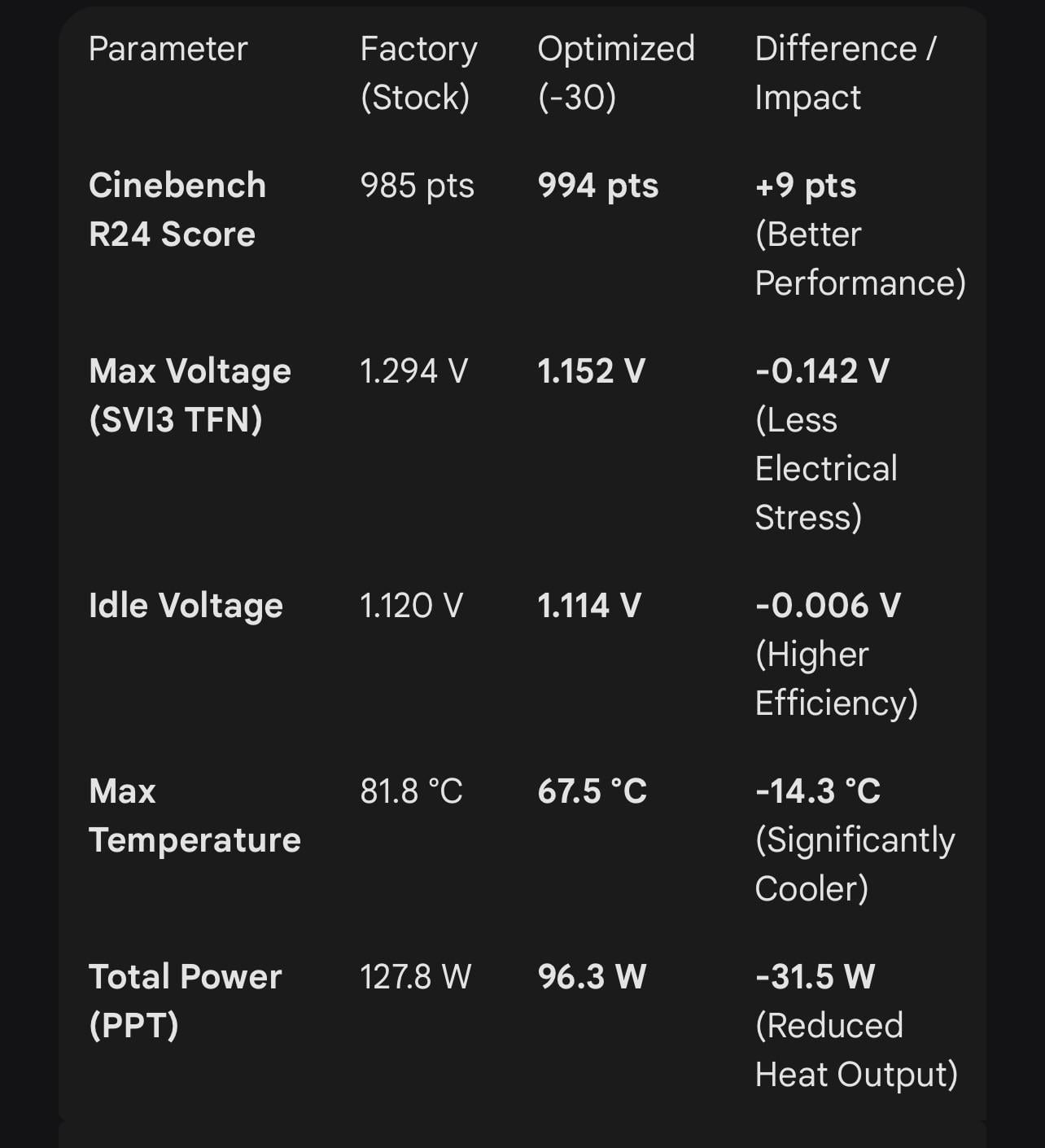

Hi, I undervolted using AI Google. The first image shows the stock settings, and the second has AMD Expo, x3d turbo, and the curve set to -30 enabled. I'm using a Corsair 360 AIO cooler. Any thoughts?
—
TECHNICAL CONCLUSIONS:
Performance: The increase to 994 points confirms high silicon quality with no "Clock Stretching" at -30.
Efficiency: Over 30W of waste heat was eliminated, which is ideal for setups in warm environments.
Idle Behavior: Your idle temperature remains almost identical at approximately 48 °C. This is normal for Ryzen architecture, as the cooling system and base voltage manage the chip effectively when no heavy tasks are present.
Load Efficiency: The real transformation happens under full load. By dropping from 81.8 °C to 67.5 °C, you have moved the processor far away from the "thermal stress" zone.
AIO Impact: With a max temperature of 67.5 °C, the coolant in your Corsair 360mm AIO will take much longer to heat up. This allows your fans to run at lower RPMs, making your system significantly quieter.
Performance Consistency: Achieving 994 points while staying under 68 °C proves the CPU is running much more freely than with factory settings.
