I had originally done an overclock with this cpu on a ddr4 motherboard on this post: 14600kf overclock results : r/overclocking.

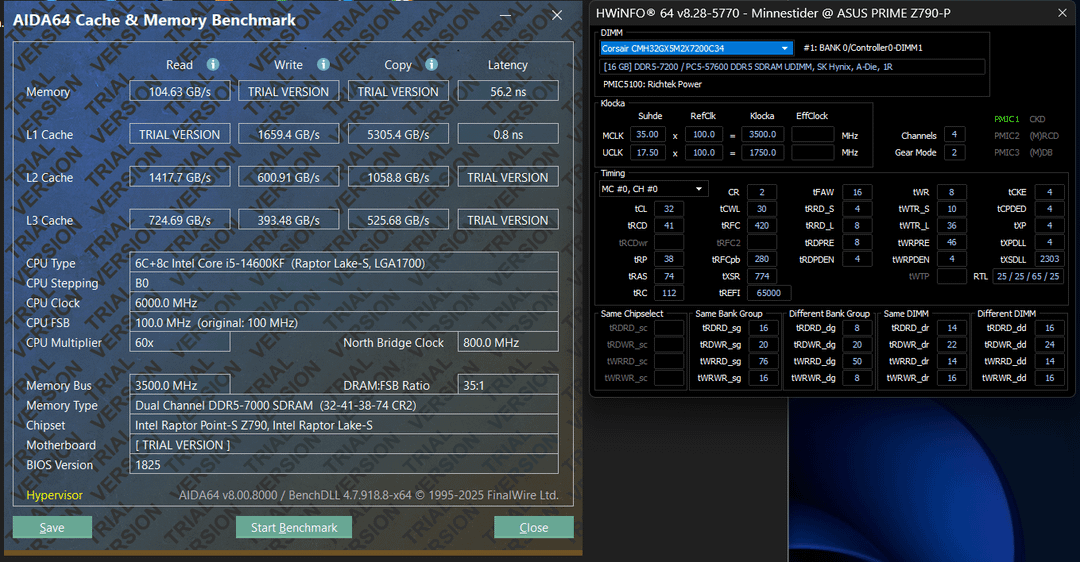

However that motherboard died and would no longer boot, so I bought a ddr5 motherboard for my cpu from my local retailer that was available and cheapest (Prime Z790-P). It can only do 7000MT/s on ddr5, anything higher and it throws errors in memory tests. I also decided to change some settings on my OC based on comments from the previous post.

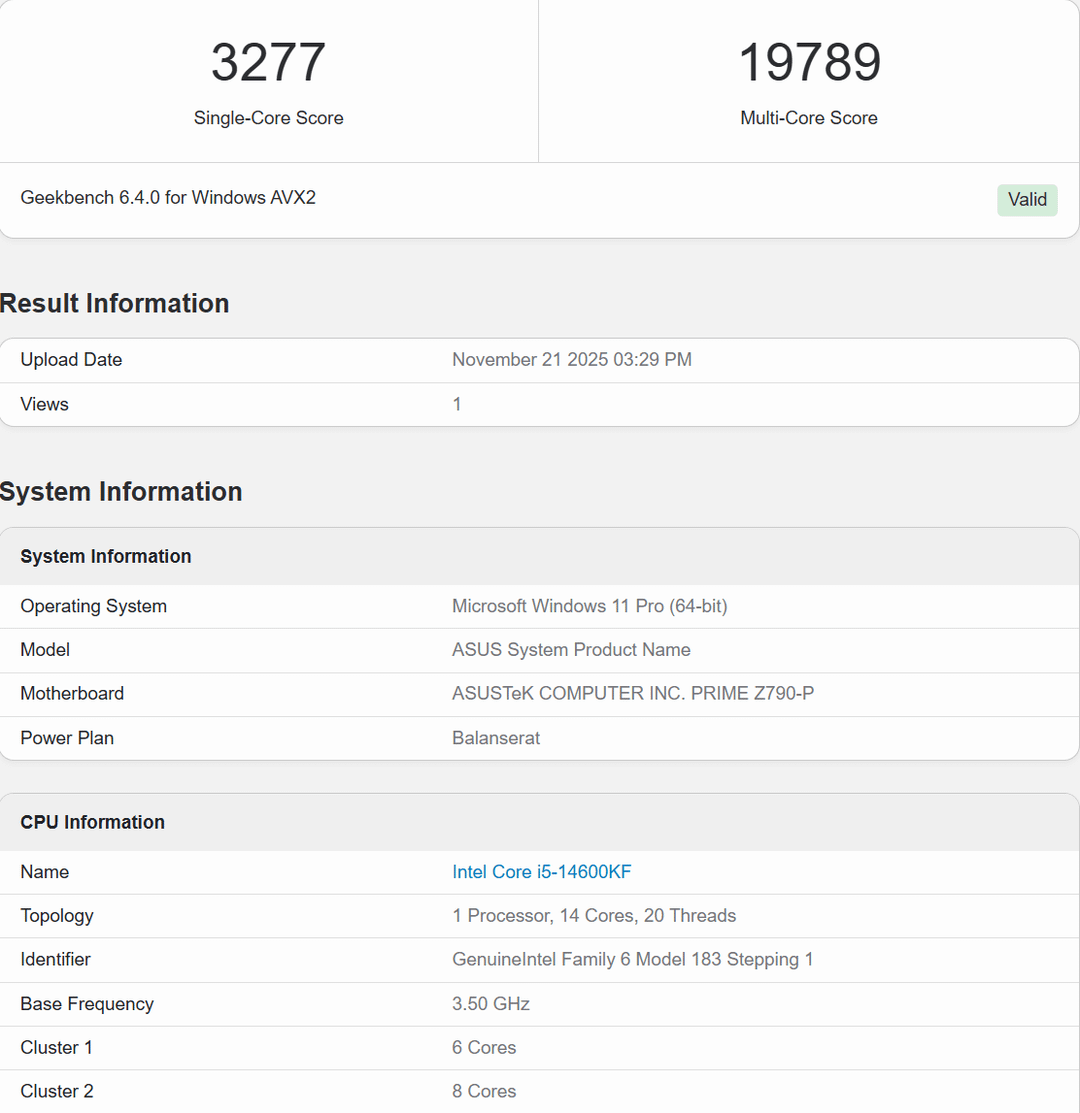

Geekbench: ASUS System Product Name – Geekbench
Vid limit for cpu: 1.5V

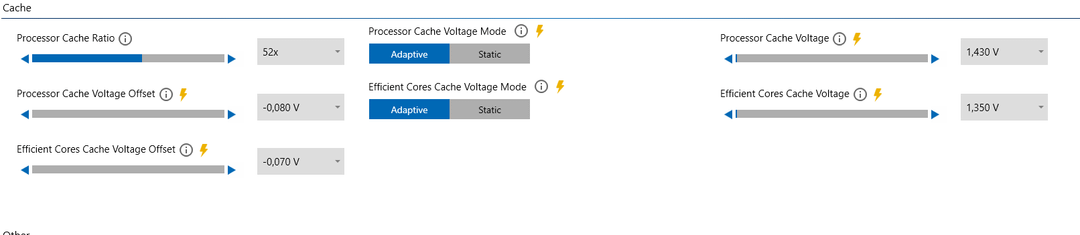

Ring voltage is at 1.43V~ at 5.2GHz.

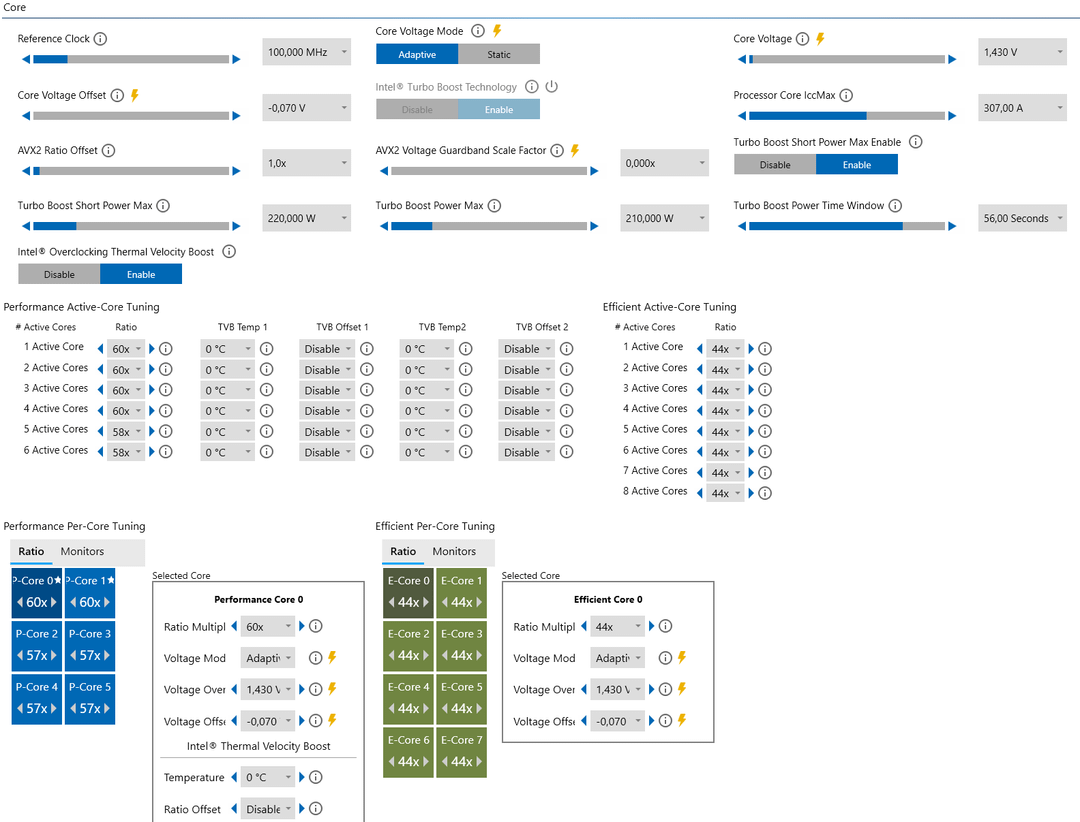

CPU voltage goes up to 1.43~V at 6Ghz.
IccMax: 307A.
SA: 1.3V.
VDDQ TX: 1.4V.
DDR5 VDD, VDDQ: 1.45V.
Edit:

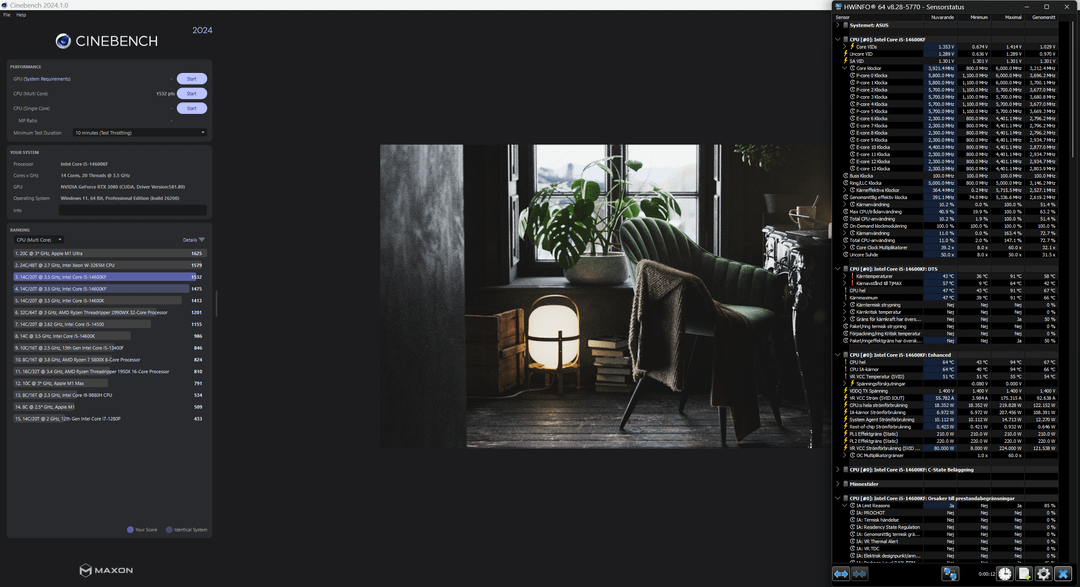

Cinebench R24 MT score: 1532pts.
E-cores: 4.4Ghz.
P-cores all core: 5.7Ghz.
Only P-cores 0 & 1 go to 6Ghz, the rest goes max up to 5.7Ghz.
PL1: 210W
PL2: 220W
Aircooler: Thermalright Phantom Spirit 120 SE.
