So as said i want to overclockcmy I3 6100 Skylake and i dont have a BCLK motherboard (B150M-A)i currently have 3700Mhz BCLK 100Mhz Core Voltage 1.424V and a 37x Ratio
My Ram runs at 2133 Mhz and 1.200V with a capacity of 8192MB

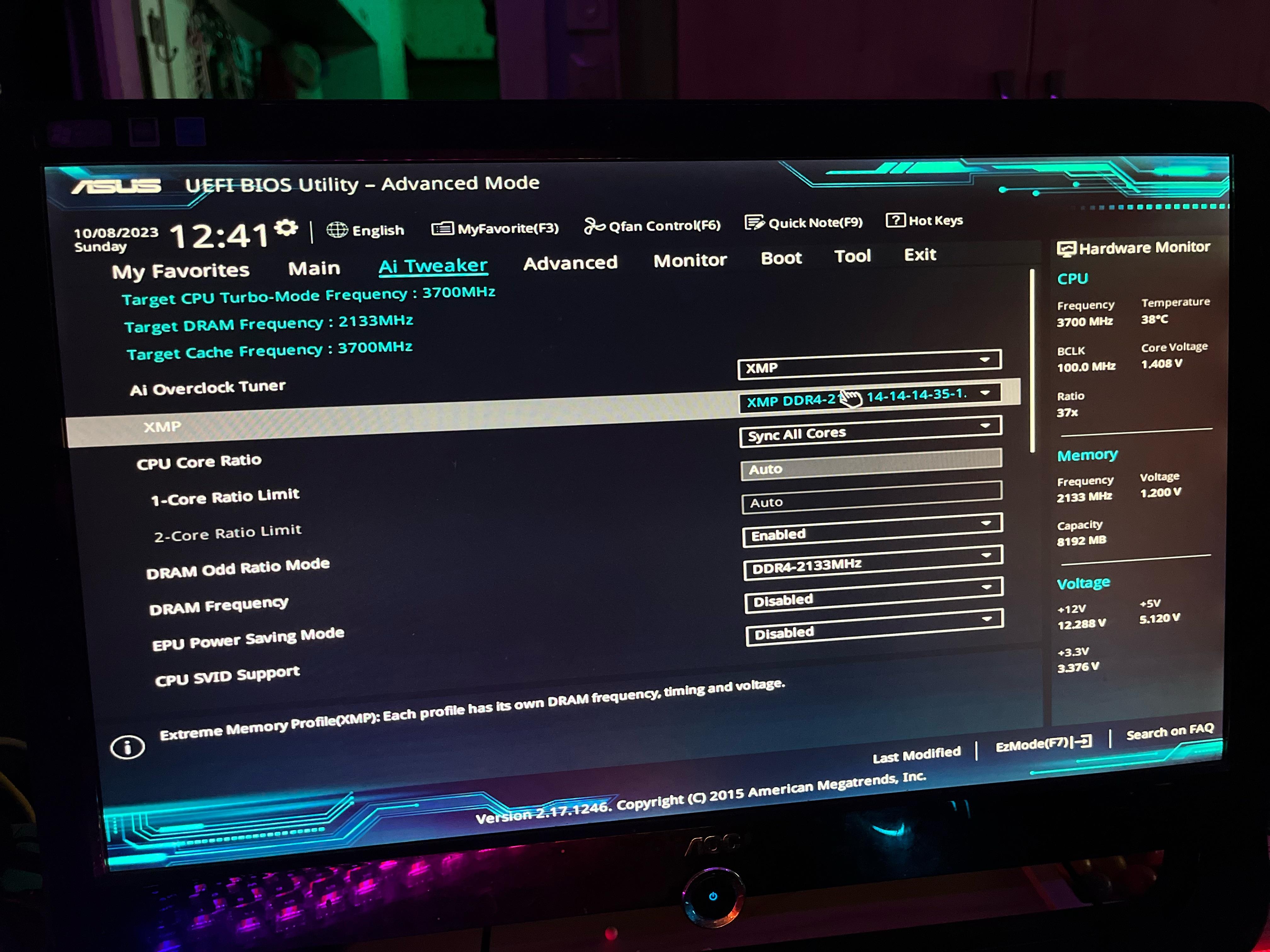

I have XMP on and XMP DDR4-2133 14-14-14-35-1.20V selected my bios is on 0401 and yea It looks like this(Picture at the top)
i had researched a lot and didnt find a solution for some thing like 1-Core ratio Limit
I played a bit with the CPU Core/Cache option and put it on manuel and 1.400
Dram voltage is on auto and Cpu system agent is on 1.10V
In digi+vram is
Cpu Loadline Calibration on Level 7
CPU current capability on 140%
Cpu vram switching Frequency manuel
Fixed cpu vram switching frequencz khz is on 350
cpu power duty control Extreme
Cpu power phase control is powrr phase response
Power phase response is Ultra Fast
Thanks if you reading all this.
