I’ve been tuning my Ryzen 7 9800X3D on an MSI X870-P WiFi with 32GB (2×16GB) TeamGroup T-Create Expert DDR5-6000 CL30-36-36-76 (Hynix A-die), and I think I’m close to the limit. I’d love to hear from others with similar systems.
Current results:

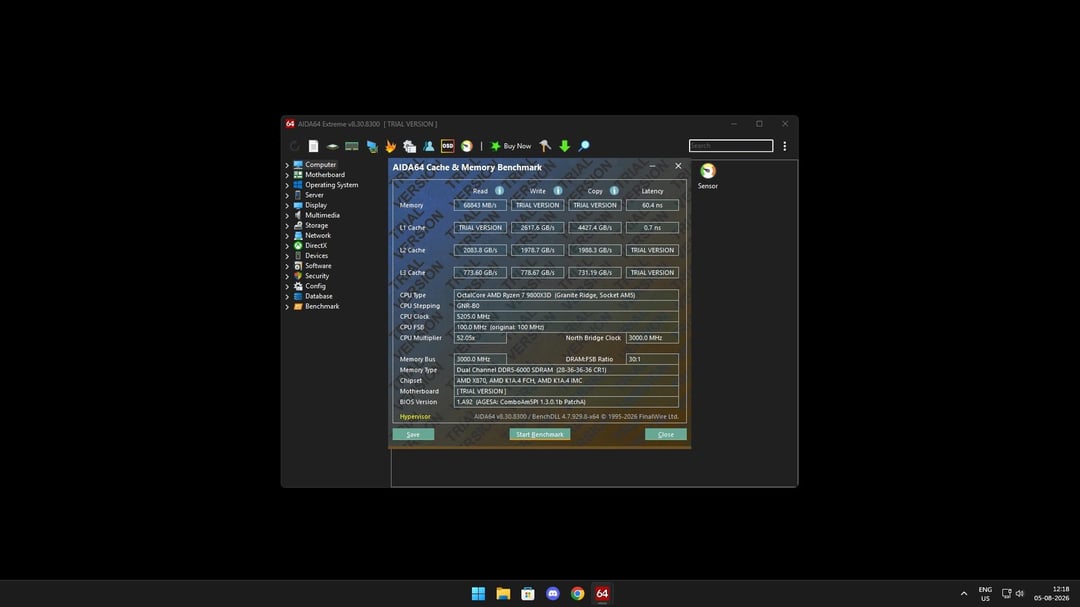

AIDA64 Latency: 60.4 ns
Linpack Xtreme: 484–485 GFLOPS

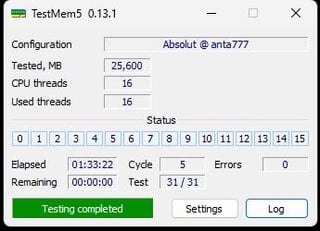

TM5 Absolut (anta777): 5 cycles / 31 tests / 0 errors
No WHEA errors
CPU settings:
PBO: +200 MHz
Curve Optimizer: -40 all cores
CPU temperature limit: 72°C
LLC: Level 8
~135 W under load
Memory settings:
FCLK: 2167 MHz
VSOC: 1.145 V
DRAM VDD: 1.38 V
DRAM VDDQ: 1.38 V
I also tried 2200 FCLK, but it wasn’t TM5 Absolut stable, so I settled on 2167 FCLK.

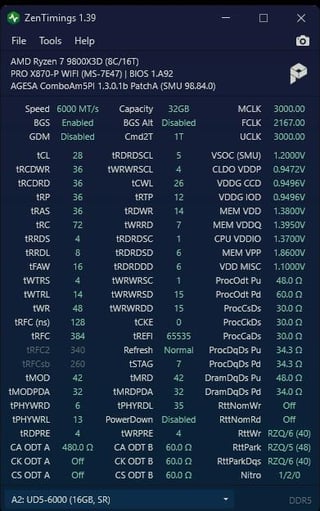

I’ve attached my ZenTimings, AIDA64, and TM5 screenshots.
Question:
Is there anything else worth tuning, or have I basically reached the point of diminishing returns? Any timings or voltages that stand out, or would you leave it as-is for a daily setup?
