Hello! I was wondering if someone could help me locate where the shunts are on the RTX 4000 PRO SFF for shunt modding. I plan to add 10mΩ shunts on top of the (I assume) stock 5mΩ, to go from 70W to 105W max power.
This would pull all from the slot, no extra power connectors. I still have a 3080 I shunted years ago with 100W to the slot and still works fine, https://www.reddit.com/r/overclocking/comments/qjgvxd/shunt\_modded\_tuf\_3080\_added\_8mohm\_on\_every\_shunt/.

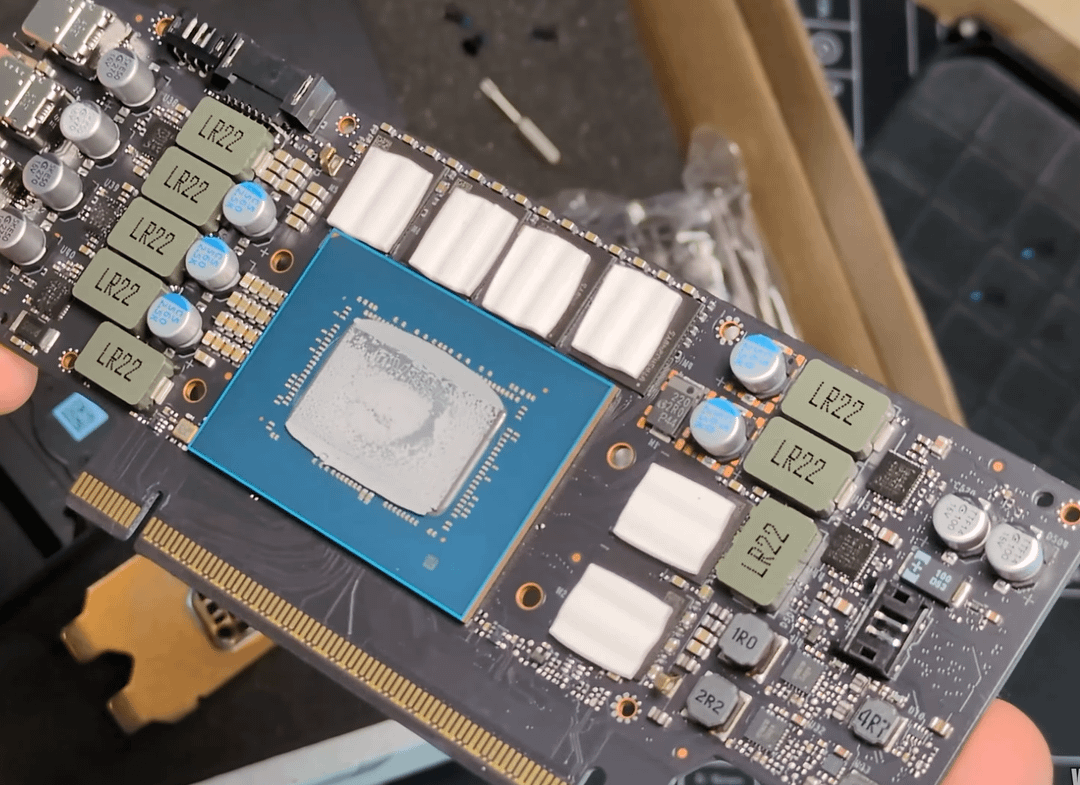

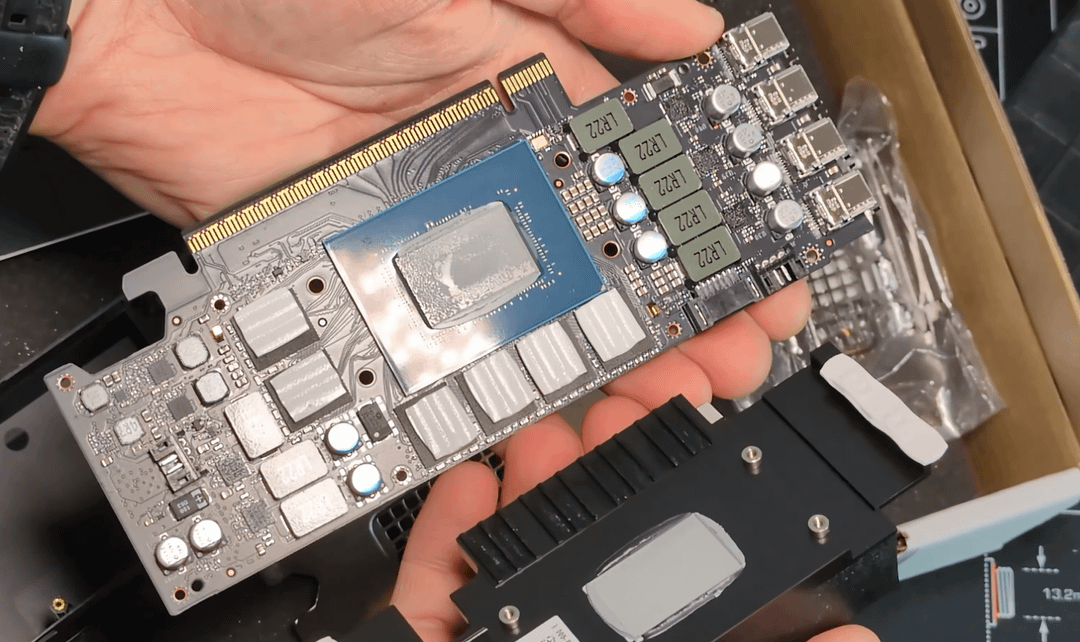

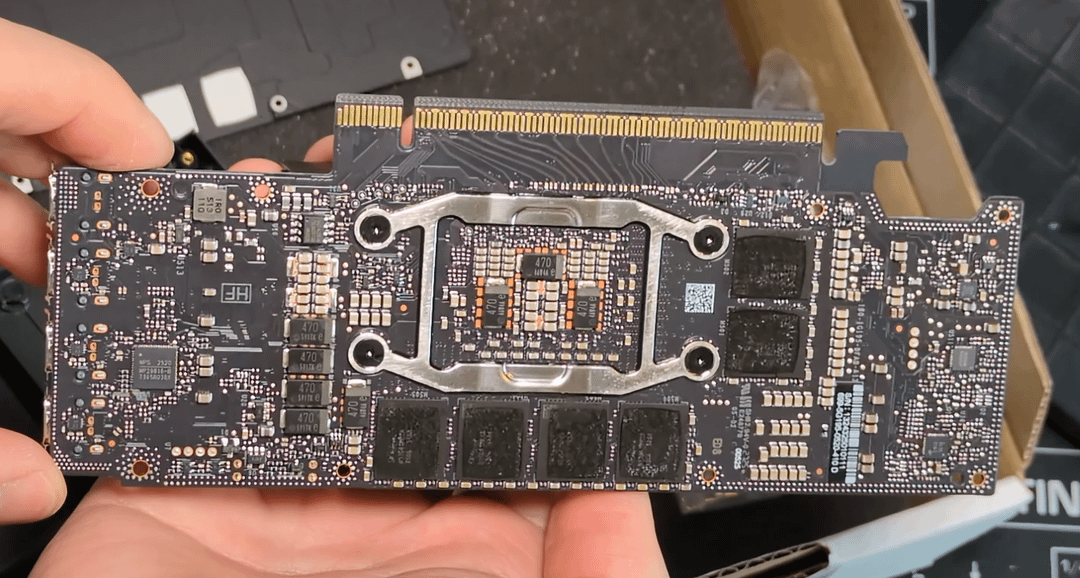

On the front I see one at the bottom left, and on the back I don't particulary see it.
Credits of the images from https://www.youtube.com/watch?v=S6Iv3TrxK9c. I have the card on my PC, but I haven't done much yet besides connecting the fan header to the motherboard with an adapter, to get extra 2-3W.
Also, have someone getting issues by running 100-110W on their PCIe on their cards? Like 3080, 3090, etc.
