My sister's always complained about her PC so I swapped pc's with her for a while in order to OC hers. The GPU has been shunt modded, new thermal paste, has a noctua fan strapped to it due to the old fan starting to die, it also has a custom VBIOS on that a friend made for me as I am very inexperienced when it comes to making VBIOS'. Original model is a gtx 660 palit OC also known as ass.
The CPU was lapped due to a massive curve in the IHS, if I can find the photo I took of it I'll upload it on here, that helped drop the temps by about 10 C, it's kind of a crappy bin because Core 5 is complete and utter dog shit, errors if u go to 4.375 on CCD 0, errors if u go 4.375 CCD 1, errors if u try it at 1.35V so I gave up on that chase, as for single core OC ryzen master doesn't like it for whatever reason and the lowest clocked core will get locked at 3550 on each CCD so that's interesting. The Agesa ver is quite old due to it simply being the best clock speed wise.

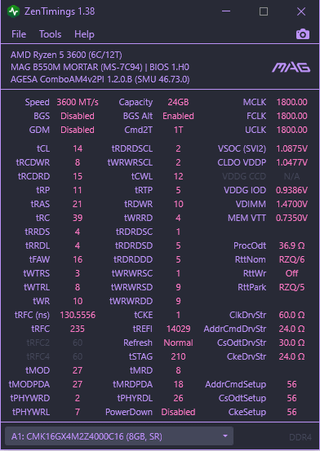

The ram was an interesting one, originally, it was running 3 sticks @ 3600mts but after a power surge (Extremely temperamental electrics in my house) it decided that ClkDrvStr won't be able to boot at 60 ohms anymore (Which was the best) and I felt 3566 at worse timings wasn't great so as she doesn't need 24gb of ram I took a stick out and well this preset now exists, I do however wonder if it would've been able to do more if the power surge had not happened and it could still run 60 ohms but oh well, who knows.
VSOC on this CPU is also really bad at scaling, past 1.15V no difference, nothing can go any tighter so I gave up, I do believe I could lower SOC voltage but that'll be more hours of testing that I cba to do at the moment. VDDG IOD and CCD can go below 1V, I just haven't bothered to test that yet either, I raised them to 1.05 because I was attempting 3800 1:1 but alas, nothing worked.
Ram voltage is quite high because of TRFC although I do believe it will go lower as well, I am again yet to test, I just gave it a relatively high number and went from there because well realistically it can handle it (yes I'm running a ram fan dw).
I think that is pretty much it in terms of what to talk about.

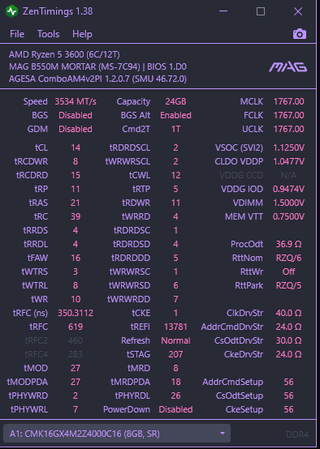

I added the 3 stick presets if u wanted to see, TRFC just didn't set properly when I took the SS it should've been 240 60 60 but yeah just ignore that bit.
EDIT: Forgot to mention, The bus is running so low because I put the M.2 in the wrong slot so it's stealing it's bandwidth atm.

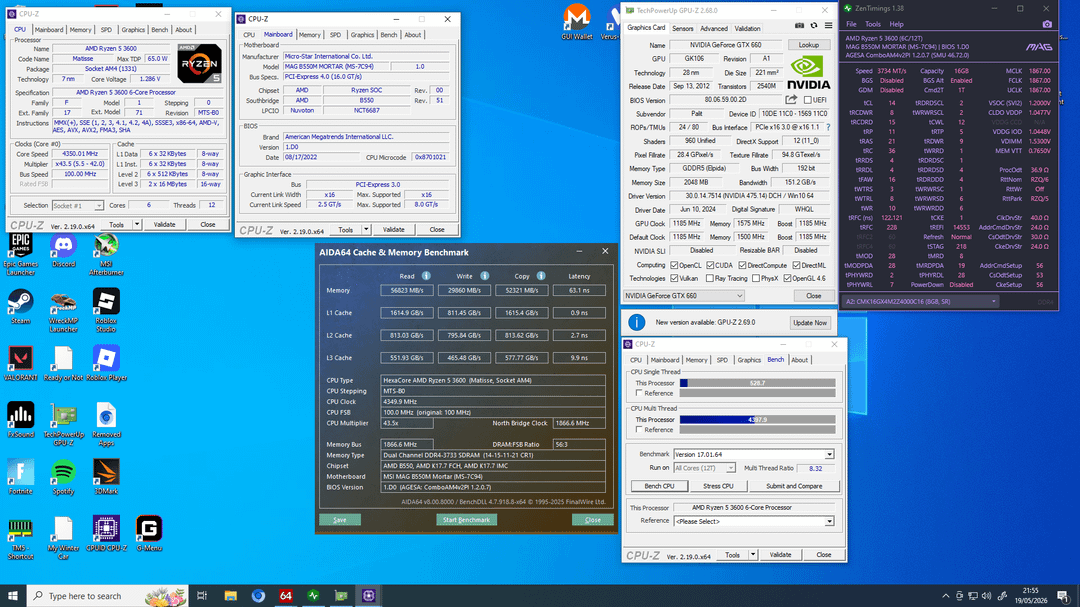

Edit 2: Just realised I left VSOC at 1.2 Lol, should've been 1.15, left from when I was attempting 3800. Also before you ask yes it's stable, did 2 hours VT3, 1 hour TM5 1Usmus I think it was, 1 hour OCCT CPU AVX512 Extreme cycling, 3dmark, furmark and MSI Kombustor for GPU an hour each
