So I was looking at a lot of Dell/Alienware forums and YouTube videos, including some people trying to mine crypto and run local AI on this card. There was a common theme of using thermal pads a bit too thick. So I decided to document what I have found with my Dell 3090. It is possible this is only for my revision of the 3090, which used thermal pads instead of putty.
This PC is a build for my college student-teacher for him to run local AI.
Taking it apart is pretty straightforward since there is no bracket, so I didn't really bother taking pictures of it.
Specs –
CPU: i9 12900KF
RAM: SK Hynix 2x32GB DDR5 4400 MT/s CL36 w/ heat spreaders
GPU: Dell OEM RTX 3090
MB: ASRock B760M PG Riptide
Cooler: Thermalright FC 140mm
Case: Antex Flux M F-LUX
Images –

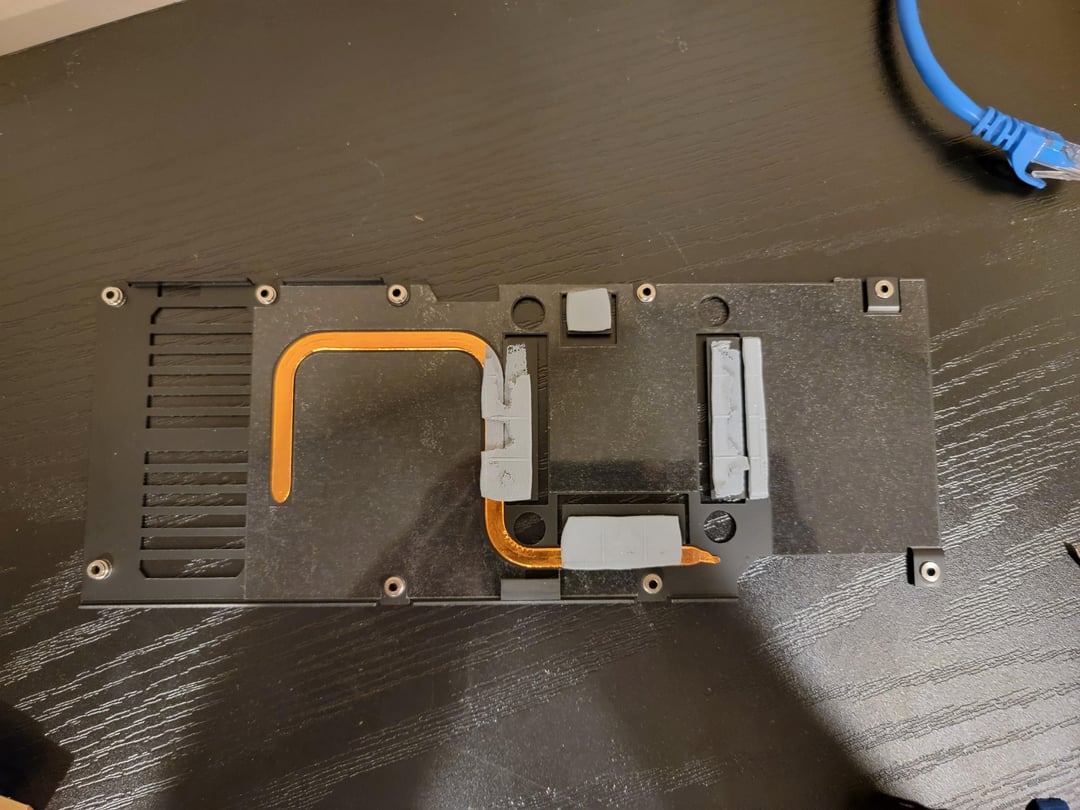

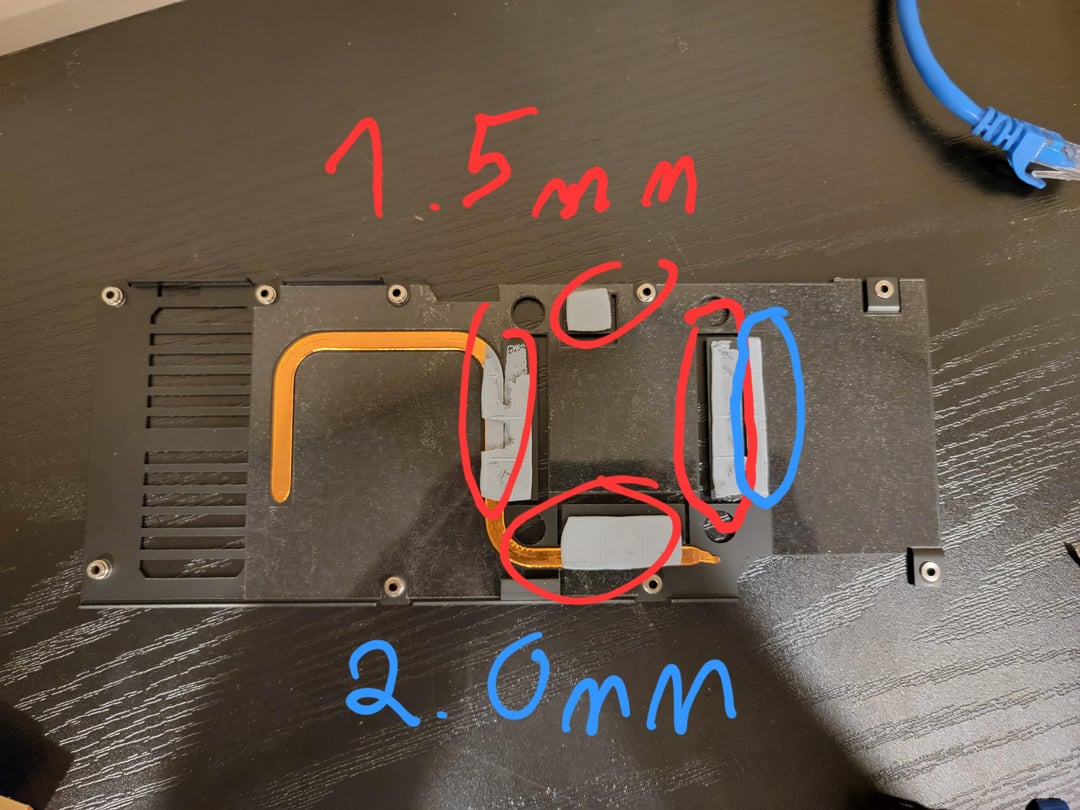

1/2: backplate

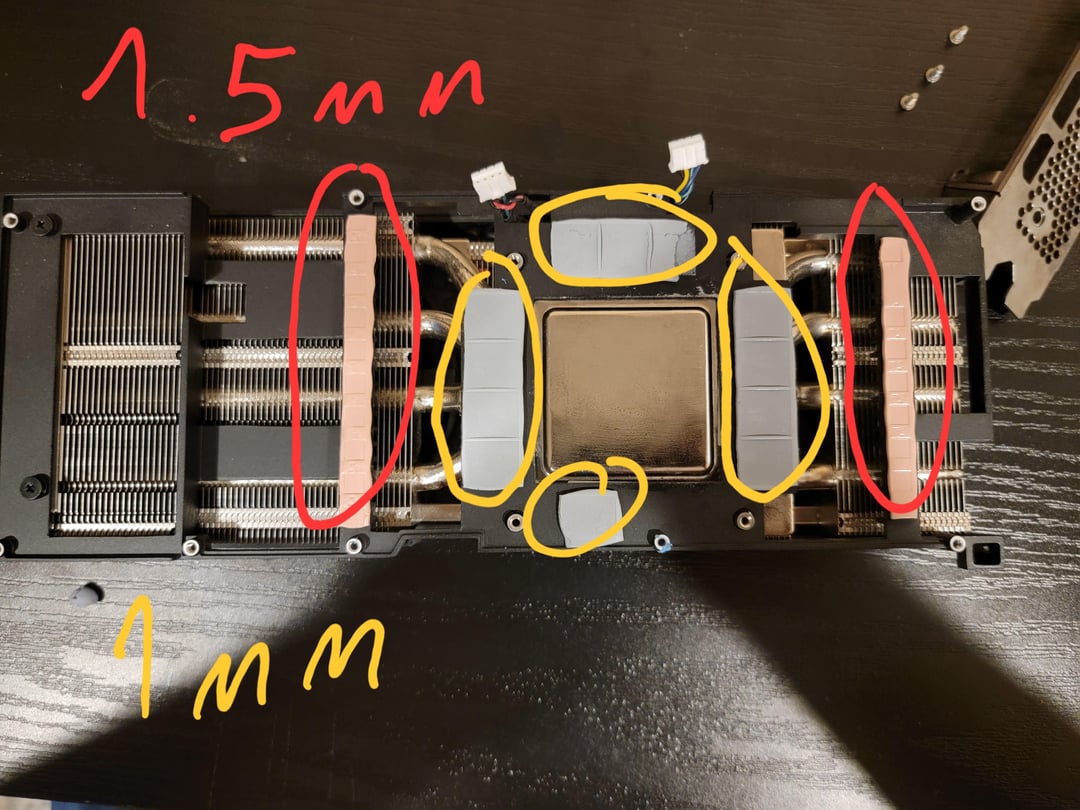

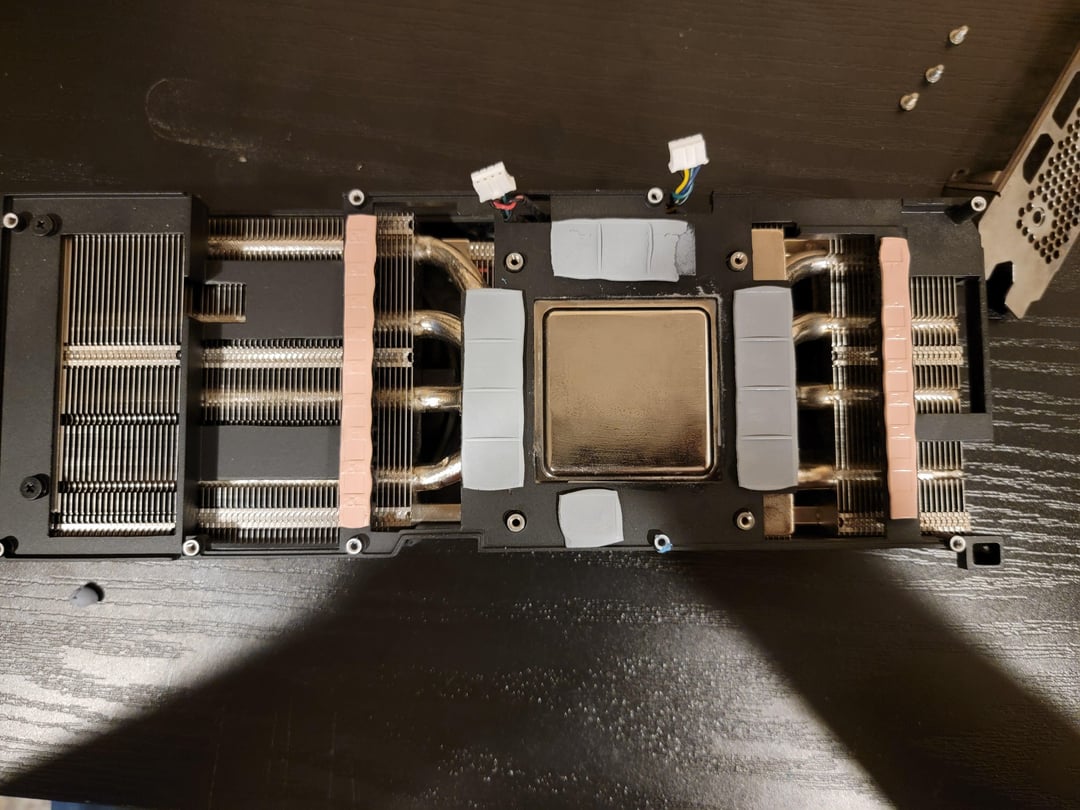

3/4: cooler side

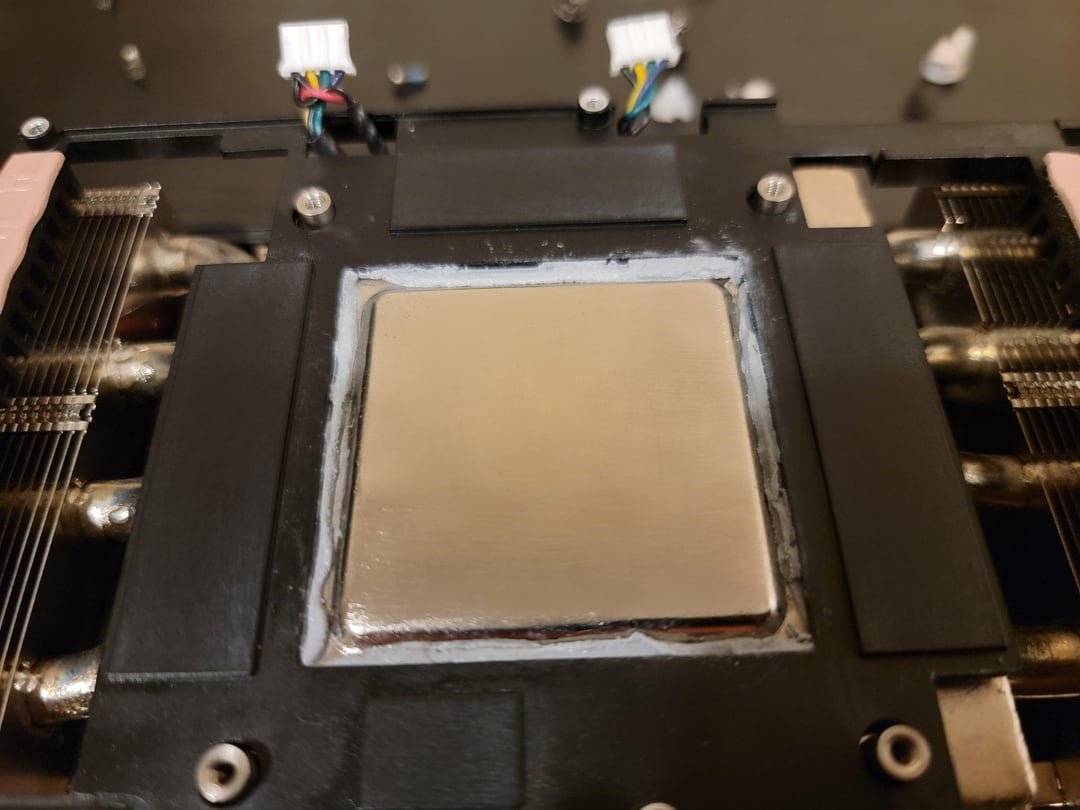

5: You can take off the frame and add thermal putty in between the frame and cooler. This will drastically decrease VRAM temps. I went from 95c down to 80c!

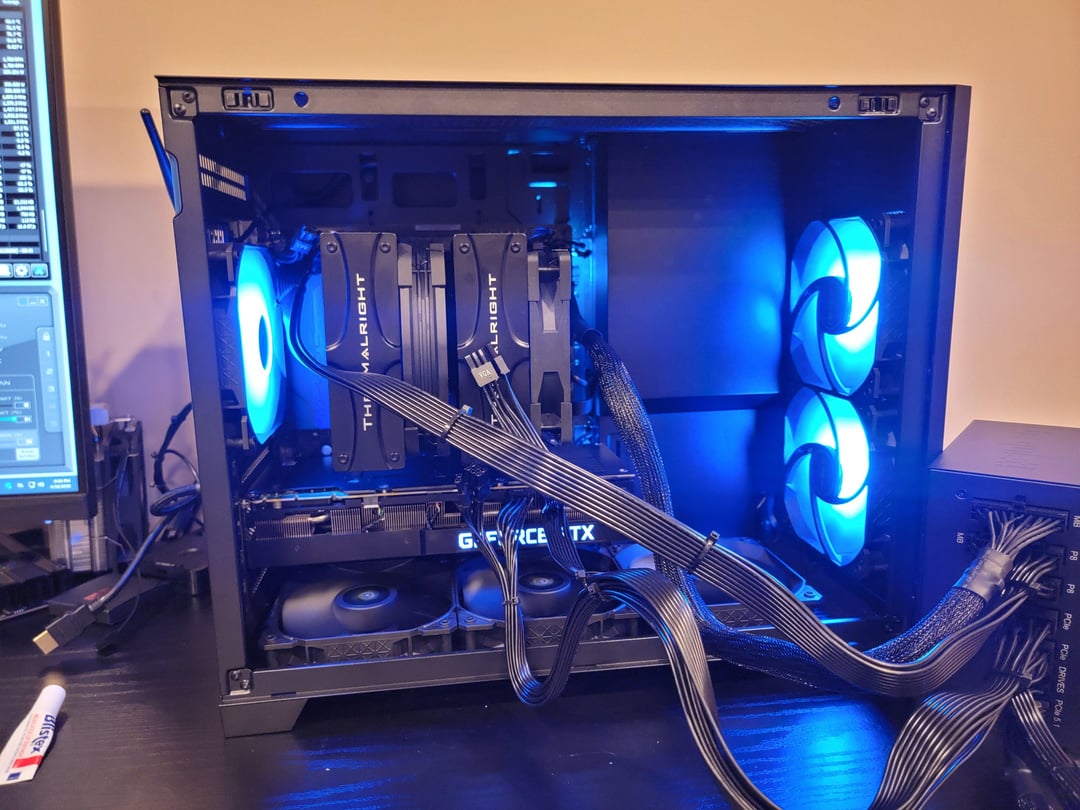

6: The PSU I bought for this build is delayed, so I have to use my test one.

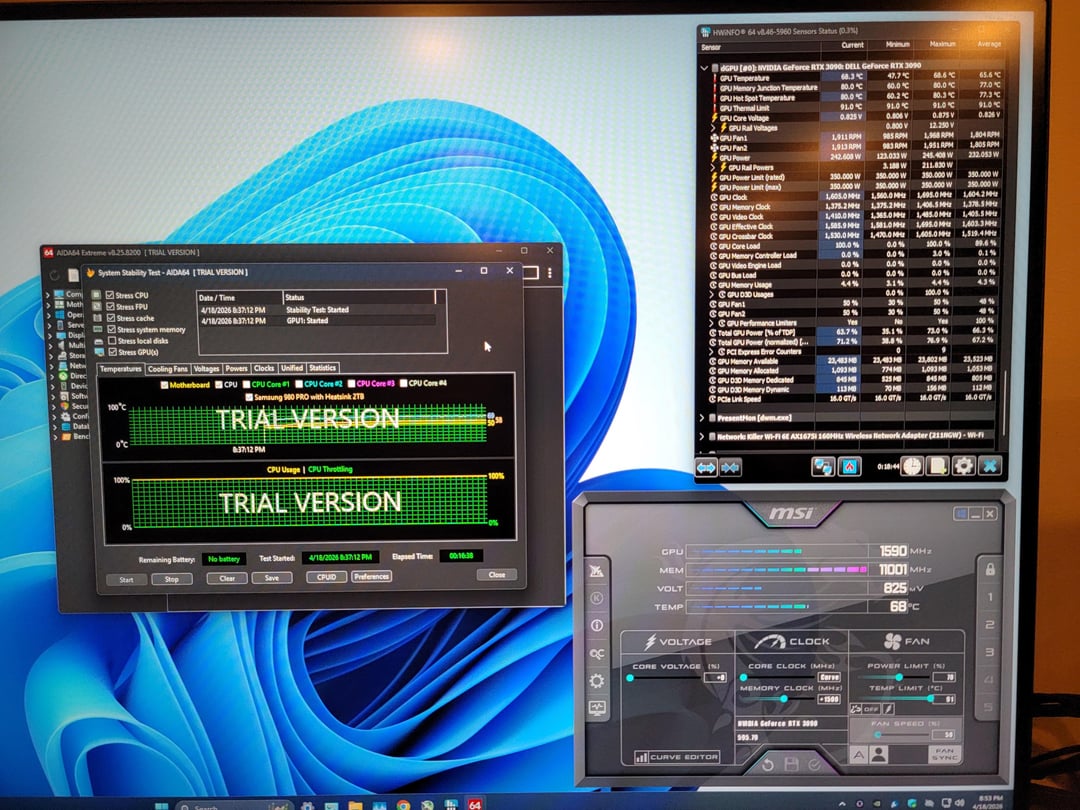

7: Just temp testing.
