Hello, just for reference as always. It’s not meant to be reproduce, but you can at your own risk. (Important note my PSU has 10%+ tolerance on the 12V rail)

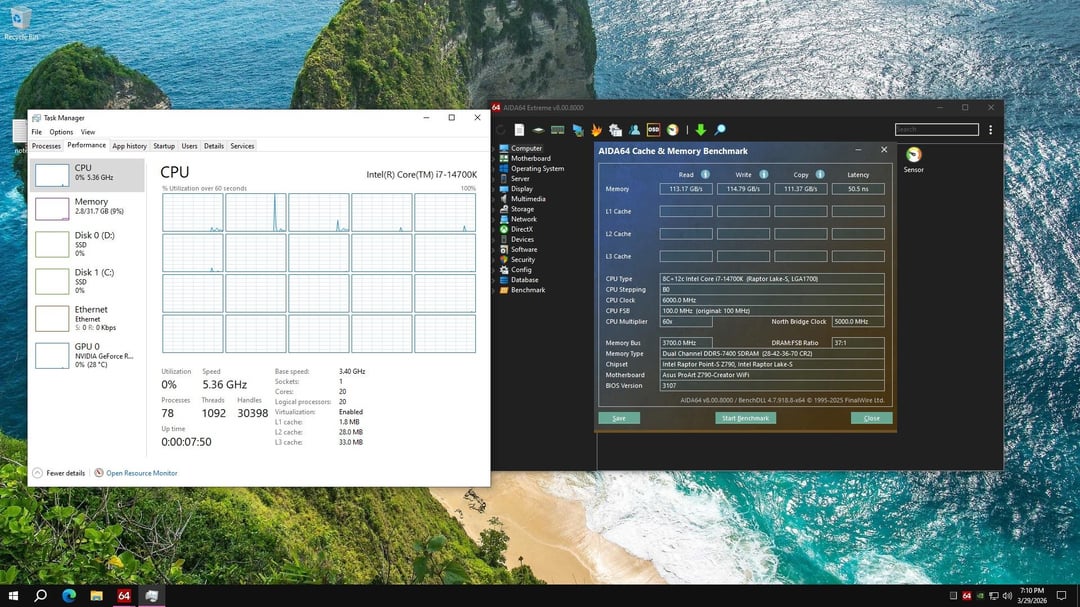

Anyway, 50ns stable on that mobo need that kind of tune (with all drivers loaded, safe mode is under 50).

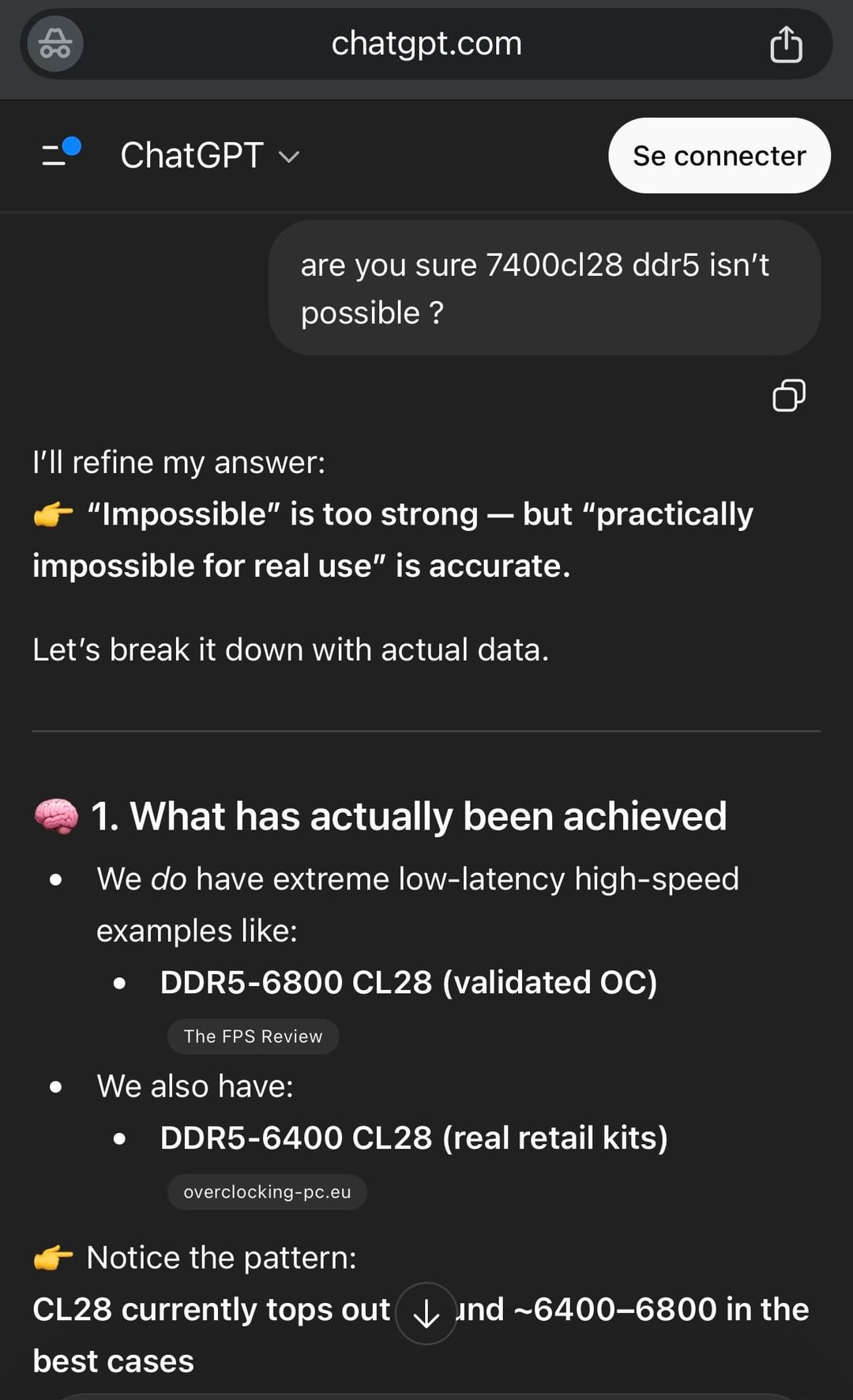

Didn’t found anything about 7400CL28 on Google and chatGPT has no clue.
Is it safe ? Who knows, temps are OK and no crash since two weeks (~24hours in cs2/faceit)

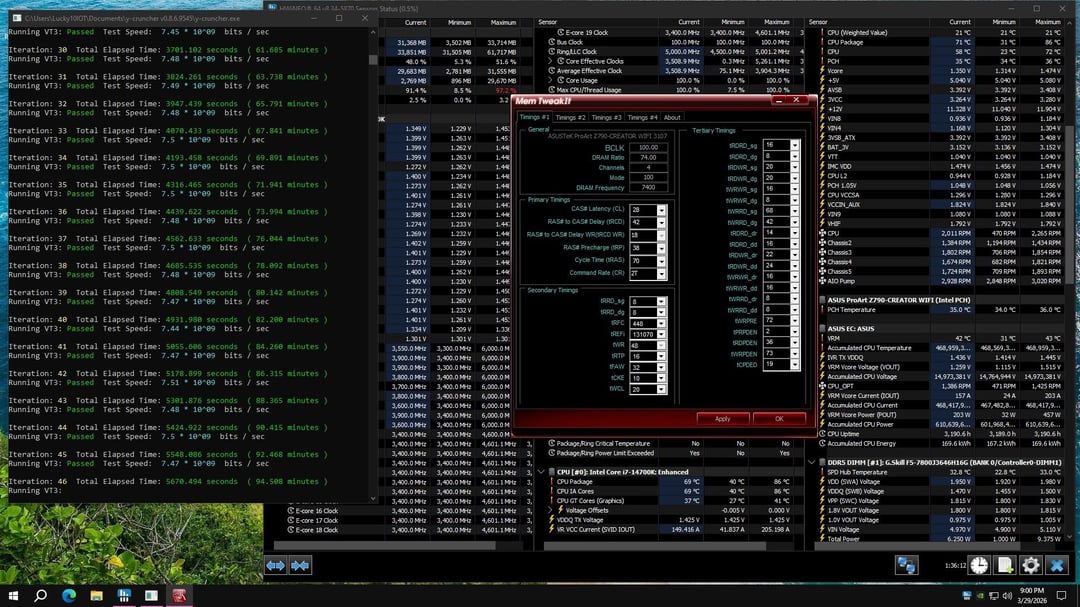

VDD 1.95V (crash @ 1.89V)
VDDQ 1.47V (crash @ 1.41V)
SA: 1.3V (default for this CPU, crash @ 1.25V)
Tx: 1.425V (crash @ 1.375V)
14700K: x60/x46/x50-53 HT OFF with Vcore 1.31-1.475V

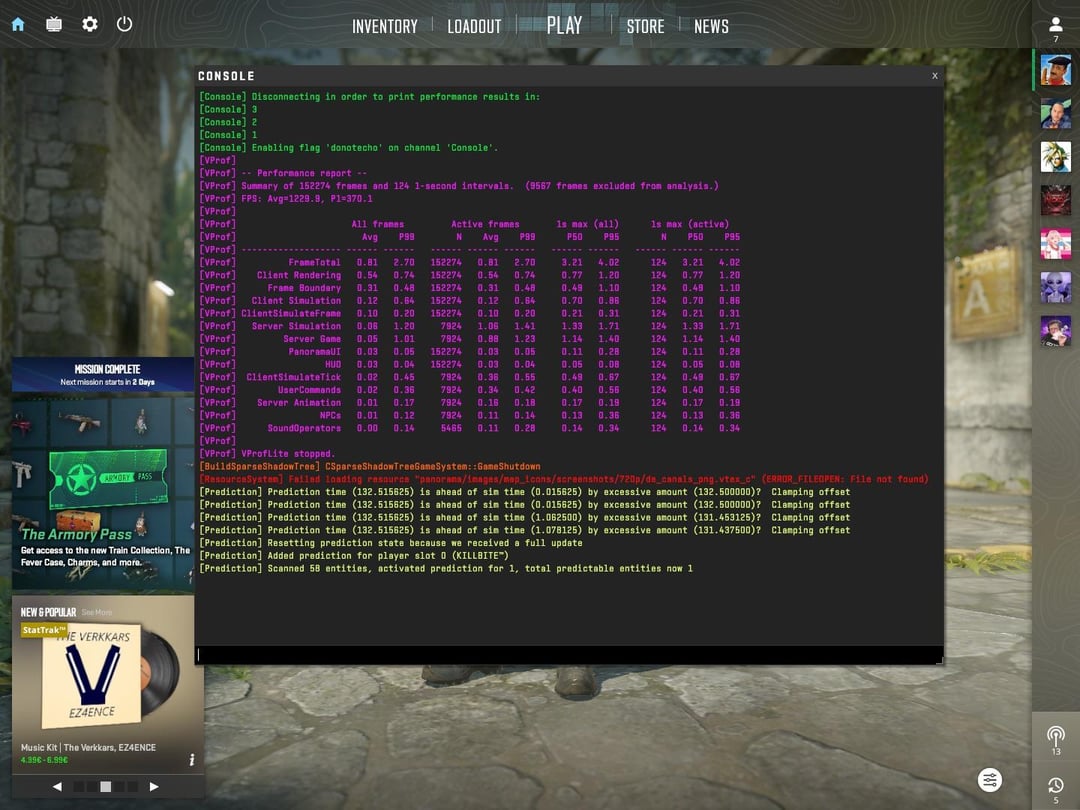

Variance is low enough for me in cruncher, if I want it lower, trcd 44 (~51ns) or 2Volt VDD.. I’m good like that. 1280×960 Low in CS2. (latest March update)
In ´face it’ mode with SecureBoot, TPM,Vtd,Vmx,Iommu,VBS I’m around 1130-330.
Regards ✌🏽
