Hi, I’d like to ask for some help or suggestions regarding my RAM:
Serial Number: CMH32GX4M2K4000C18
Basically, I want to tune it for the lowest possible latency it can handle, as long as consistency and stability are maintained as the top priority.
With a bit of help from ChatGPT, I’ve managed to reach the current values, but I’d really like to hear the opinion of a more experienced community.
I’ve uploaded screenshots — 2 for each config and one from AIDA. Each image includes a descriptive caption.

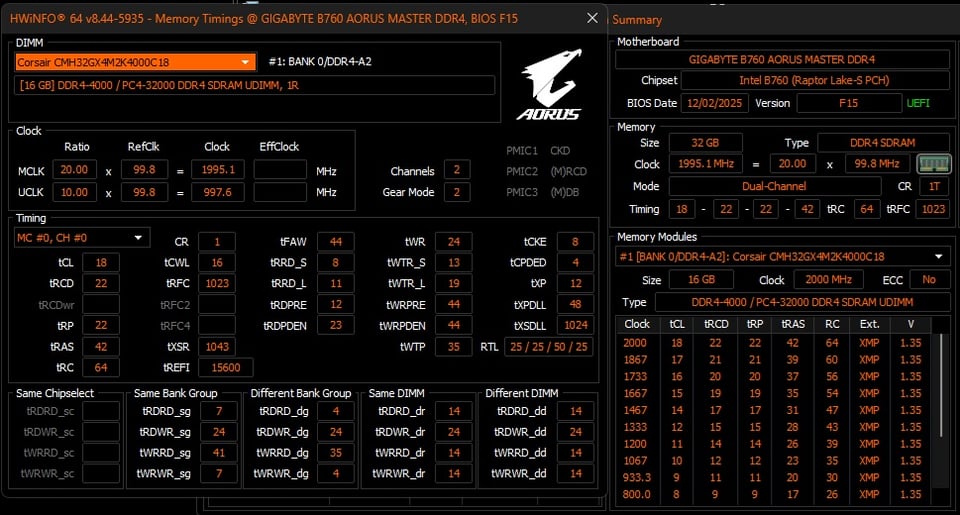

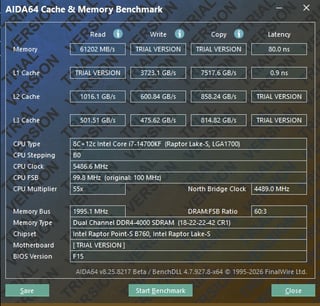

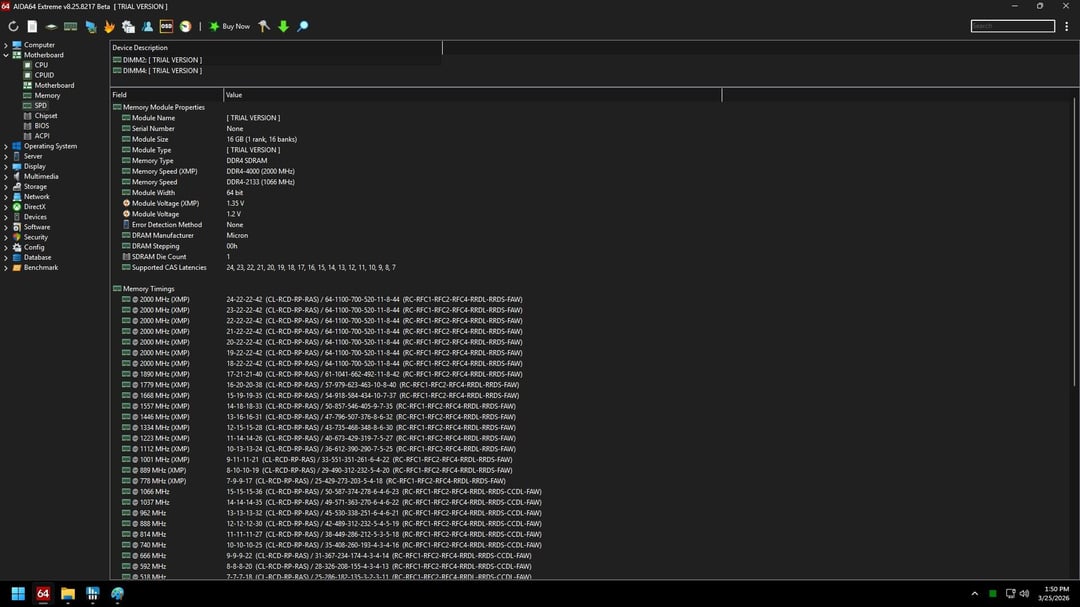

-1,2 and 3 show the OG XMP

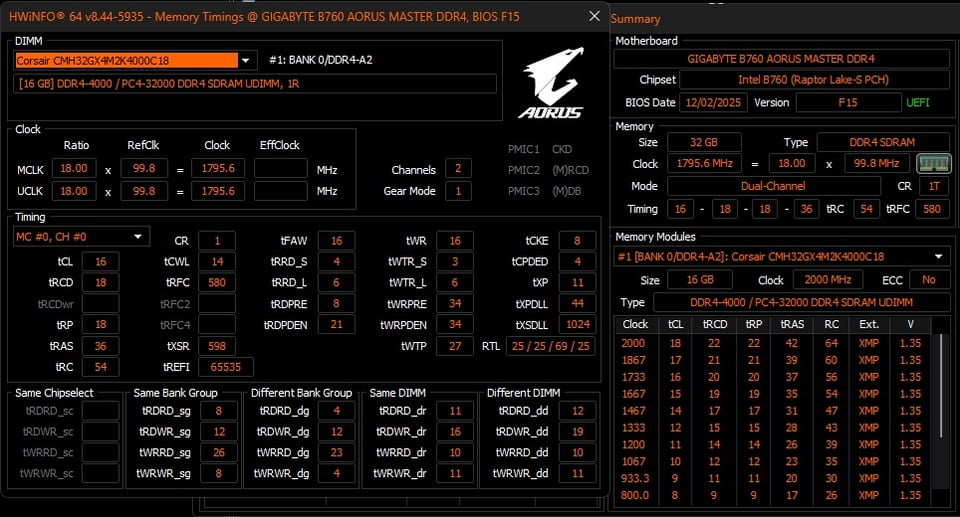

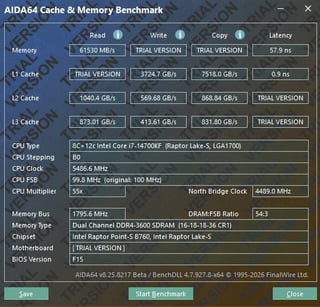

-4 and 5 Show the custom 3600mt/s profile
If we focus on the 3600 config, I’d like to know if it can be tightened further, or if there’s anything wrong that should be corrected, like values outside a proper operating range.
The chips are Micron, but I haven’t been able to identify the exact die. The software I used doesn’t seem to read my SMBus properly.
